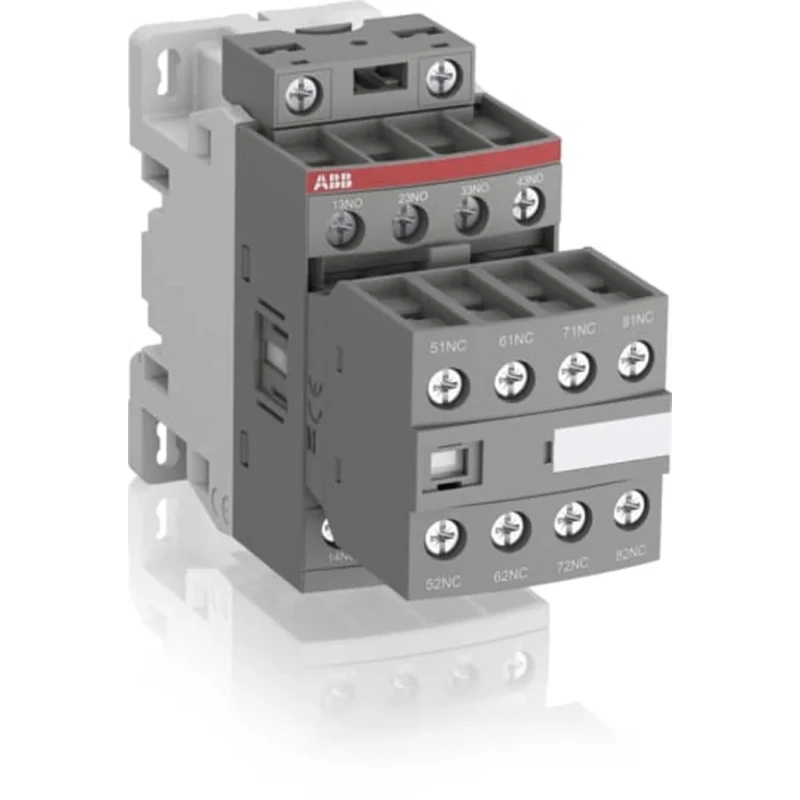

ABB NFZ80E-20 Contactor Relay, 12V dc Coil Voltage, 8 Poles, 6A Contact Current, 140W Power Rating, DIN Rail Mount NFZ80E-20



Category Contactors & Relays Brand ABB Condition New

Specifications

Country of Origin	France
Brand	ABB
Function	Contactor Relay
Length	110.5mm
Model	NFZ80E-20
Depth	110.5mm
Width	45mm
Mount Type	DIN Rail
Series	NFZ80E-20
Power Rating	140W
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	8
Contact Voltage	690V
Coil Voltage	12, 20V dc
Normal State Configuration	8 NO
Contact Current	6A
Number of Auxiliary Contacts	8
Auxiliary Contact Configuration	8 NO
Operational Current Ie	16A
Control Circuit Voltage Uc	20V dc
Contactor Application	Contactor Relay
Pole and Throw Configuration	8

Key Features

Operates with 12V and 20V DC coil voltage for versatile control.
Features compact DIN rail mount design measuring 110.5mm x 45mm x 110.5mm.
Equipped with 8 normally open auxiliary contacts to enhance switching options.
Supports a maximum operational current of 16A and contact voltage up to 690V.
Operates reliably within a temperature range of -40°C to +70°C.
Meets IEC 60947-5-1, EN 60947-5-1, CSA C22.2 No.14, and UL 508 standards.
Enhanced surge protection to prevent voltage spikes during operation.
Designed for industrial, automation, and control gear applications.

Product Description

ABB NFZ80E-20 contactor relay is a robust and reliable device engineered for auxiliary and control circuit switching in demanding industrial environments. With a coil voltage range of 12V and 20V DC and an operational contact current rating of 6A, it offers flexibility and high performance for control and automation applications.

This model features a compact design suitable for DIN rail mounting, measuring 110.5mm in length, 45mm in width, and 110.5mm in depth, making it ideal for efficient space management in control panels. The relay includes 8 normally open auxiliary contacts, providing expanded control capabilities with minimal coil power consumption, contributing to energy efficiency.

Built to operate reliably between -40°C and +70°C, the NFZ80E-20 ensures stable function in extreme temperature conditions. The device is compliant with international standards IEC 60947-5-1, EN 60947-5-1, CSA C22.2 No.14, and UL 508, guaranteeing quality and safety. It withstands mechanical vibrations and shocks, enhancing durability in industrial settings.

Compact DIN rail mount design for easy installation. 8 poles with 6A contact current rating and 690V contact voltage. Supports a control circuit voltage of 20V DC. Enhanced surge protection to handle voltage spikes. Wide ambient temperature range from -40°C to 70°C.

Compliant with IEC, EN, CSA, and UL standards. Suitable for high-frequency switching and automation systems. Auxiliary contacts provide versatile control options.

This contactor relay is commonly used in industrial automation, PLC integration, manufacturing control systems, and other heavy-duty electrical control applications requiring reliable switching and control performance.
