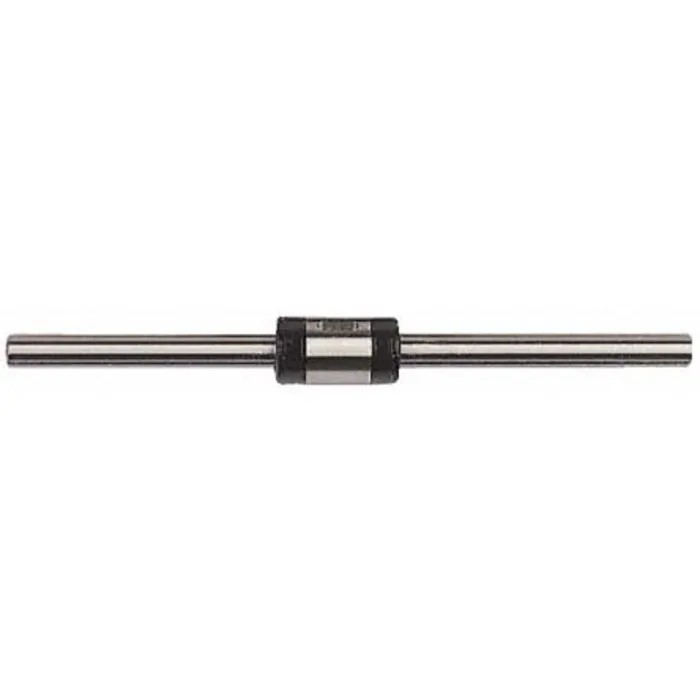

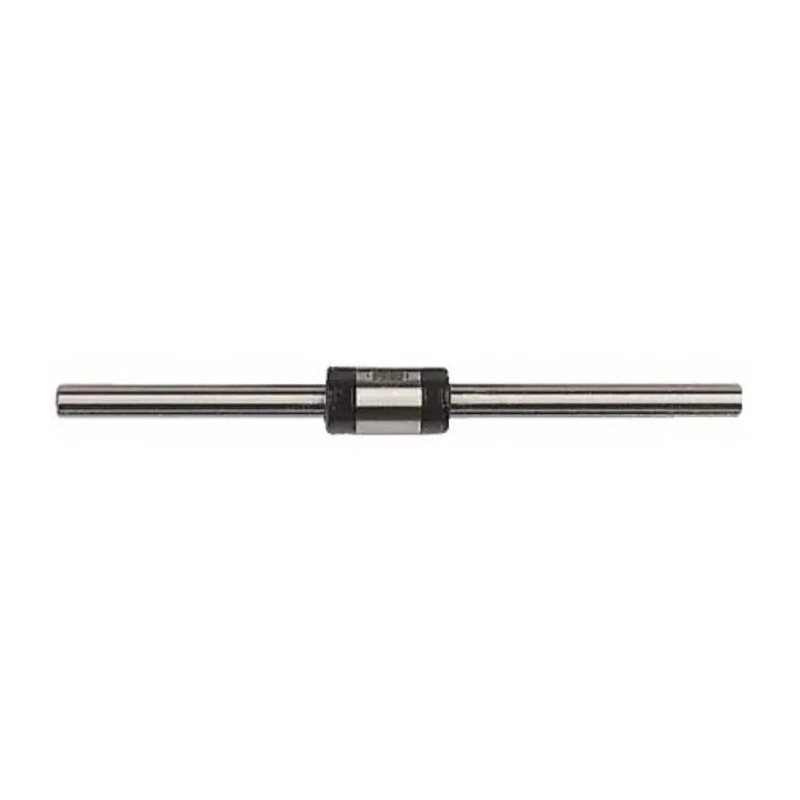

IKO Nippon Thompson Ball Spline Assembly 5 mm Shaft Diameter 100 mm Shaft Length LSAG5C1R100

IKO Nippon Thompson LSAG5C1R100 Ball Spline Assembly is designed with a 5 mm shaft diameter and a 100 mm shaft length, providing compact linear motion solutions for demanding mechanical power transmission systems.

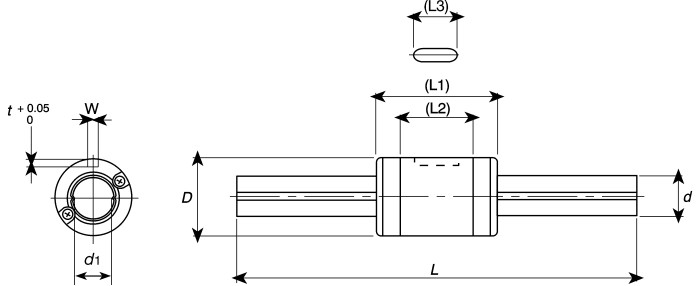

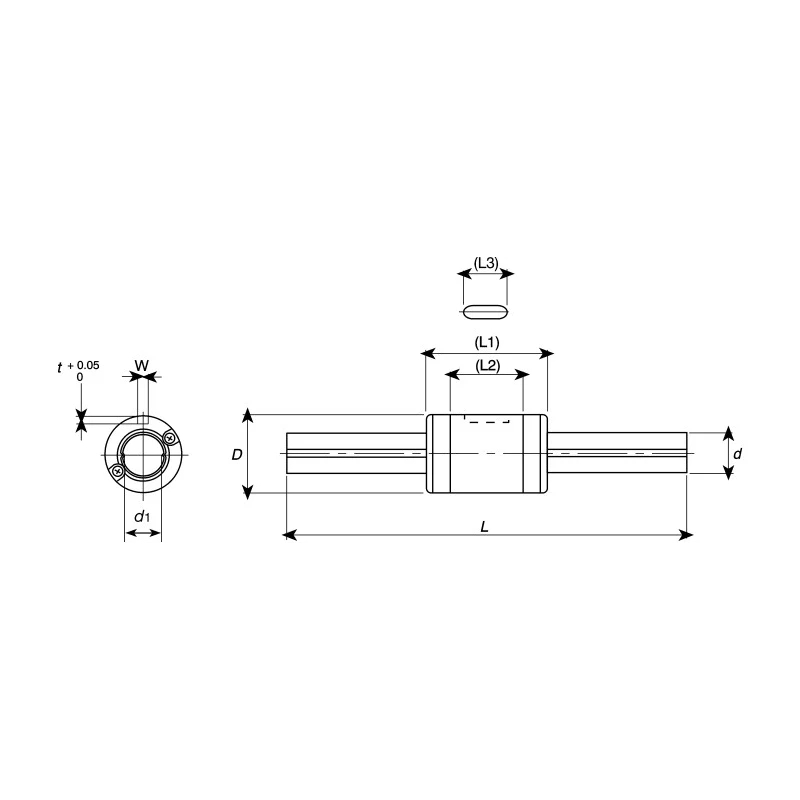

This assembly consists of a splined shaft paired with an external cylinder and features two rows of raceways with recirculating balls arranged in a 4-point contact configuration, delivering high rigidity and smooth operation with minimal frictional losses.

With a static torque rating of 1.9 Nm, dynamic torque rating of 1.8 Nm, dynamic load rating of 587 N, and static load rating of 641 N, this ball spline assembly supports high load capacities, ensuring efficient and stable performance in industrial machinery.

Its compact size enables easy integration into a variety of manufacturing, automation, and mechanical systems requiring precise positioning and smooth linear motion. Manufactured in Japan, the LSAG5C1R100 complies with stringent quality standards, though there are no specific approvals or certifications associated.

Consists of a splined shaft and external cylinder for high rigidity. Two rows of raceways with recirculating balls for low friction and smooth movement. High load rating ensures robust performance. Stable operating accuracy for precise positioning.

Compact and efficient construction saves space in assemblies. Ideal for applications demanding smooth linear motion. Manufactured in Japan for quality assurance.

This ball spline assembly is suitable for use across industrial, manufacturing, mechanical power transmission, and automation sectors. Browse the IKO Nippon Thompson range and related Mechanical Power Transmission components at EnvMart for enhanced sourcing efficiency.
