Omron PCB Signal Relay 24V DC 2A DPDT G5V-2 DC24, 500mW Coil, Gold Plated Contacts

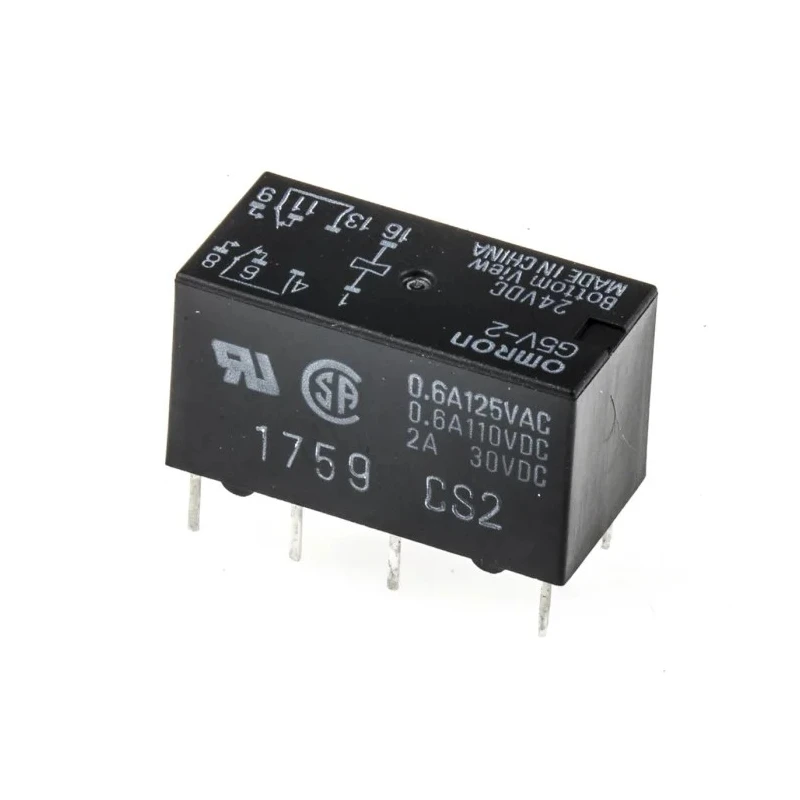

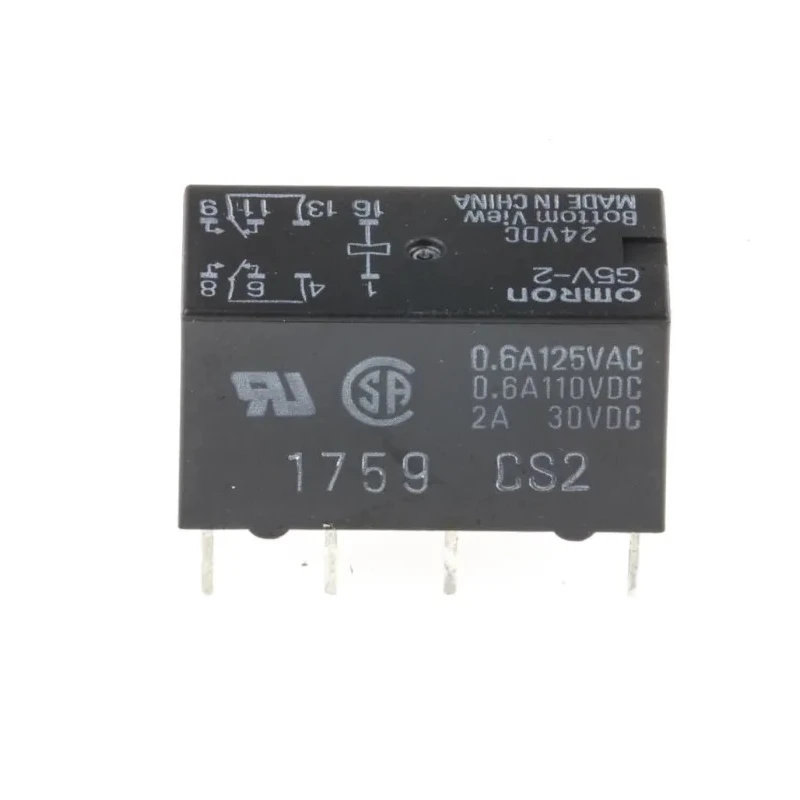

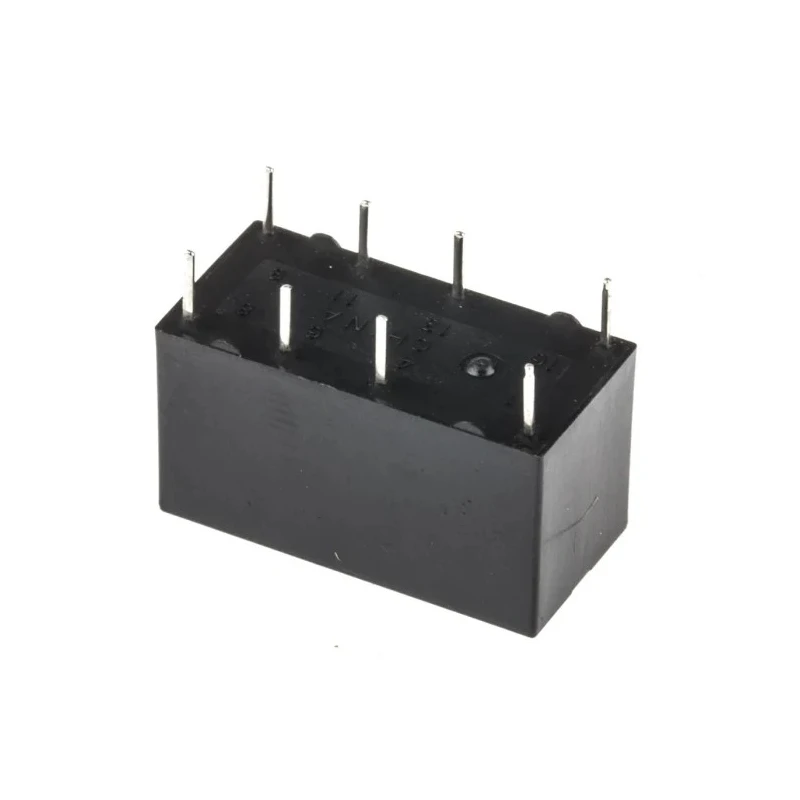

The Omron G5V-2 DC24 is an ultra-miniature PCB Signal Relay engineered for precise signal switching in a variety of electronic and industrial applications. This relay features a 24V DC coil voltage and a double pole double throw (DPDT) contact configuration, supporting a maximum switching current of 2A at both AC and DC rated voltages. Its gold-plated contacts ensure exceptionally low contact resistance and high reliability, making it suitable for handling low-level and high-level signals alike.

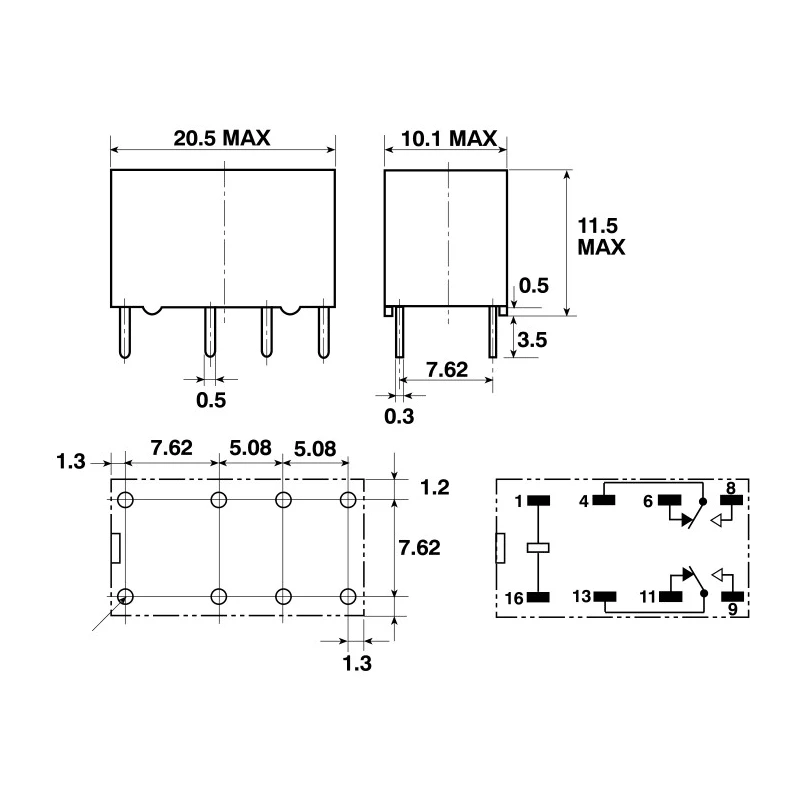

Compact in size, with dimensions of just 20.2mm (length), 10mm (width), and 11.5mm (height), the G5V-2 DC24 relay is ideal for PCB designs where space is limited but performance is critical. Its coil resistance is precisely 1500 Ohms and requires a nominal coil power of 500mW, ensuring energy efficiency without compromising actuation speed or holding capability. This relay is entirely sealed to protect against environmental contaminants such as dust, moisture, and chemical vapors, allowing for reliable operation even under harsh conditions or after immersion cleaning processes.

Designed for industrial robustness, the relay tolerates vibration frequencies from 10 to 55 Hz with a 0.75mm single amplitude, and it withstands shock up to 1000 m/s² (destruction) and 200 m/s² (malfunction). It functions effectively within a broad operating temperature range of -25°C to 70°C, rendering it a fitting choice for telecom equipment, security devices, and other precision electronic signal switching contexts.

The DPDT contact configuration allows independent switching of two circuits, facilitating diverse control schemes and signal routing. The solder terminal design ensures a stable and long-lasting connection to PCB assemblies, and the relay's gold-clad contacts enhance arc resistance and promote extended contact cycle life.

Key features further include excellent dielectric strength - capable of withstanding 1000V AC (between coil and contacts) for one minute and 750V AC (between contacts of same polarity) - providing robust insulation and operational safety. The relay maintains functionality with permissible loads as low as 0.1 mA at 10V DC up to its maximum switching performance, adapting well to both sensitive and power signal applications.

Engineers will value this relay for its compliance with RoHS standards, suitability for immersion cleaning, and conformance to important telecom standards such as BT Type 47 and BT Spec 4597. Its miniature size does not compromise on efficiency or reliability, ensuring seamless integration into high-density electronic circuits.

Typical use cases for the Omron G5V-2 DC24 relay include signal routing in telecommunication systems, activation controls in security panels, and precise switching in automated instrumentation. The relay also finds application in test and measurement equipment and in industrial automation tasks requiring dependable, long-life signal switching.
