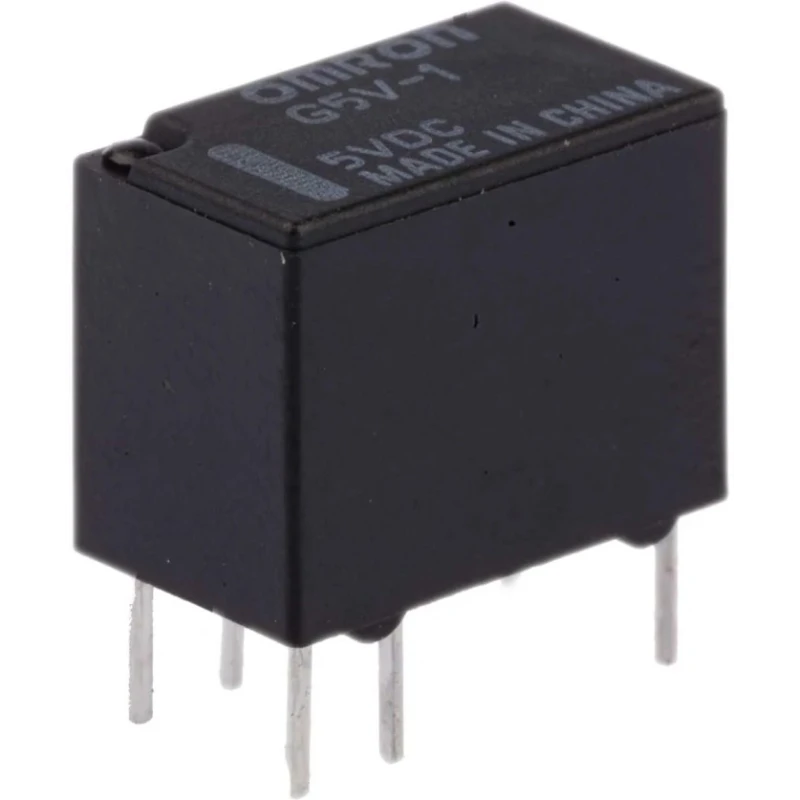

Omron PCB Signal Relay 5V DC Coil 2A SPDT Miniature G5V-1 DC5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 10mm |
| Length | 10mm |
| Model | G5V-1 DC5 |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Contact Resistance | 100 mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 167Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 150mW |
| G2E SPCO miniature PCBrelay,1A 5Vdc coilBrand | Omron |
| Omron PCB Signal Relay, 5V dc Coil, 2A, SPDTBrand | Omron |
Key Features
- Operates with a 5V DC coil voltage, ensuring energy efficiency for signal switching applications.
- Features a single pole double throw (SPDT) contact configuration for versatile circuit control.
- Rated switching current up to 2A, suitable for both AC and DC loads.
- Compact ultra-miniature design with dimensions of 12.5 x 7.5 x 10 mm, ideal for PCB mounting.
- Fully sealed enclosure protects against environmental contaminants for reliable performance.
- Low contact resistance and high sensitivity, consuming only 150mW coil power.
- Gold-plated contacts improve electrical conductivity and durability.
- Wide operating temperature range of -40°C to 70°C supports harsh environments.
Product Description
The Omron G5V-1 DC5 is a compact PCB signal relay designed for demanding signal switching tasks in industrial, telecommunications, audio-visual, and building automation environments. Combining high sensitivity with robust performance, this relay operates with a 5V DC coil voltage and supports a maximum switching current of 2A. Its SPDT contact configuration offers flexibility for controlling various circuit functions.
Miniaturized for space-constrained applications, the relay measures only 12.5 x 7.5 x 10 mm, making it suitable for dense PCB layouts. The sealed construction enhances reliability by preventing dust, moisture, and other contaminants from affecting its operation. Gold-plated contacts minimize resistance and maximize signal integrity, while solder terminals facilitate secure PCB installation.
With a low coil power consumption of just 150mW, the relay is optimized for energy-efficient systems. The dielectric strength of up to 1000V AC provides robust electrical isolation between coil and contacts, supporting safe operations. It features vibration resistance up to 3.3mm and shock resistance up to 1000 m/s², ensuring stability in environments subject to mechanical stress.
The relay's wide operating temperature range from -40°C to 70°C enables usage in extreme climatic conditions, while compliance with RoHS standards ensures environmental safety. The relay is ideal for signal circuits with sensitive switching requirements, such as telecommunication equipment, security devices, and process control panels.
Key technical attributes include a coil resistance of 167 Ω and switching power up to 62.5 VA (AC) and 30 W (DC). Its single crossbar contacts (Au-alloy + Ag) allow it to handle both small and moderate loads effectively. Applications range from industrial automation controls to audio-video signal switching and security systems.
By offering reliability, sensitivity, compactness, and high electrical performance, the Omron G5V-1 DC5 fulfills critical Signal Relay roles in professional and commercial installations. Explore more relays and signal switching solutions from Omron and related categories on EnvMart for your industrial, laboratory, and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this relay is 5V DC, ensuring energy efficiency for signal switching applications.
The maximum switching current of the Omron G5V-1 DC5 is 2A, suitable for both AC and DC loads.
This relay features a single pole double throw (SPDT) contact configuration, allowing for versatile circuit control.
The relay has compact dimensions of 12.5 mm in length, 7.5 mm in width, and 10 mm in height, making it suitable for PCB mounting.
The Omron G5V-1 DC5 operates within a wide temperature range of -40°C to 70°C, making it suitable for harsh environments.
This model features solder terminals for secure PCB installation.
The coil power consumption is 150mW, optimizing it for energy-efficient systems.
The contact material is gold-plated, which improves electrical conductivity and durability.
The dielectric strength of the Omron G5V-1 DC5 is up to 1000V AC, providing robust electrical isolation between the coil and contacts.
This relay complies with RoHS standards, ensuring environmental safety.
The contact resistance is rated at 100 mΩ, which contributes to its efficient performance.
This relay is suitable for various applications, including industrial automation controls, telecommunications, and security systems.
