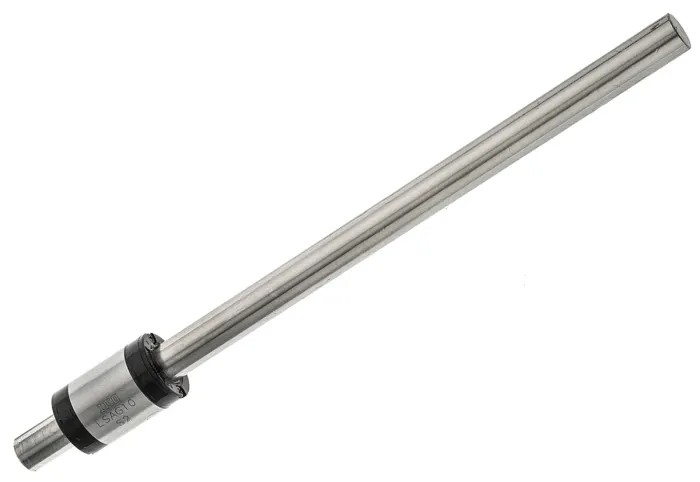

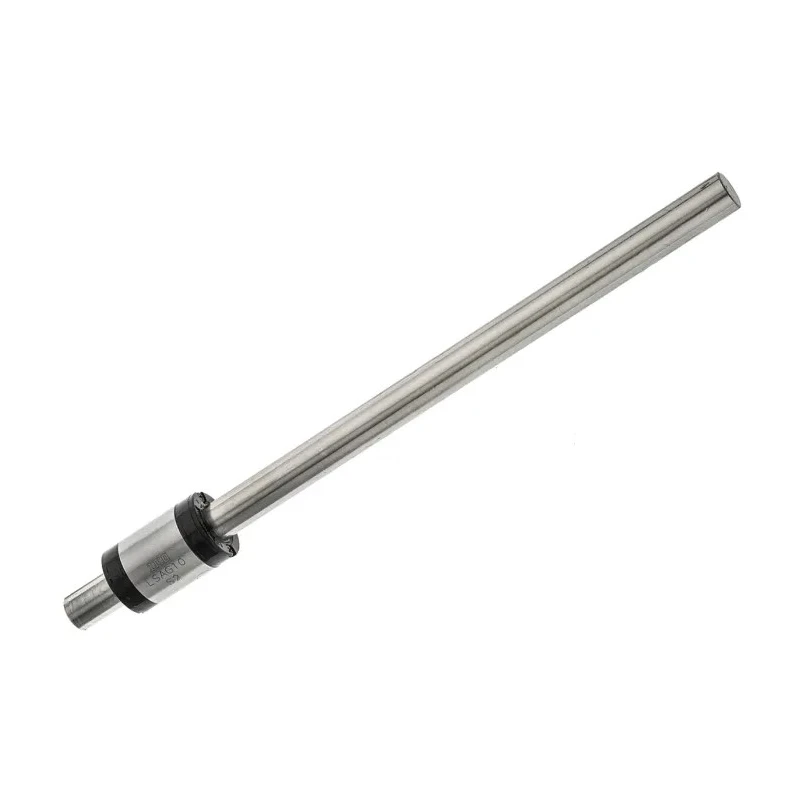

IKO Nippon Thompson Ball Spline Assembly 10 mm Shaft Diameter 200 mm Shaft Length LSAG10C1R200

IKO Nippon Thompson LSAG10C1R200 Ball Spline Assembly with a 10 mm shaft diameter and 200 mm shaft length is designed for applications demanding high rigidity and accurate linear motion. This ball spline assembly features two rows of raceways with recirculating balls in 4-point contact, creating a simple yet compact and efficient structure.

The assembly delivers high load ratings combined with low friction, ensuring smooth and stable operation. Its robust design includes a static load rating of 2150N, dynamic load rating of 1880N, static torque of 12.5 Nm, and dynamic torque of 10.9 Nm, making it well-suited for precise positioning tasks in various industrial settings.

Manufactured in Japan, the LSAG10C1R200 ball spline guarantees quality and durability for use in mechanical power transmission systems. Its compact size contributes to saving space while maintaining high performance.

Typical use cases include automation equipment, machine tools, and other industries requiring smooth linear motion with accurate positioning. The low friction design minimizes wear and energy loss, increasing operational efficiency and product lifespan.

Consists of splined shaft with two rows of raceways and recirculating balls in 4-point contact. Compact and efficient design provides stable operating accuracy. High static load rating of 2150N and dynamic load rating of 1880N.

Static torque rating of 12.5 Nm and dynamic torque rating of 10.9 Nm. Suitable for applications requiring precise linear motion and positioning. Engineered for low friction and smooth movement. Manufactured in Japan ensuring quality and reliability.
