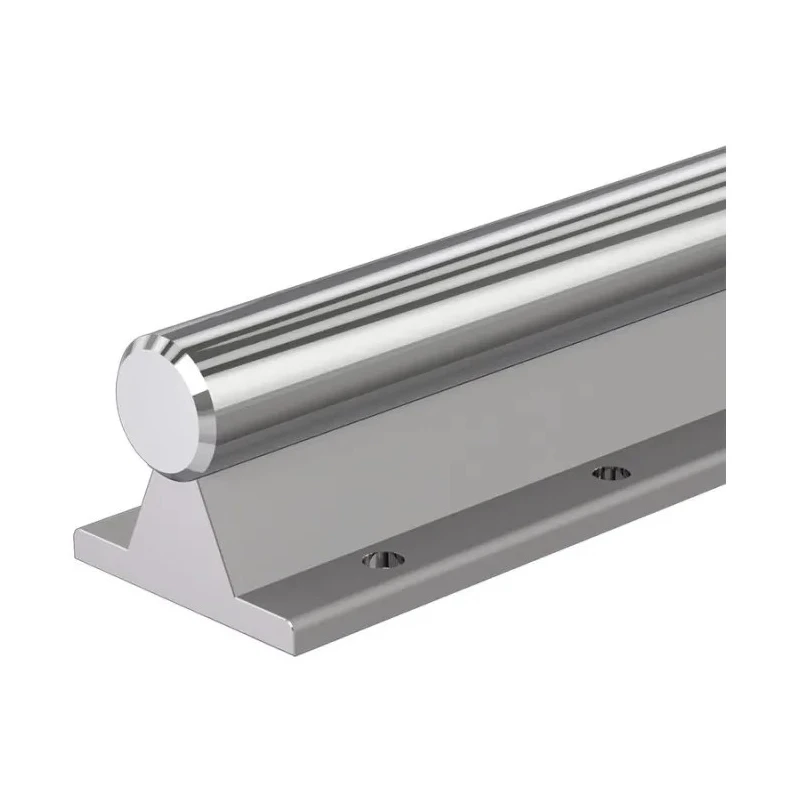

Bosch Rexroth Steel Aluminium Open Linear Round Shaft 25 mm Diameter 800 mm Length Hardness 60 HRC h6 R101402500, 800 MM

Bosch Rexroth R101402500, 800 MM steel aluminium open linear round shaft measures 800 mm in length with a 25 mm shaft diameter. It features a high hardness of 60 HRC and a precise h6 tolerance to ensure accuracy in demanding applications.

Manufactured using a combination of steel and aluminium materials, this shaft provides a balance of strength and lightweight performance. The open linear shaft design is compatible with linear bushings and is supported by flanged aluminium shaft support rails, providing extra rigidity to minimize shaft warping over long spans or under heavy loads.

This product is tailored for industrial and mechanical applications including automation, assembly lines, and manufacturing equipment where precise linear motion guidance is required. The aluminium support rails also allow for additional degrees of freedom in the circumferential direction compared to standard profile guide rails, making it suitable for installations where conventional linear guides might experience deformation due to imprecise substructures.

The careful adaptation of the support rails to the linear bushing sizes optimizes the pressure angle, ensuring a tight fit and improved mechanical stability. Large fastening bolts enhance the rigidity of the assembly, supporting high load capacities and extended operational life.

Constructed with steel and aluminium materials for strength and lightweight support. Hardness rating of 60 HRC ensures robust wear resistance. h6 tolerance maintains high dimensional accuracy. Designed as an open linear shaft suitable for linear bushings.

Includes aluminium shaft support rails for additional rigidity and reduced warping. Ideal for applications requiring long guides or high loads where self-supporting shafts are unsuitable. Supports multiple degrees of freedom compared to profile guide rails.

Provides improved pressure angle fitting for optimal shaft and bushing engagement.

This product suits industrial tools and equipment in mechanical machinery settings, supporting applications in manufacturing, automation, linear motion systems, and fluid power tools.
