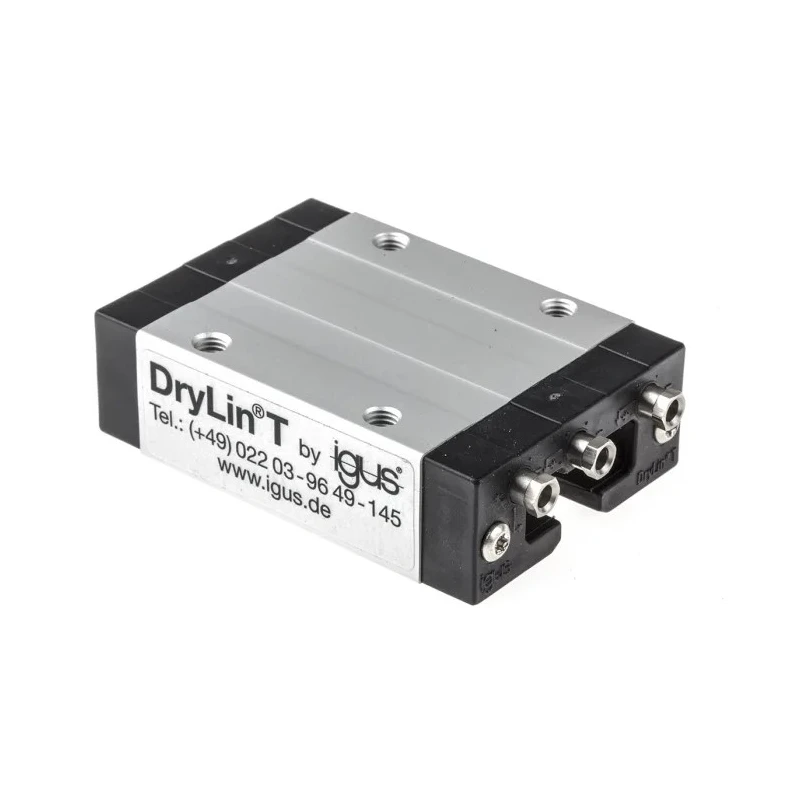

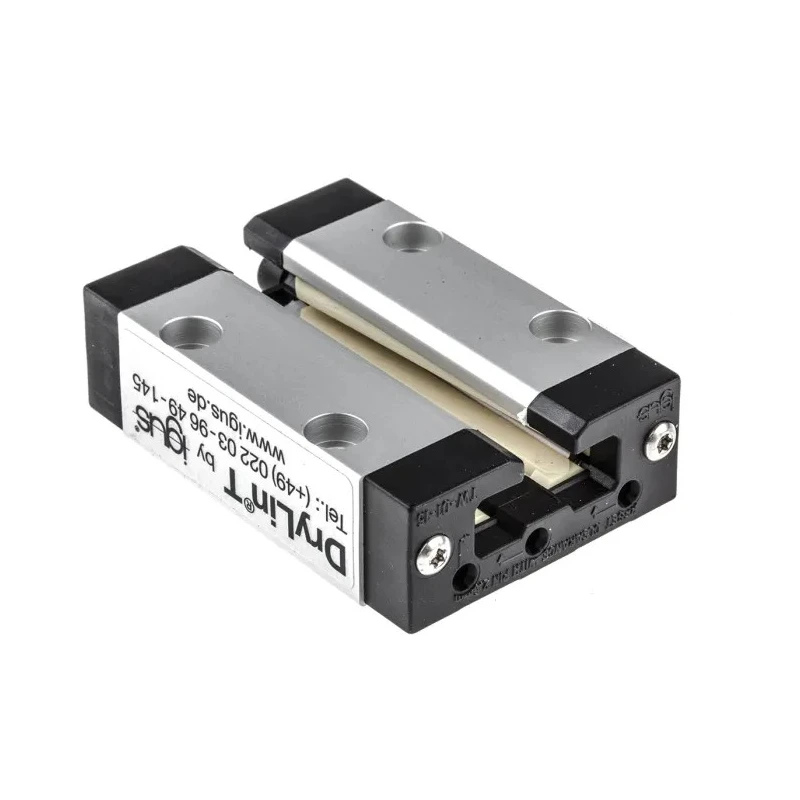

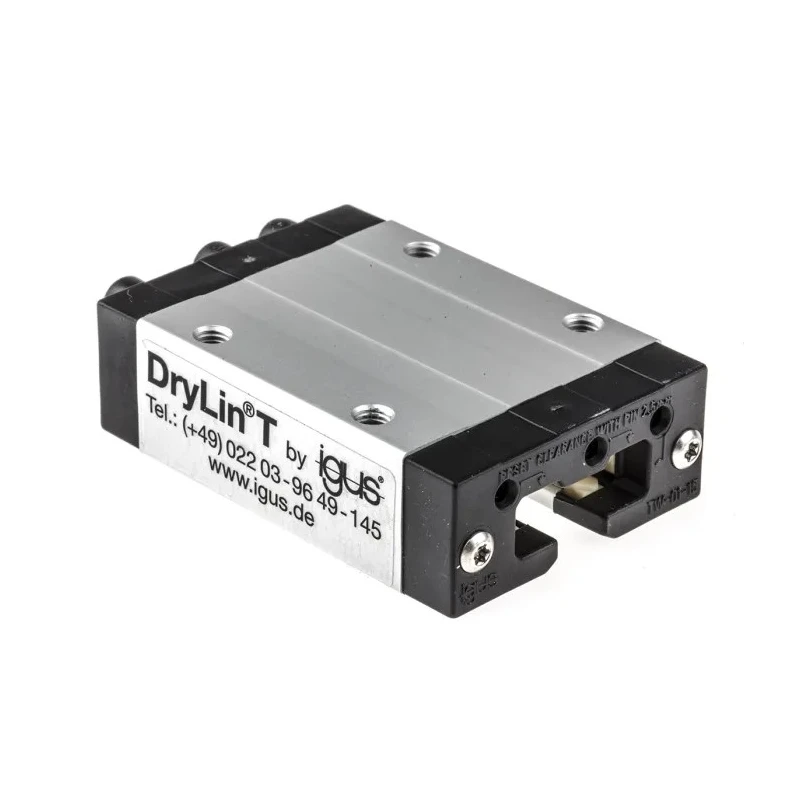

Igus Linear Guide Carriage drylin T Series Aluminium Carriage 74mm Length 47mm Width 4kN Static Load TW-01-15

Igus TW-01-15 Linear Guide Carriage drylin T Series features an aluminium carriage body with dimensions of 74mm length and 47mm width, delivering a static load rating of 4kN. This linear carriage is designed for smooth and precise linear motion, suitable for industrial automation, precision equipment, and semiconductor manufacturing environments.

The aluminium construction balances low mass with sufficient rigidity, providing durability over repeated linear duty cycles. Its compact size facilitates integration into narrow and confined spaces often found in laboratory automation and machine tool ancillary axes.

This component meets stringent cleanliness standards, including ISO Class 6 according to DIN EN ISO 14644-1, ISO Class 5, SEMI E78-0998 (level 1), and ISO Class 3, making it ideal for applications demanding minimal particulate contamination.

With a static load rating of 4kN, the carriage can support substantial stationary or slowly varying loads without permanent deformation, ensuring reliability in heavy payload tasks.

Applications include linear positioning stages in semiconductor handling, motion slides in laboratory automation equipment, and use as ancillary axes in machinery where compactness and smooth linear motion are essential.

Constructed with an aluminium carriage for reduced mass and enhanced rigidity. Carriage length of 74mm enables compact travel interface integration. Carriage width of 47mm suits narrow-profile installations. Static load rating of 4kN supports high-load positioning tasks effectively.

Complies with ISO Class 6 cleanroom standards, ensuring suitability for controlled environments. Ideal for semiconductor handling and laboratory automation stages. Supports motion slides in compact machine tool ancillary axes.

Designed for applications requiring low contamination and particulate control. Note: Carriages and rails are sold separately. Explore more advanced mechanical components in the Linear Guide Carriage category at EnvMart for your industrial and automation needs.
