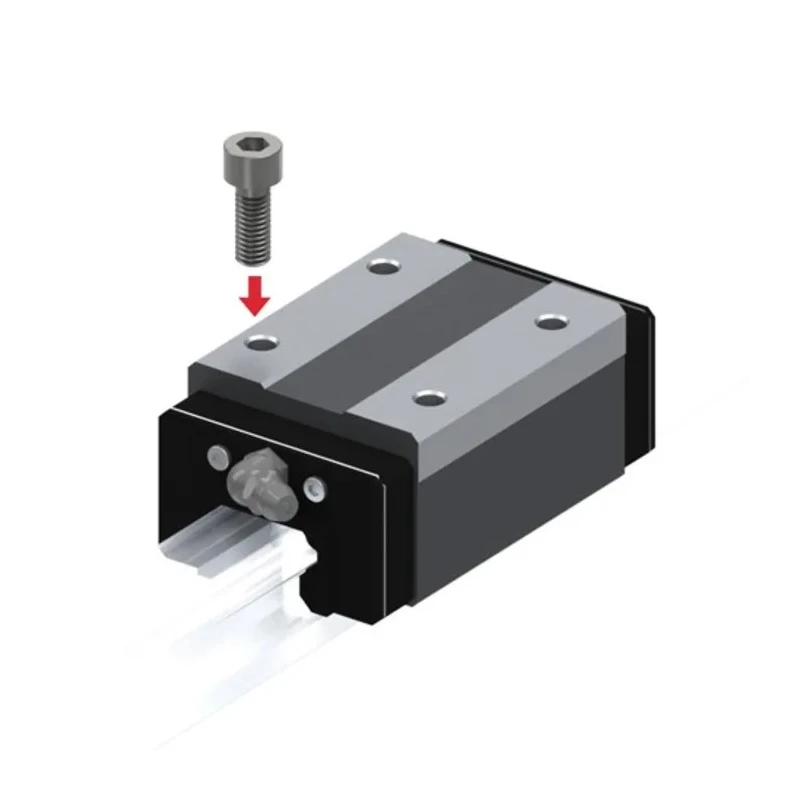

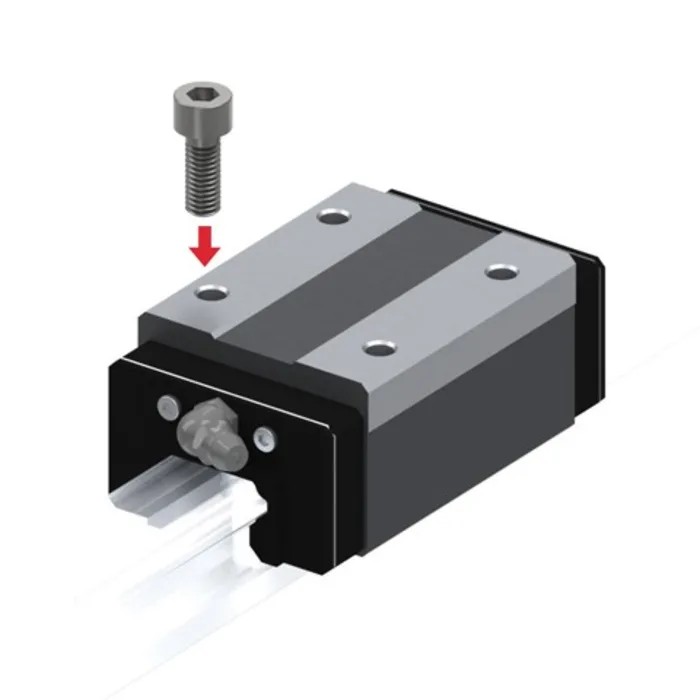

THK Linear Guide Carriage HSR Series 10.9 kN Dynamic Load HSR15C1SSC1(GK)

THK HSR15C1SSC1(GK) Linear Guide Carriage from the HSR Series features a dynamic load rating of 10.9 kN, ideal for high-precision linear motion in industrial and mechanical machinery applications. Manufactured with high-quality carbon steel, this linear guide carriage delivers robust performance and durability.

The carriage’s balls travel in four precision-ground raceways on an LM rail held within the LM block and endplates, providing low friction and high rigidity. Each ball row is set at a 45° contact angle to uniformly distribute rated loads in radial, reverse-radial, and lateral directions, enhancing overall stability and motion accuracy.

Its self-adjusting design absorbs mounting errors even when preloaded, ensuring smooth, precise linear motion critical in manufacturing, automation, and processing equipment. The carriage dimensions are 56.6 mm length and 47 mm width, compatible with rails of 15 mm width.

Originating from France, the carriage meets rigorous quality standards, supporting reliable maintenance and reduced downtime through quick interchangeability within the HSR series.

Constructed from carbon steel for long-lasting service life. Four precision-ground raceways with ball rows at 45° contact angle. Uniform load distribution in all load directions. Self-adjusting carriage body for mounting error absorption.

High rigidity and low friction coefficient for smooth operation. Compatible with LM rails of 15 mm acceptable width. Carriage length of 56.6 mm and width of 47 mm. Manufactured in France ensuring quality and reliability.

This Linear Guide Carriage is suitable for diverse industrial applications including automation, CNC machinery, robotics, and material handling systems requiring precise linear motion components. Explore more THK linear motion components at EnvMart for high-quality industrial mechanical spares.
