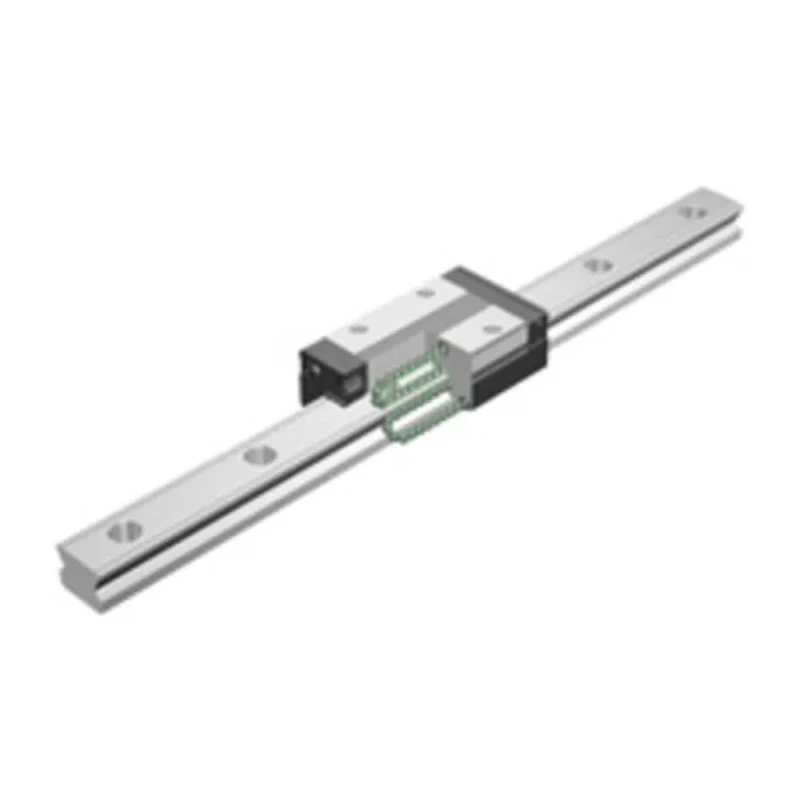

THK Linear Guide Carriage SHS Series SHS20LV1SS(GK) 28.1 kN Dynamic Load France
Specifications
| Country of Origin | France |
|---|---|
| Brand | THK |
| Model | SHS20LV1SS(GK) |
| Series | SHS |
| Dynamic Load Rating | 28.1kN |
| Carriage Length | 98mm |
| Carriage Width | 44mm |
| Acceptable Rail Width | 20mm |
Key Features
- Constructed primarily from carbon steel for durability and strength.
- Carriage length measures 98 mm enabling compact yet stable positioning.
- Carriage width is 44 mm to fit compatible linear guide rails.
- Acceptable rail width is 20 mm ensuring compatibility with SHS series rails.
- Features four rows of circular ball alignment for precise rolling element movement.
- Mounting holes on the block are tapped, facilitating secure attachment during installations.
- Originates from France, highlighting quality manufacturing standards.
Product Description
THK SHS20LV1SS(GK) Linear Guide Carriage SHS Series is a precision-engineered Linear Guide Carriage designed for industrial and mechanical applications requiring smooth, accurate linear motion under load. This carriage supports a dynamic load rating of 28.1 kN, making it suitable for heavy-duty tasks in automation, manufacturing equipment, CNC machinery, and other precision mechanical systems.
The carriage features a robust carbon steel construction that ensures high strength and durability under demanding environments, resisting wear and fatigue. With a carriage length of 98 mm and a width of 44 mm, it offers a compact form factor for versatile machine design implementations.
Its design incorporates four rows of circular ball alignments that enhance load distribution and improve rolling element movement efficiency, reducing friction and extending lifespan. The mounting holes are tapped to allow secure, fast installation without compromising the carriage's structural integrity.
The acceptable rail width of 20 mm aligns with THK's SHS series linear guide rails, allowing seamless integration within the linear motion system. Manufactured in France, this product meets European quality and engineering standards.
Industries benefiting from the SHS20LV1SS(GK) include industrial automation, robotics, packaging machinery, laboratory instrumentation setups, and any commercial mechanical system requiring precision linear guiding.
Constructed primarily from carbon steel for durability and strength. Carriage length measures 98 mm enabling compact yet stable positioning. Carriage width is 44 mm to fit compatible linear guide rails. Acceptable rail width is 20 mm ensuring compatibility with SHS series rails.
Features four rows of circular ball alignment for precise rolling element movement. Mounting holes on the block are tapped, facilitating secure attachment during installations. Originates from France, highlighting quality manufacturing standards.
Explore more configurations and products in the THK linear guide blocks category on EnvMart for your industrial tooling requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating of this model is 28.1 kN, making it suitable for heavy-duty applications.
The carriage length is 98 mm and the width is 44 mm, allowing for compact and stable positioning.
This unit is compatible with linear guide rails that have an acceptable width of 20 mm, specifically designed for the SHS series.
It is primarily constructed from carbon steel, which provides strength and durability under demanding conditions.
The carriage features four rows of circular ball alignment, which improves load distribution and reduces friction during operation.
This carriage is suitable for industrial automation, robotics, packaging machinery, and laboratory instrumentation setups.
The mounting holes on the block are tapped, facilitating secure attachment during installation without compromising structural integrity.
This model originates from France, ensuring adherence to European quality and engineering standards.
It belongs to the SHS series, which is designed for precision linear motion applications.
The compact size of 98 mm in length and 44 mm in width allows for versatile machine design implementations in various applications.
Industries such as automation, manufacturing equipment, and CNC machinery utilize this linear guide carriage for its precision and load capacity.
Yes, there are more configurations and products available in the THK linear guide blocks category for various industrial tooling requirements.
