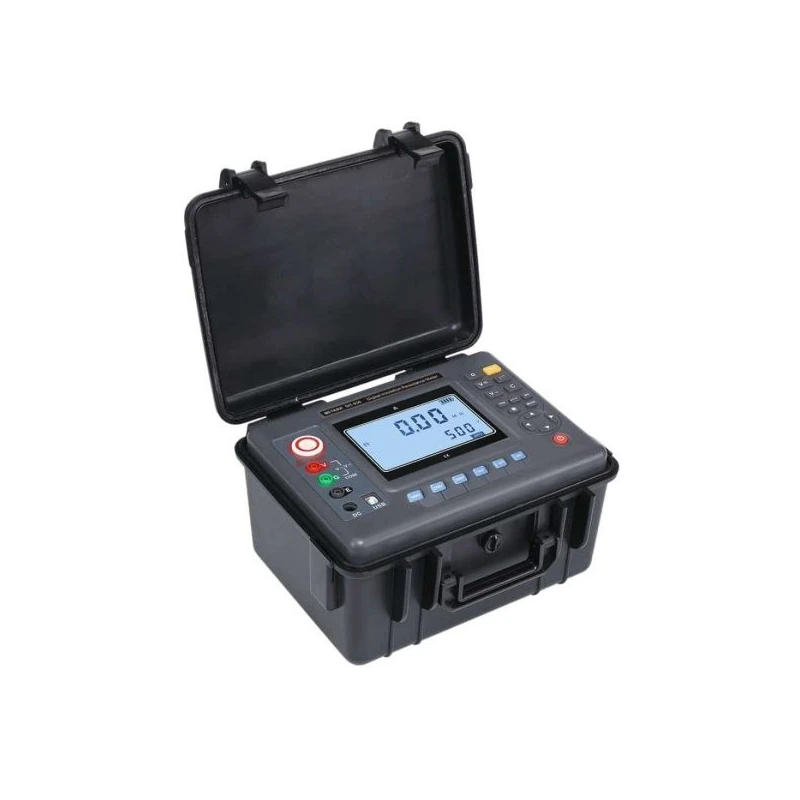

Metravi 15kV Digital Insulation Resistance Meter DIT-930F
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi DIT-930F Insulation Resistance Meter |
| Resolution | 0.01MΩ |
| Accuracy | ±3%rdg±5dgt |
| DC Voltage range | 0.1–1000V |
| AC Voltage Range | 0.1–750V |
| Capacitance Range | 10nF–50µF |
| Power Consumption | Standby30mA |
| Resistance Range | 0.01MΩ–50TΩ |
| Display | 4-digit large LCD with gray backlight |
| Brand | Metravi |
| Power | 12V Rechargeable Battery |
| Dimensions | 240×188×85mm |
| Model | DIT-930F |
| Storage | -15°C~55°C Less than 90%RH |
| Weight | 2.72kg(incl.battery) |
| Safety Standards | IEC61010-1 |
| Backlight | Controllable for dim environments |
| Insulation resistance | ≥50MΩ(between test line & housing) |
| Functions | Insulation Resistance/Voltage/Current/Capacitance Test |
| Data Storage | 500 sets(“FULL” indicator) |
| DC Current range | 0.01nA–6mA |
| Low Battery | Symbol display |
| USB interface | Data upload |
| Alarm Function | Active when exceeding preset limit |
| Pressure Resistance | AC3kV/50Hz/1min |
| Auto Shutdown | After 15 minutes of inactivity |
| Overflow Display | “OL” Symbol |
| Data Review | “READ” function |
| Test Leads | 3m red rod |
| Short-Circuit Current | ≥6mA |
| Absorption Ratio & Polarization Index | Available |
| Rated Applied Voltage | 500V/1000V/2500V/5000V/10kV/15kV |
| Operating Temp/Humidity | -10°C~50°C Less than 85%RH |
Key Features
- Absorption Ratio and Polarisation Index Measurement
- 12V Rechargeable Battery
- 4-bit large LCD display, grey screen backlight
- With USB interface, software monitoring, storage data
- Low Battery Signal
- Alarm Function
- Automatic Shutdown
- Certified IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54) pollution grade 2, CAT III 1000V
Product Description
Metravi DIT-930F is a 15kV insulation resistance tester capable of measuring up to 4TΩ, designed for high-voltage industrial applications. It includes programmable voltage settings, PI/DAR calculation, auto-discharge, and large LCD display with bargraph. Built for substations, transformers, and HV cables, it offers internal memory, USB connectivity, and robust protection features. The tester delivers precision, safety, and convenience for professionals handling critical insulation assessments.
Available on EnvMart, these Insulation Testers are essential tools for verifying the integrity of electrical insulation in wiring, motors, and equipment—critical for ensuring operational safety and efficiency. Metravi Insulation Testers are respected for their high voltage testing capability, accuracy, and rugged design, making them a top pick for electrical professionals and maintenance engineers.
