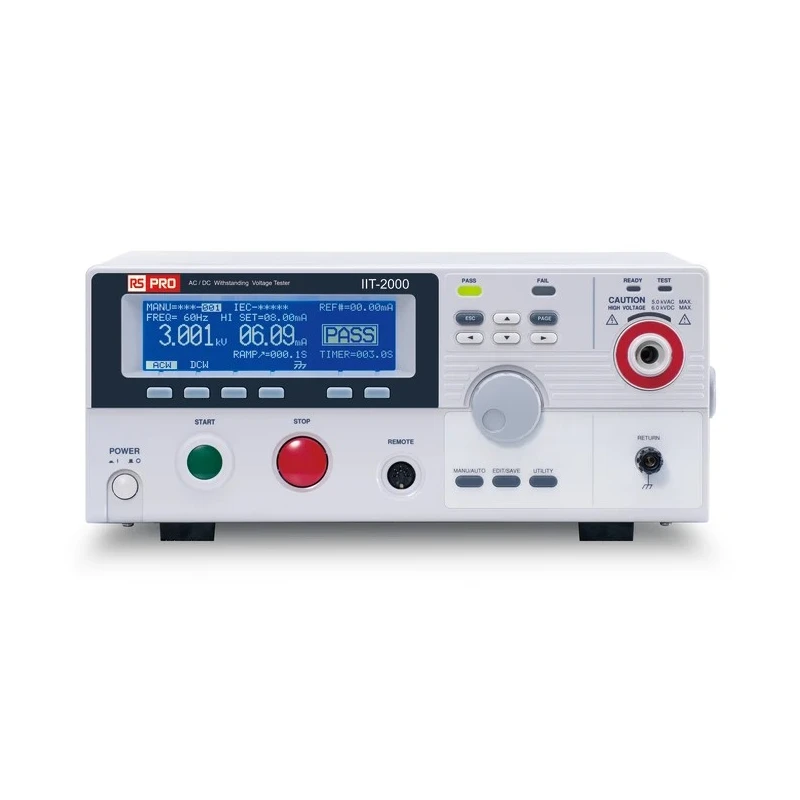

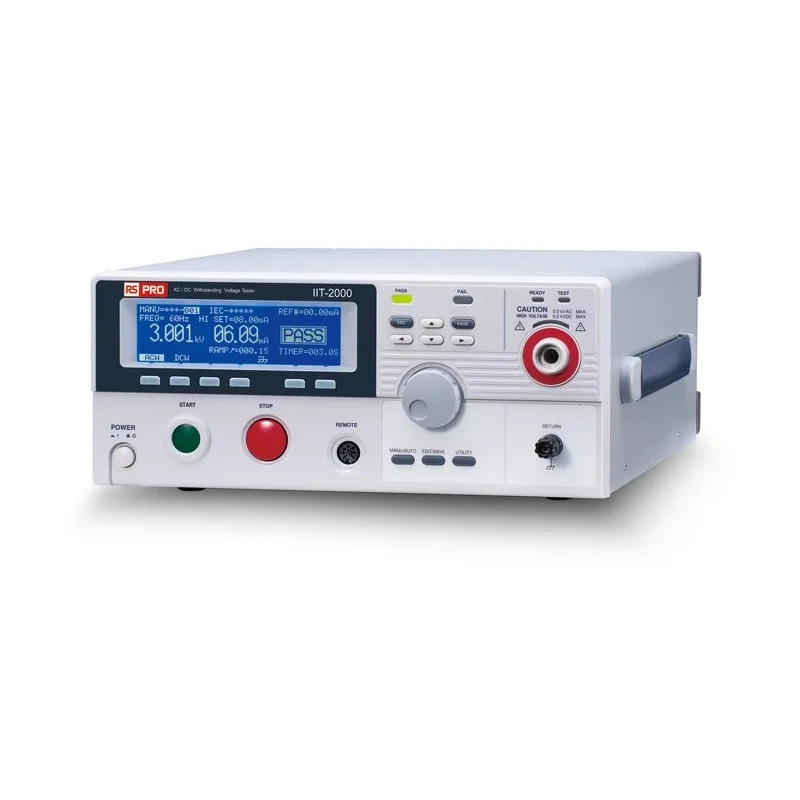

RS PRO Dielectric Strength Tester IIT2000, 50 V Min, 6000 V dc Max, 1mA Test Current IIT2000

RS PRO IIT2000 Dielectric Strength Tester by RS PRO is engineered for precision dielectric and insulation testing applications, supporting a test voltage range from 50 V minimum to 6000 V dc maximum with a test current of 1mA. It is intended for industrial and laboratory environments requiring reliable electrical safety measurement.

The device features a high-resolution 240 x 64 ice blue dot-matrix LCD that allows operators to interpret test results clearly and efficiently. Safety is prioritized with automatic output voltage cutoff within 150 microseconds upon abnormal voltage detection or current trip, plus automatic discharge of device under test (DUT) for enhanced user protection.

Its PWM amplifier improves power efficiency, minimizing the impact of input AC source fluctuations. The tester provides both manual and automatic modes with a sweep function for DUT characteristic analysis.

Additional features include a high-intensity caution LED, safety interlock, zero-crossing turn-on operation, and true RMS current measurement for accurate test results. The device also supports storage of up to 100 test condition memo blocks for flexible testing sequences.

The system supports multiple interfaces (RS-232C, USB, signal I/O, and optional GPIB) for integration with external equipment and remote control, making it suitable for manufacturing, maintenance, and quality control laboratories.

This dielectric strength tester is compliant with EN 61010-1 standards and is suitable for electrical safety testing across industrial, laboratory, and manufacturing settings. Its sturdy construction and precise controls make it a trusted tool for ensuring compliance and safety in electrical equipment.

This product is made in Taiwan, Province Of China. Explore the full range of Insulation Testers and electrical test measurement equipment from RS PRO on EnvMart for dependable industrial solutions. The tester features a 1mA test current for accurate measurement.

Equipped with a high-resolution LCD dot matrix display for clear results. Operates reliably between 0°C and 40°C operating temperature range. Includes safety features such as automatic output voltage cutoff and DUT discharge after each test.

Interfaces include RS-232C, USB device, signal I/O, and optional GPIB for flexible connectivity. The device has a robust build with dimensions 460mm x 330mm x 150mm and weighs 19kg. Complies with EN 61010-1 safety standards for electrical testing instruments.
