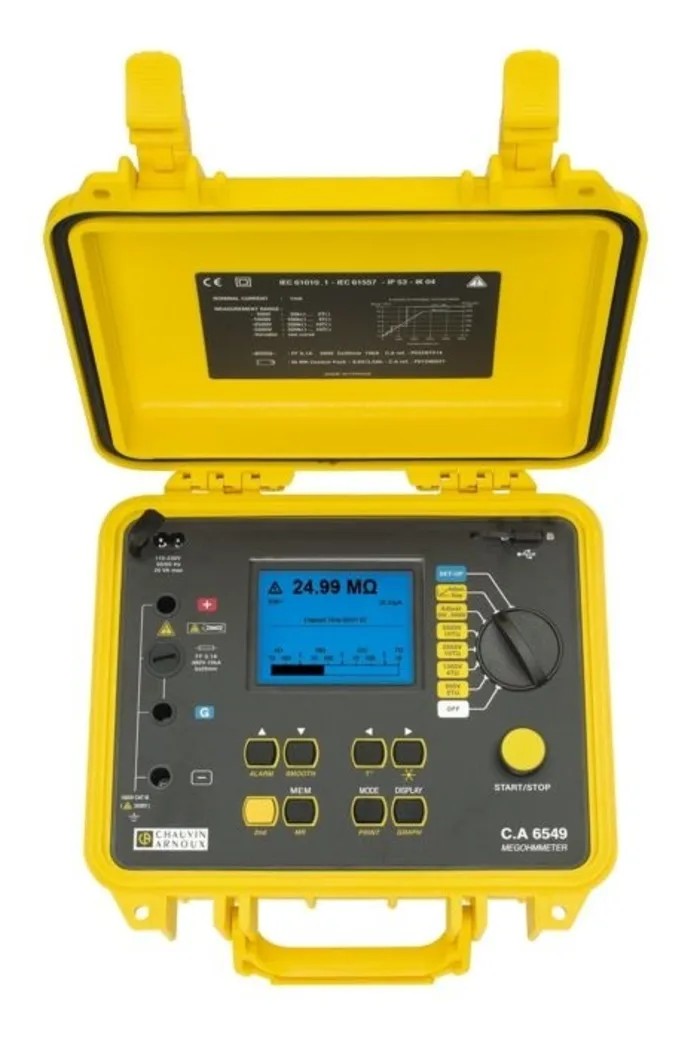

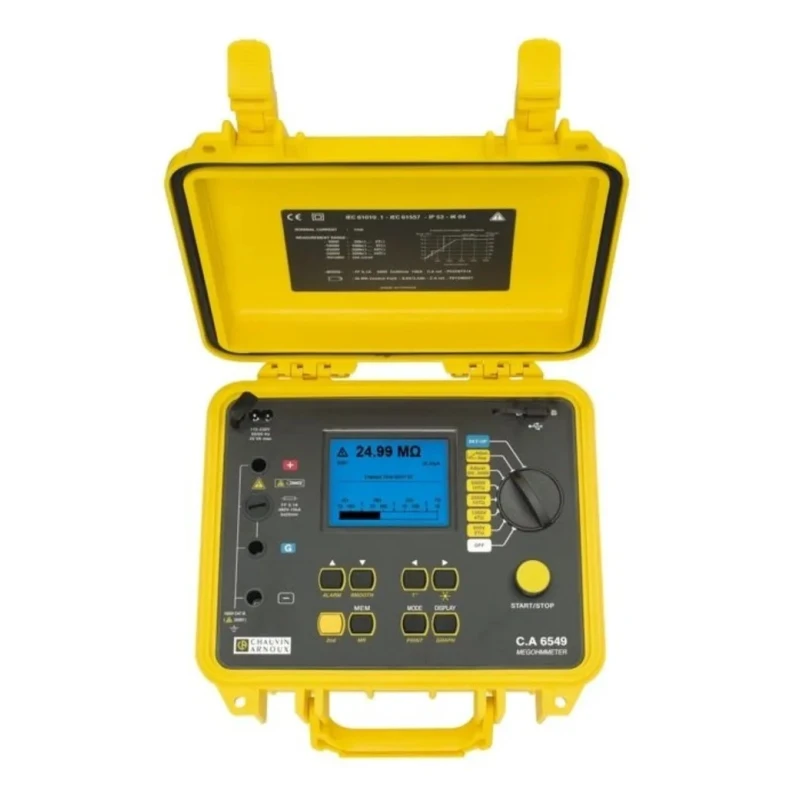

Chauvin Arnoux Insulation Resistance Tester, 40 V Min, 5100 V Max, 10000 GΩ, Cat I 2, Aurix CA 6549 P01139713
Specifications
| Country of Origin | France |
|---|---|
| Display Type | Bar Graph Display |
| Brand | Chauvin Arnoux |
| Battery Life | 30days |
| Battery type | Rechargeable Nickel-Metal Hydride |
| Height | 80mm |
| Length | 270mm |
| Model | P01139713 |
| Gross Weight | 4.3kg |
| Width | 250mm |
| Tester Type | Insulation Resistance Tester |
| Minimum test Voltage | 40V |
| Standards/Approvals | IEC 61557 |
| Safety Category Level | Cat I 2, Aurix |
| Maximum Test Voltage | 5100V |
| Insulation Testing Resistance | 10000GΩ |
Key Features
- Features four adjustable test voltages between 40 V and 5100 V for versatile insulation testing.
- Equipped with a large backlit LCD including digital and bar graph displays for clear measurement readings.
- Powered by a rechargeable Nickel-Metal Hydride battery offering up to 30 days of operation.
- Includes advanced measurement functions such as voltage, capacitance, and residual current analysis.
- Complies with IEC 61557 safety standards and categorized as Cat I 2, Aurix for electrical safety.
- Compact dimensions of 270 x 250 x 80 mm with a weight of 4.3 kg for portable use.
- Ideal for industrial, electrical, laboratory, and construction insulation testing applications.
- Quantitative insulation analysis of DAR, PI, and dielectric discharge quality ratios automatically calculated.
Product Description
Chauvin Arnoux CA 6549 insulation resistance tester is engineered for precise and reliable insulation measurement across a wide voltage range from 40 V minimum to 5100 V maximum. Its robust design includes a rechargeable Nickel-Metal Hydride battery capable of sustaining 30 days of continuous operation, supporting extensive usage without frequent recharging.
This model features a backlit LCD screen with both digital and bar graph output, allowing clear visualization of resistance values up to 10000 GΩ. It supports multiple measurement capabilities including voltage, capacitance, and residual current, enhancing its functionality beyond simple insulation resistance testing.
With compliance to IEC 61557 standards and IEC 61010-1 electrical safety certification class Cat I 2, Aurix, this tester ensures safe operation in various industrial environments. Adjustable test voltages can be set in 10 V or 100 V increments, enabling tailored testing scenarios suitable for different equipment and conditions.
The compact and portable form factor with dimensions measuring 270 mm in length, 250 mm in width, and 80 mm in height, and weighing 4.3 kg, supports easy transport and site use. It is particularly suited for industrial, laboratory, electrical maintenance, HVAC, and construction sectors that require accurate insulation resistance testing.
Four fixed test voltages: 500 V, 1000 V, 2500 V, and 5000 V, with adjustable test voltage range from 40 to 5100 V. Quantitative insulation analysis including DAR, PI, and dielectric discharge quality ratios. Programmable test duration and voltage lock features for user convenience.
Durable site-proof case for protection against harsh industrial environments. Advanced safety features compliant with IEC standards to protect user and tested equipment.
A highly reliable insulation resistance tester designed for professionals requiring accurate, safe, and versatile testing solutions. Explore other Chauvin Arnoux Insulation Testers and related equipment on EnvMart for comprehensive electrical test and measurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The insulation resistance tester can measure resistance up to 10,000 GΩ.
This model features an adjustable test voltage range from 40 V to 5100 V, with fixed voltages of 500 V, 1000 V, 2500 V, and 5000 V.
It is powered by a rechargeable Nickel-Metal Hydride battery, which offers up to 30 days of operation.
The tester has dimensions of 270 mm in length, 250 mm in width, and 80 mm in height, weighing 4.3 kg.
It complies with IEC 61557 safety standards and is categorized as Cat I 2, Aurix for electrical safety.
In addition to insulation resistance, it can measure voltage, capacitance, and residual current.
It features a large backlit LCD that includes both digital and bar graph displays for clear measurement readings.
This model is ideal for industrial, electrical, laboratory, and construction insulation testing applications.
It includes programmable test duration and voltage lock features, along with quantitative insulation analysis of DAR, PI, and dielectric discharge quality ratios.
The insulation resistance tester is manufactured in France.
The minimum test voltage for this insulation resistance tester is 40 V.
Yes, it comes with a durable site-proof case designed to protect against harsh industrial environments.
