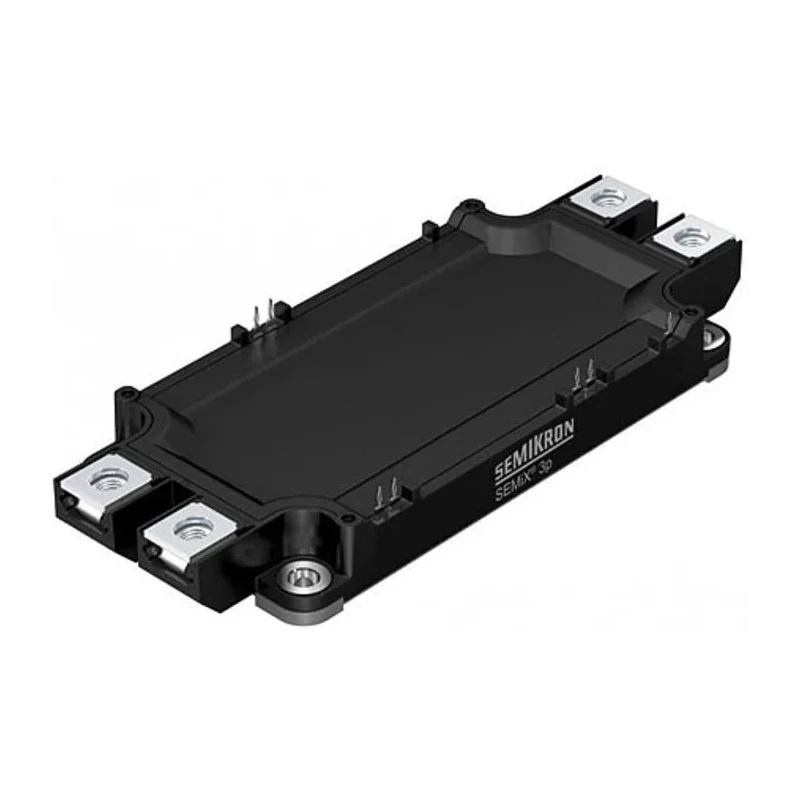

Semikron Danfoss Type N-Channel IGBT Module, 469A 1200V, 11-Pin SEMiX3p, Surface Mount SEMiX303GB12E4p
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semikron Danfoss |
| Height | 17mm |
| Length | 150mm |
| Model | SEMiX303GB12E4p |
| Width | 62.4mm |
| Mount Type | Surface |
| Series | Trench |
| Maximum Operating Temperature | 175°C |
| Package Type | SEMiX3p |
| Minimum Operating Temperature | -40°C |
| Pin Count | 11 |
| Maximum Continuous Collector Current Ic | 469A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.4V |
| Channel Type | Type N |
| Maximum Gate Emitter Voltage VGEO | 20 V |
Key Features
- Rated for a maximum continuous collector current of 469A.
- Handles collector-emitter voltages up to 1200V reliably.
- 11-pin SEMiX3p package enables compact integration and surface mounting.
- Trenchgate technology ensures enhanced efficiency and performance.
- Solder-free spring or press-fit contacts improve connection reliability.
- Supports operation in a wide temperature range from -40°C to 175°C.
- Suitable for AC inverter drives, UPS, electronic welding, and renewable energy systems.
- UL recognized module for industrial safety compliance.
Product Description
Semikron Danfoss SEMiX303GB12E4p is a Type N-Channel IGBT Module, engineered to provide high efficiency and robust power switching capabilities in industrial and commercial applications. Featuring a rated maximum continuous collector current of 469A and a collector-emitter voltage of 1200V, this module reliably supports demanding loads and high-power operations.
Designed in an 11-pin SEMiX3p surface-mount package, it enables compact integration within modern electronic systems, allowing for space-saving installation. The module employs advanced trenchgate technology for improved electrical characteristics and enhanced efficiency compared to traditional IGBT solutions. Dual IGBT configuration supports half-bridge power control, giving flexibility to designers targeting inverter drives, UPS systems, electronic welding, and renewable energy installations.
Maximum continuous collector current: 469A. Maximum collector-emitter voltage: 1200V. 11-pin SEMiX3p surface-mount package. Trenchgate technology for improved efficiency. Solder-free mounting with press-fit contacts for reliability.
Wide operational temperature range: -40°C to 175°C. Positive temperature coefficient for VCE(sat). UL recognition for safety.
The solder-free mounting package using spring or press-fit contacts allows direct gate driver installation on top, reducing assembly time and optimizing space usage. Connection reliability is further improved through auxiliary press-fit pins. This IGBT Module leverages the best features of MOSFETs and bipolar transistors, combining simple gate control with high-current, low-saturation-voltage performance.
Typical industrial use cases include inverter drives for motors, uninterruptible power supplies, electronic welding equipment, and renewable energy control systems. Its robust operating temperature range ensures suitability for harsh environments, while its compact form factor facilitates integration into advanced power electronics.
Browse more Semikron Danfoss power modules and industrial IGBT solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current of this IGBT module is 469A.
This module can handle a maximum collector-emitter voltage of 1200V.
It operates within a wide temperature range from -40°C to 175°C.
The module is designed in an 11-pin SEMiX3p surface-mount package.
It employs trenchgate technology, which enhances efficiency and performance compared to traditional IGBT solutions.
The dimensions of the module are 150mm in length, 62.4mm in width, and 17mm in height.
The maximum gate-emitter voltage is 20V.
It is suitable for applications such as AC inverter drives, uninterruptible power supplies (UPS), electronic welding, and renewable energy systems.
The module features solder-free spring or press-fit contacts, which enhance connection reliability and reduce assembly time.
The maximum collector-emitter saturation voltage for this module is 2.4V.
The country of origin for this module is India.
This module belongs to the Trench series.
