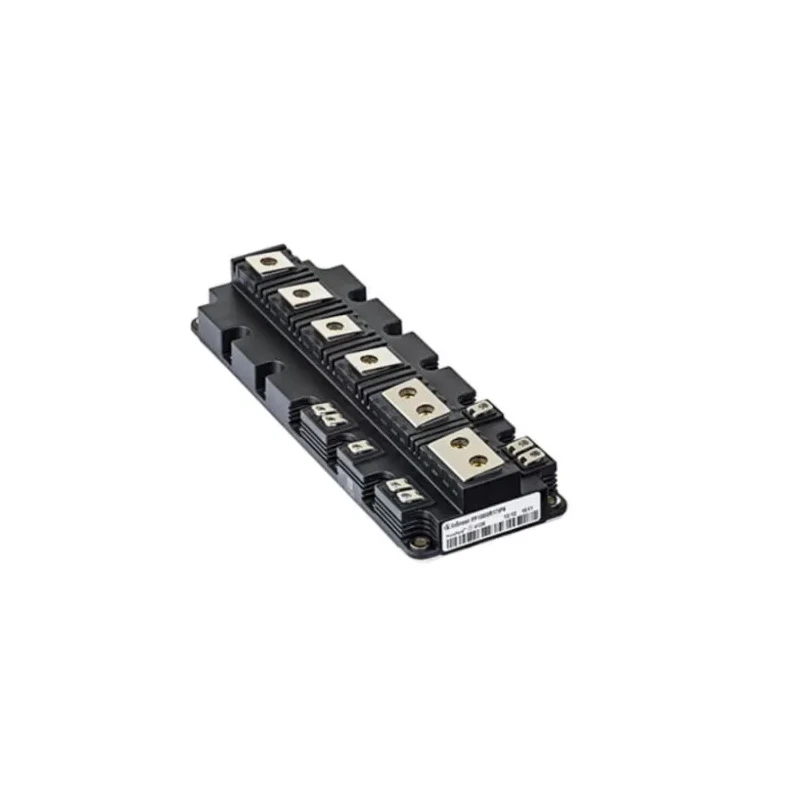

Infineon N-Channel IGBT 1500 A 1.2 kV 10-Pin PRIME3 Surface Mount Module FF1500R12IE5BPSA1

Infineon FF1500R12IE5BPSA1 is a high-performance N-Channel Insulated Gate Bipolar Transistor (IGBT) module engineered for demanding power applications requiring high current capacity and voltage rating of 1.2 kV. This device features dual transistors utilizing advanced TRENCHSTOP IGBT5 technology combined with .XT interconnection technology inside the PRIME3 package, making it highly suitable for high power converters, uninterruptible power supply (UPS) systems, motor drives, and solar power installations.

The module supports a maximum continuous collector current of 1500 A and is capable of efficient power dissipation rated at 20 mW. It is designed for surface mounting, with a 10-pin layout that facilitates easy integration into complex industrial electronic systems. The device operates reliably across a wide temperature range from -40°C to 175°C, allowing it to maintain performance under harsh environmental conditions.

The maximum collector emitter saturation voltage of 2.6 V enables lowered conduction losses and improved efficiency. The maximum gate emitter voltage is rated at 20 V, ensuring secure gating control and operational stability. The external dimensions (247 mm length, 86 mm width, and 38.25 mm height) are tailored for industrial power electronics applications requiring compact yet powerful semiconductor modules.

Additional features include copper bonds enhancing current carrying capabilities and sintering of chips to maximize power cycling durability. This results in reduced total losses by up to 20%, lowering cooling requirements while supporting higher system overload conditions. The module complies with industrial standards but does not include automotive certification specifically.

Equipped with PRIME3 package for efficient surface mounting. Advanced TRENCHSTOP IGBT5 and .XT interconnection technology ensures superior switching. Designed for use in high power converters, UPS systems, motor drives, and solar applications.

Wide operating temperature range from -40°C to 175°C for robust reliability. 10-pin configuration facilitates easy integration into industrial systems. Reduced cooling effort due to high efficiency and low power losses. Enables higher system overload capacity with improved power cycling.

Robust copper bonding technology improves current handling capability. Dimensions suitable for compact industrial power modules.

Explore and source high quality IGBT Modules like the Infineon FF1500R12IE5BPSA1 for your industrial, manufacturing, and power electronics needs across various sectors including renewable energy and motor control systems at EnvMart.
