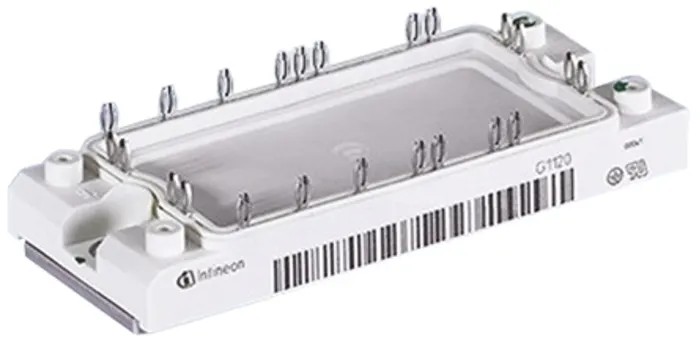

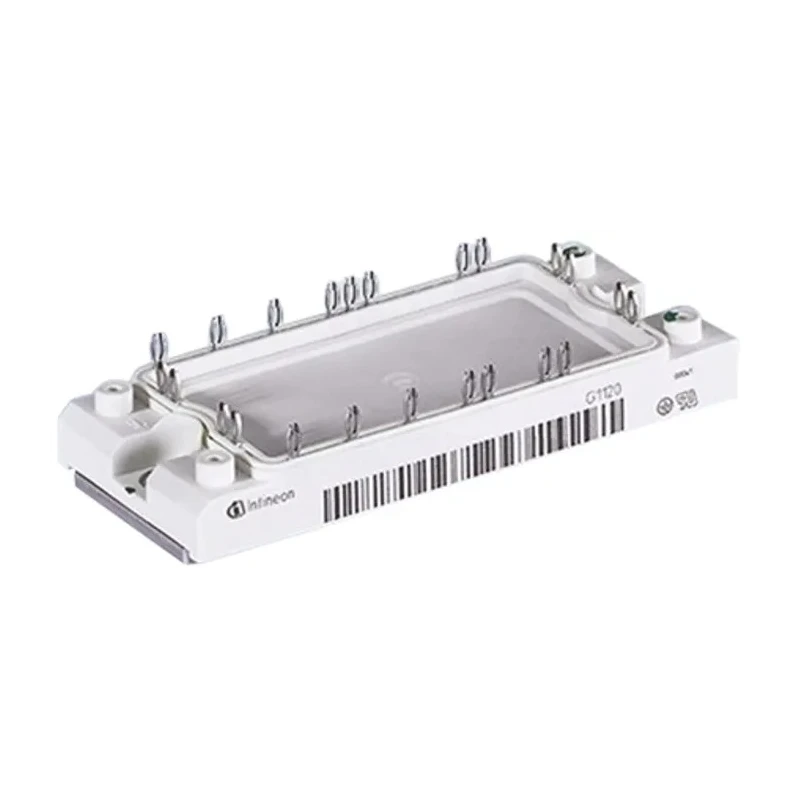

Infineon N-Channel IGBT Module, 35 A, 1200 V, 23-Pin ECONO2 Clamp Mount FP35R12KT4B11BOSA1

Infineon FP35R12KT4B11BOSA1 is a high-performance N-Channel IGBT Module engineered for industrial and commercial power control applications. It offers a maximum continuous collector current of 35 A and can withstand a collector-emitter voltage up to 1200 V, packaged in the ECONO2 standard with clamp mounting to ensure reliable mechanical stability.

The module combines efficient power switching characteristics with robust thermal management, supporting power dissipation of up to 210 W and operating effectively in temperatures ranging from -40°C to 150°C. With a compact form factor measuring 107.5 mm in length, 45 mm in width, and 17 mm in height, it facilitates easy integration into power electronic systems.

This IGBT module features a maximum gate emitter voltage of 20 V and a switching speed capability of up to 1 MHz, suitable for applications requiring rapid switching such as inverters, uninterruptible power supplies (UPS), and industrial motor drives. It supports both hard and soft switching and is optimized for use in industrial, commercial, construction, and agricultural vehicles.

The ECONO2 package series, including this module, is designed to reduce switching losses while enhancing performance at frequencies up to 60 kHz. This makes it a dependable component for power modules including EasyPACK and PrimePACK series.

Features ECONO2 package type for optimal thermal performance. Supports maximum continuous collector current of 35 A. Maximum collector-emitter voltage rating of 1200 V. Clamp mount type ensuring secure installation. Wide operating temperature range from -40°C up to 150°C.

Maximum power dissipation capability of 210 W. Compact dimensions: length 107.5 mm, width 45 mm, height 17 mm. Maximum gate emitter voltage of 20 V with switching speed up to 1 MHz. Suitable for inverter, UPS, industrial drive, and vehicle applications.

Choose Infineon IGBT Modules for reliable, efficient power switching solutions across a wide range of industrial and commercial applications. Browse our environment-friendly, high-quality clips and modules for best-in-class semiconductor performance.
