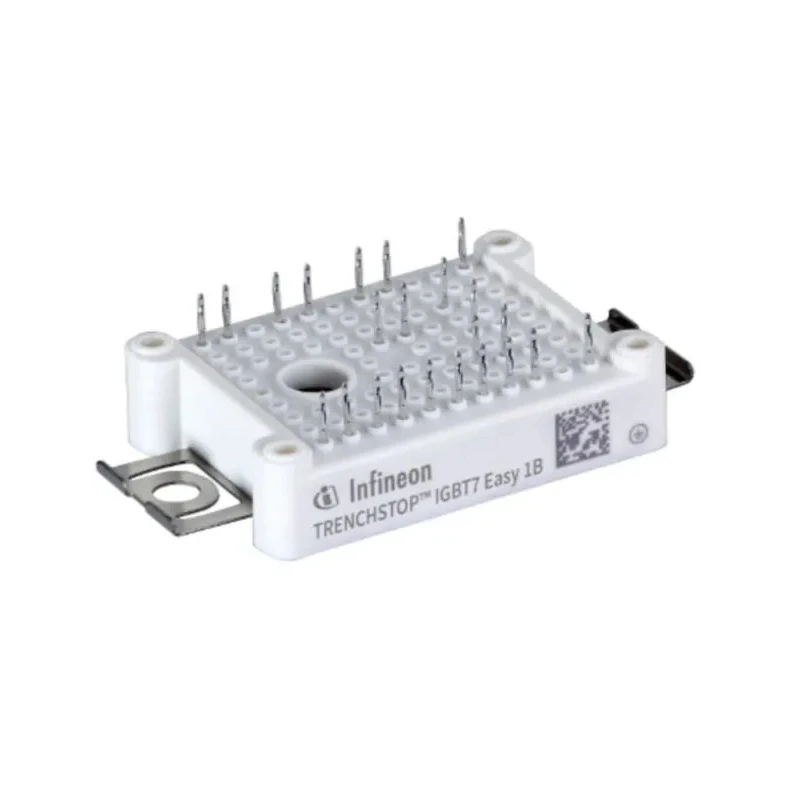

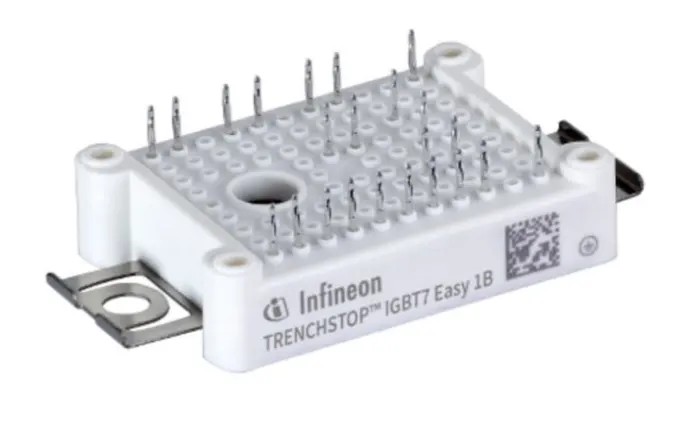

Infineon N-Channel IGBT Module 25 A 1200 V EASY1B Clamp FP25R12W1T7B11BPSA1

Infineon FP25R12W1T7B11BPSA1 is a high-performance N-Channel IGBT Module featuring a maximum continuous collector current of 25 A and a maximum collector-emitter voltage rating of 1200 V. Packaged in an EASY1B clamp mount, this module incorporates advanced TRENCHSTOP IGBT7 technology which provides an optimized trade-off between switching losses and electromagnetic interference, enhancing overall efficiency and reliability.

The module supports operation in a wide ambient temperature range from -40°C to 150°C, making it suitable for demanding industrial and automotive applications. It features PressFIT contact technology for robust electrical connections without soldering, simplifying assembly and maintenance processes.

With a typical collector-emitter saturation voltage of 1.82 V and a maximum power dissipation of 20 mW, this module delivers efficient conduction with minimal power loss. The compact dimensions (33.8 mm length, 62.8 mm width, 12 mm height) enable its integration into space-constrained power electronic systems.

This Infineon IGBT Module is widely used in auxiliary inverter circuits, motor drives, and air conditioning systems where high current switching and voltage endurance are critical. It complies fully with RoHS regulations, ensuring environmental safety and reduced hazardous material usage.

High power density with compact design for efficient use of space. Advanced TRENCHSTOP IGBT7 technology optimizes switching and EMI performance. Clamp mount type and EASY1B package for reliable installation. Wide operating temperature range (-40°C to 150°C) for harsh conditions.

PressFIT contact technology improves assembly and connection reliability. Low collector-emitter saturation voltage (1.82 V) reduces conduction losses. Compliant with RoHS standards to restrict hazardous substances. Ideal for auxiliary inverters, motor drives, and HVAC applications.

Compact module size facilitates integration in power electronic designs.
