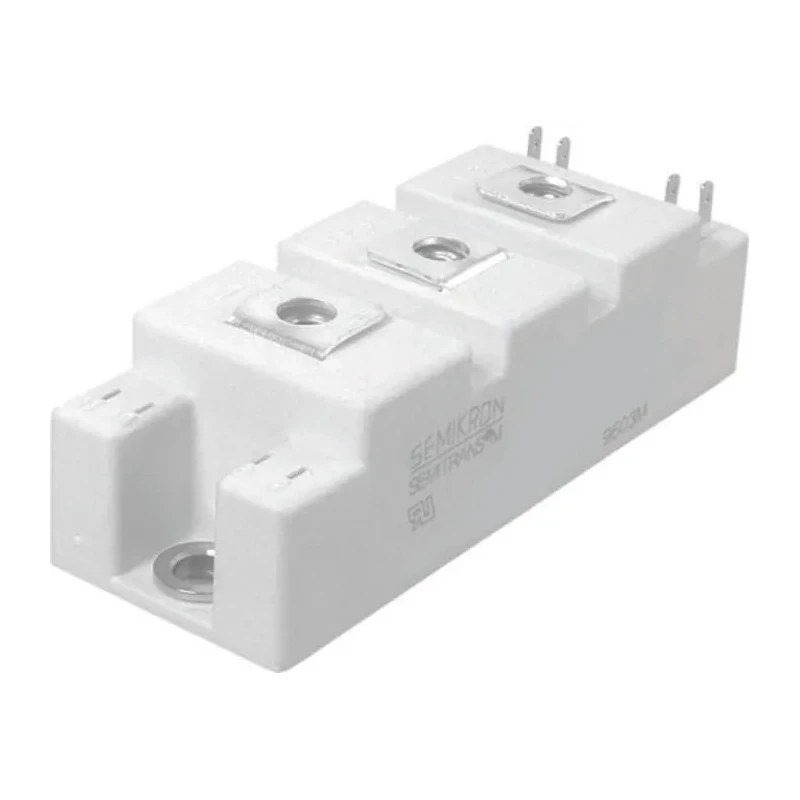

Semikron Danfoss N-Channel Fast IGBT4 Module 232 A 1200 V 5-Pin SEMITRANS2 Surface Mount SKM150GAR12T4

Semikron Danfoss SKM150GAR12T4 is a high-performance N-Channel Fast IGBT4 Module rated for a maximum continuous collector current of 232 A and a collector-emitter voltage of 1200 V. This 5-pin SEMITRANS2 surface mount package module is designed for efficient power switching applications requiring fast switching speeds and high reliability.

The device features a maximum switching speed of 180 ns and can operate reliably in temperatures ranging from -40°C to 175°C, making it suitable for industrial and power electronic applications in harsh environments. The maximum collector-emitter saturation voltage of 2.4 V and gate-emitter voltage rating of 20 V support stable and efficient switching performance.

The physical dimensions of the SKM150GAR12T4 module are 94 mm in length, 34 mm in width, and 30.1 mm in height, facilitating easy integration into power electronic systems with a surface mount configuration. It adheres to IEC 60747-1 standards, ensuring compliance with international quality and safety requirements.

This IGBT module belongs to the GAR series from Semikron Danfoss, known for reliable single IGBT modules optimized for fast switching and high current capabilities. It is particularly useful in industrial motors, inverters, renewable energy systems, and power supplies.

Maximum continuous collector current of 232 A ensures robust power handling. Collector-emitter voltage rating of 1200 V supports high voltage applications. Fast switching speed of 180 ns enhances efficiency. Compact SEMITRANS2 package with 5 pins facilitates surface mounting.

Designed for operation from -40°C to 175°C for wide temperature range. Maximum saturation voltage at 2.4 V optimizes performance. Gate-emitter voltage rated at 20 V supports reliable control. Dimensions: length 94 mm, width 34 mm, height 30.1 mm.

Complies with IEC 60747-1 standards ensuring quality and reliability. Part of the GAR series, suitable for diverse power electronics applications.

This product is ideal for a broad range of industrial power electronics, including motor drives, renewable energy inverters, UPS systems, and other demanding applications requiring durable and efficient fast-switching IGBT Modules. Explore our Semikron Danfoss range at EnvMart for superior semiconductor components.
