Semikron Danfoss Three Phase Bridge Rectifier 1200 V 25 A Panel Mount G-10b SKD 25/12

Free Delivery in India | Lowest Global Shipping Charges

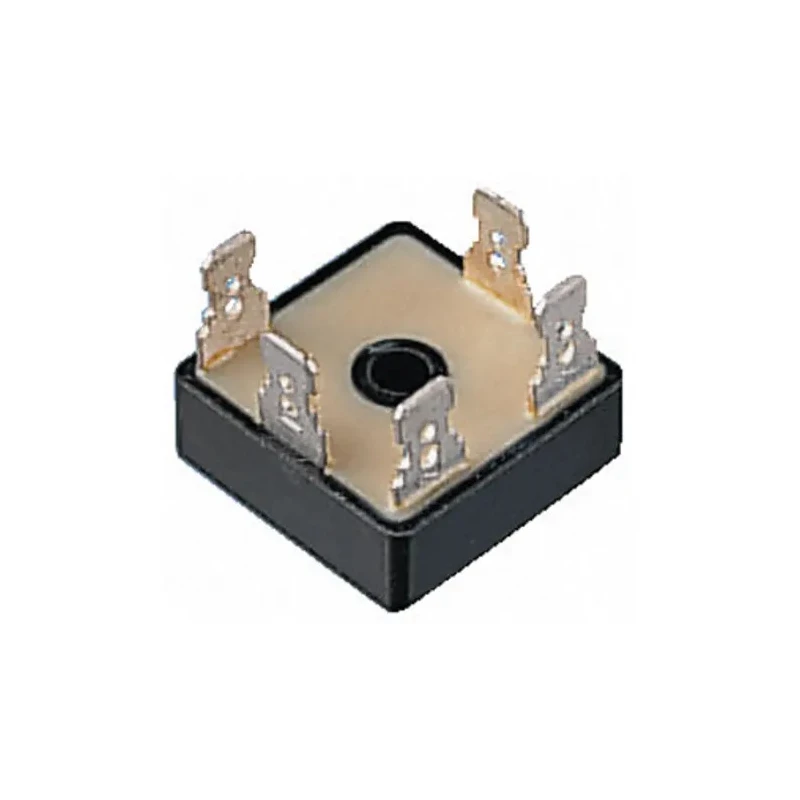

Semikron Danfoss Three Phase Bridge Rectifier 1200 V 25 A Panel Mount G-10b SKD 25/12

Name: Semikron Danfoss Three Phase Bridge Rectifier 1200 V 25 A Panel Mount G-10b SKD 25/12
Brand: Semikron Danfoss
SKU: 386938
Price: 22.01 USD
Availability: InStock



Category Bridge Rectifier Brand Semikron Danfoss Condition New

Specifications

Country of Origin	Brazil
Brand	Semikron Danfoss
Height	10mm
Length	28.8mm
Model	SKD 25/12
Width	28.8mm
Mount Type	Panel
Series	SKD 25
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	G-10b
Minimum Operating Temperature	-40°C
Number of Phases	3
Pin Count	5
Peak Reverse Repetitive Voltage Vrrm	1200V
Peak Reverse Current Ir	5mA
Peak Non-Repetitive Forward Surge Current Ifsm	12A
Forward Current If	25A
Peak Forward Voltage Vf	2.2V
Semikron Danfoss Bridge Rectifier Module, 1600 V 1.5 kA, 5-Pin SingleBrand	Semikron Danfoss

Key Features

This bridge rectifier features a G-10b package type with a square plastic case and isolated metal base plate for easy chassis mounting.
It operates reliably within a temperature range of -40°C to 150°C, supporting industrial environments.
Peak forward voltage is 2.2 V, with a peak non-repetitive forward surge current of 12 A and peak reverse current of 5 mA.
Compact dimensions are 28.8 mm length, 28.8 mm width, and 10 mm height for easy integration.
Designed as part of the SKD 25 series, this rectifier suits applications in power conversion and control in industrial and electronic systems.

Product Description

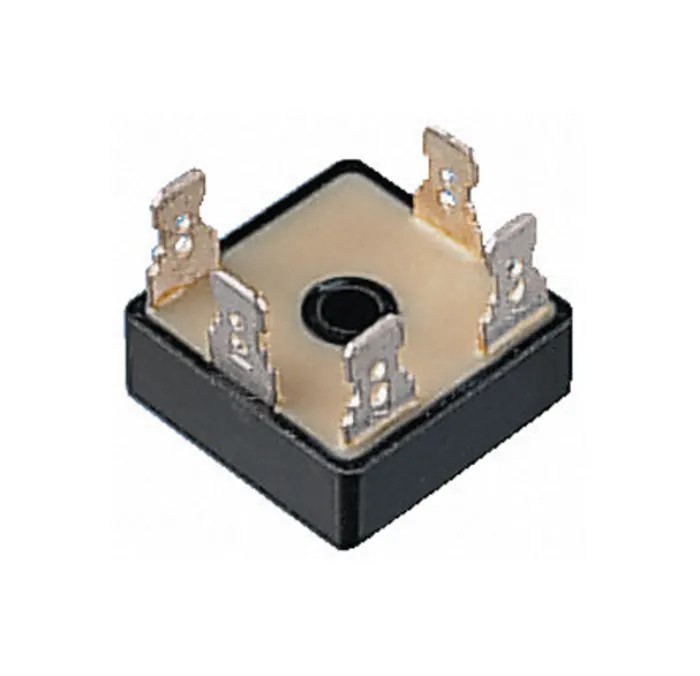

Semikron Danfoss SKD 25/12 Bridge Rectifier is a robust three phase diode bridge rectifier designed to convert alternating current (AC) input into direct current (DC) output with consistent polarity across all inputs. Its 5-pin single configuration and G-10b package provide reliability and ease of installation.

Constructed with a square plastic case and an isolated metal base plate, the SKD 25/12 allows easy panel mounting and secure fast-on connector attachment. It supports a peak reverse repetitive voltage (Vrrm) rating of 1200 volts and a maximum forward current (If) rating of 25 amperes, suitable for moderately high power electronic applications.

The device operates effectively in a wide temperature range from -40°C to 150°C, accommodating stringent industrial and commercial environments. It has a peak forward voltage of 2.2 volts, with a peak non-repetitive forward surge current of 12 amperes, providing surge resilience. Additionally, the peak reverse current is maintained at a low 5 mA to optimize efficiency.

This bridge rectifier's dimensions (28.8 mm length, 28.8 mm width, and 10 mm height) make it compact and suitable for tight installation spaces in power electronics, manufacturing equipment, HVAC systems, and laboratory instrumentation.

This device belongs to the SKD 25 series of rectifiers known for reliability in power control applications. The isolated metal base plate enhances thermal dissipation while chassis mounting. G-10b packaging ensures mechanical stability and electrical isolation.

Applications include industrial machines, power supply rectification, and electronic component assemblies. The product is manufactured in Brazil and meets standard industrial quality requirements.

This product is ideal for engineers and technicians seeking a durable Bridge Rectifier for high voltage, moderate current AC to DC conversion needs in industrial, manufacturing, and electronic component integration contexts.
