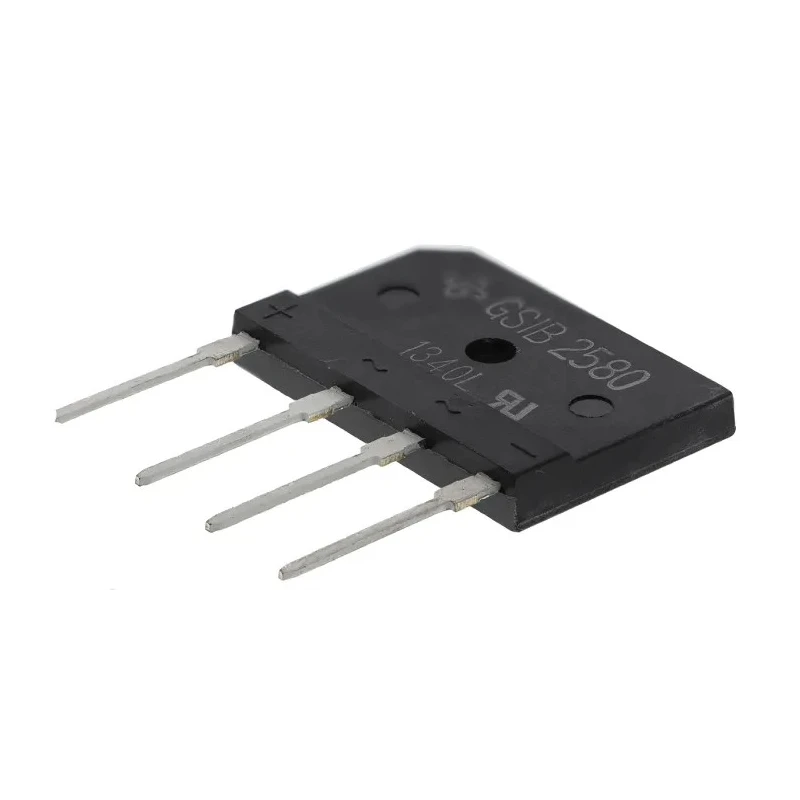

Vishay Bridge Rectifier Through Hole GSIB-5S Package, 800 V Peak Reverse Repetitive Voltage, 350 A Peak Surge GSIB2580-E3/45
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 20mm |
| Length | 30mm |
| Model | GSIB2580-E3/45 |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | GSIB25 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GSIB-5S |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 350A |
| Forward Current If | 25A |
| Peak Forward Voltage Vf | 1V |
| Vishay Bridge Rectifier, 25A, 800V, 4-PinBrand | Vishay |
Key Features
- Designed for through-hole PCB mounting in a GSIB-5S thin single in-line package.
- Supports forward current of 25 A with a peak forward voltage of 1 V.
- Operates reliably in temperatures ranging from -55°C to 150°C maximum.
- Features glass passivated chip junction for durability and high surge current capability.
- Compact dimensions of 30 mm length, 20 mm height, and 4.6 mm width ensure efficient usage of PCB space.
- High dielectric strength case rated at 2500 Vrms for enhanced electrical insulation.
- Soldering pins enable sturdy and easy PCB through-hole mounting.
- Single-phase bridge rectifier designed for converting AC input to DC output.
Product Description
Vishay GSIB2580-E3/45 Bridge Rectifier is a high-performance single-phase rectifier designed for industrial, electronic, and power conversion applications. It features a through-hole mounting type with a GSIB-5S package, optimized for PCB installations where reliable full-wave rectification is needed.
The rectifier supports a peak reverse repetitive voltage (Vrrm) of 800 V and a maximum forward current (If) of 25 A, making it suitable for demanding power electronic circuits. With a peak non-repetitive forward surge current (Ifsm) of 350 A, it withstands transient overloads efficiently. The device's peak forward voltage drop (Vf) is approximately 1 V, minimizing power loss during operation.
Its temperature operating range spans from a minimum of -55°C up to a maximum of 150°C, enabling use in a variety of environmental conditions. The glass passivated chip junction enhances longevity and resistance to electrical stress. The device's compact dimensions (30 mm length, 20 mm height, 4.6 mm width) allow easy integration into PCB designs with stringent space constraints.
The GSIB2580-E3/45 bridge rectifier features a high dielectric strength case rated up to 2500 Vrms, providing superior protection against high voltage stresses. The soldering pins facilitate secure through-hole mounting for stable mechanical and electrical connections on printed circuit boards.
Typical industrial uses include power supplies, battery charging, and other electronics requiring reliable AC to DC conversion with high surge current capacity and thermal stability.
Designed for through-hole PCB mounting in GSIB-5S package. Peak reverse voltage of 800 V ensures robustness against voltage spikes. Peak surge current capability of 350 A for transient overload handling. Wide operating temperature range from -55°C to 150°C for varied environments.
Compact package dimensions improve board space efficiency. Glass passivated junction technology for increased reliability. Single-phase, 4-pin configuration suitable for full-wave rectification. High dielectric strength casing provides electrical insulation.
Ideal for industrial power conversion and electronics applications. Discover more semiconductor Bridge Rectifiers and related components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage (Vrrm) of this bridge rectifier is 800 V.
This model supports a maximum forward current (If) of 25 A.
It has a peak non-repetitive forward surge current (Ifsm) rating of 350 A.
The dimensions of this bridge rectifier are 30 mm in length, 20 mm in height, and 4.6 mm in width.
The operating temperature range for this rectifier spans from -55°C to 150°C.
This bridge rectifier is designed for through-hole PCB mounting.
This model is designed for single-phase applications.
The peak forward voltage drop (Vf) of this rectifier is approximately 1 V.
It comes in a GSIB-5S package type.
This bridge rectifier has a 4-pin configuration.
The casing has a high dielectric strength rating of 2500 Vrms.
The country of origin for this bridge rectifier is China.
