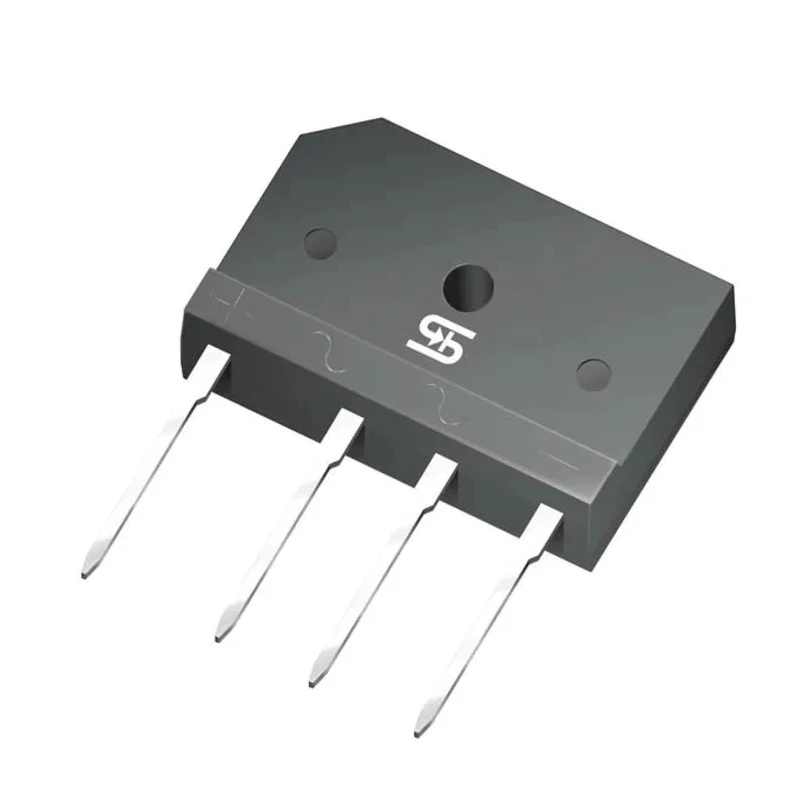

Taiwan Semiconductor Bridge Rectifier 600 V 144 A 4-Pin Quad Through Hole TS-6PL T15JA05G-K

Name: Taiwan Semiconductor Bridge Rectifier 600 V 144 A 4-Pin Quad Through Hole TS-6PL T15JA05G-K
Brand: Taiwan Semiconductor
SKU: 405817
Price: 1.03 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	30mm
Length	29.3mm
Model	T15JA05G-K
Mount Type	Through Hole
Configuration	Quad
Maximum Operating Temperature	150°C
Package Type	TS-6PL
Minimum Operating Temperature	-55°C
Number of Phases	1
Standards/Approvals	UL, RoHS, IEC 61249-2-21
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	600V
Peak Reverse Current Ir	0μA
Peak Non-Repetitive Forward Surge Current Ifsm	144A
Forward Current If	15A
Peak Forward Voltage Vf	1.1V

Key Features

Offers a peak reverse repetitive voltage of 600 V for robust performance.
Designed with a quad configuration and TS-6PL package for easy PCB mounting.
Handles a forward current of 15 A and a peak non-repetitive surge current of 144 A.
Operates reliably between -55°C to 150°C for diverse temperature environments.
Features glass passivated chip junction for improved durability.
High surge current capability suitable for switching mode power supplies and adapters.
Compliance with UL recognition and RoHS, halogen-free according to IEC 61249-2-21 standards.
Compact dimensions of length 29.3 mm and height 30 mm, ideal for space-constrained PCB designs.

Product Description

Taiwan Semiconductor T15JA05G-K Bridge Rectifier is a high-performance power semiconductor device designed for rectification in electronic circuits requiring durable and reliable current conduction capabilities. This device supports a peak reverse repetitive voltage of 600 V and is capable of a forward current of 15 A with a surge tolerance of up to 144 A.

The 4-pin quad configuration housed in a TS-6PL through-hole package allows straightforward installation on printed circuit boards. It features a glass passivated chip junction that improves longevity and reliability, making it suitable for demanding environments such as industrial power supplies, switching mode power supplies (SMPS), adapters, and various lighting applications. The component operates efficiently within a wide temperature range from -55°C to 150°C, ensuring stable performance under varied temperature conditions.

This bridge rectifier is UL recognized (File # E-326243), RoHS compliant, and halogen-free according to IEC 61249-2-21, reflecting adherence to key environmental and safety standards. Its low peak reverse current of 0 μA contributes to minimized power loss and higher efficiency in circuit operations.

The compact device measures 29.3 mm in length and 30 mm in height, making it an excellent fit for compact electronic assemblies. Its high surge current capability makes it robust against transient overloads, safeguarding circuit integrity.

Peak Reverse Voltage: 600 V. Peak Non-Repetitive Forward Surge Current: 144 A. Forward Current: 15 A. Maximum Operating Temperature: 150°C. Minimum Operating Temperature: -55°C. 4-Pin Quad TS-6PL Package. Glass Passivated Chip Junction.

UL Recognized and RoHS Compliant.

This Bridge Rectifier is widely used in electronics manufacturing, power management solutions, laboratory equipment, and industrial electronics, supporting efficient and reliable rectification in AC to DC conversion processes.

Explore our extensive catalog of semiconductor components at EnvMart for your electronic circuit and power management needs.
