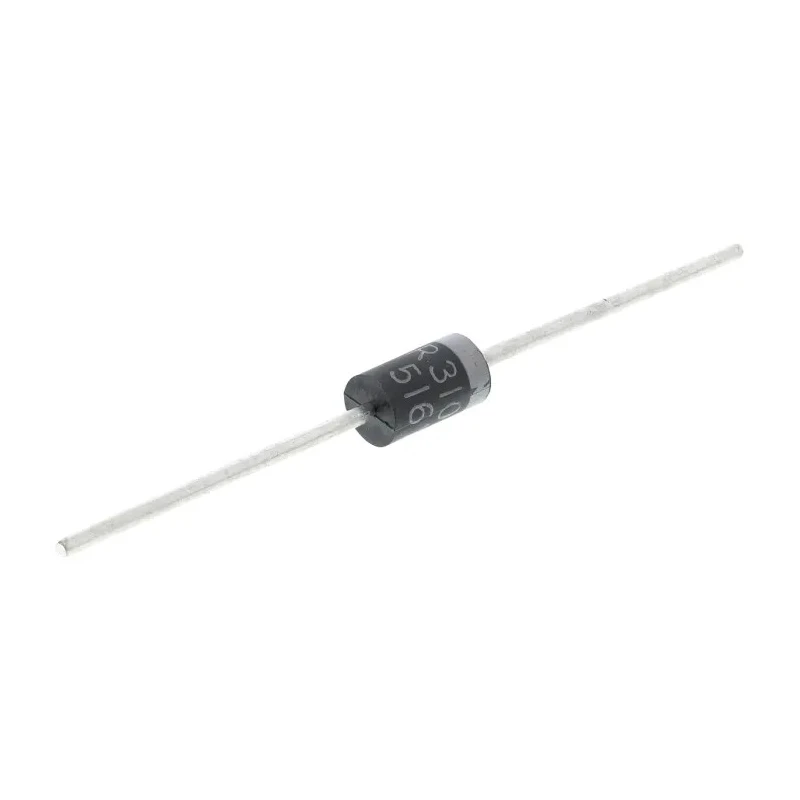

Taiwan Semiconductor 100 V 3 A Schottky Diode 2-Pin DO-201AD SR310 R0
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.6mm |
| Brand | Taiwan Semiconductor |
| Height | 5.6mm |
| Length | 9.5mm |
| Model | SR310 R0 |
| Width | 5.6mm |
| Mount Type | Through Hole |
| Series | SR310 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 0.85V |
Key Features
- The diode has a maximum continuous forward current of 3 A.
- It features a peak reverse repetitive voltage of 100 V.
- The device has a maximum forward voltage drop of 0.85 V.
- The diode package type is DO-201AD with 2 pins for through hole mounting.
- It operates reliably between -65°C and 150°C.
- The peak non-repetitive forward surge current is rated at 80 A.
- The diode conforms to the automotive standard AEC-Q101 for enhanced reliability.
- Physical dimensions include a length of 9.5 mm, diameter and width of 5.6 mm, and height of 5.6 mm.
Product Description
Taiwan Semiconductor SR310 R0 Schottky Diode 2-Pin DO-201AD is a high-performance discrete semiconductor designed for industrial and automotive applications requiring efficient rectification and low forward voltage drop.
With a continuous forward current capacity of 3 A and a peak reverse voltage rating of 100 V, this device is suitable for power management in electronics circuits, power supplies, and automotive electronics.
The diode’s robust DO-201AD package supports through hole mounting, providing mechanical stability and ease of integration into circuit boards. It meets the AEC-Q101 automotive standard, ensuring durability and reliability under demanding operating conditions, such as temperature extremes from -65°C to 150°C.
The diode features an extremely low forward voltage on at 0.85 V and a peak surge forward current rating of 80 A, making it ideal for transient current protection and energy-efficient rectification.
The maximum continuous forward current is 3 A. The peak repetitive reverse voltage is 100 V. The diode has a maximum forward voltage of 0.85 V ensuring low conduction losses. Peak reverse current is 100 μA minimizing leakage.
Physical dimensions are optimized for compact electronic assemblies with a length of 9.5 mm and diameter of 5.6 mm. Conforms to automotive-grade AEC-Q101 standard for high-reliability applications. Peak non-repetitive forward surge current rating of 80 A offers transient protection.
Temperature operating range from -65°C to 150°C supports harsh environments.
This Schottky Barrier Diode is ideal for use in industrial power electronics, automotive electronics, renewable energy systems, and other applications requiring efficient high-speed switching and rectification with minimal power loss.
Browse our extensive selection of semiconductors and Schottky Diodes on EnvMart for reliable electronic components sourced from trusted manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 3 A.
It has a peak reverse repetitive voltage rating of 100 V.
The maximum forward voltage drop is 0.85 V.
The physical dimensions include a length of 9.5 mm, and a diameter and width of 5.6 mm, with a height of 5.6 mm.
It operates reliably between -65°C and 150°C.
The peak non-repetitive forward surge current is rated at 80 A.
This diode conforms to the automotive standard AEC-Q101 for enhanced reliability.
It supports through hole mounting with a 2-pin configuration.
The peak reverse current is 100 μA, which minimizes leakage.
This Schottky diode is suitable for industrial power electronics, automotive electronics, and renewable energy systems.
The rectifier type of this diode is Schottky.
