| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.28mm |
| Length | 5.08mm |
| Model | BZX85C10 R0 |
| Mount Type | Through Hole |
| Series | BZX55C1 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 1.3W |
| Diode Configuration | Single |
| Test Current It | 25mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 10V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 7Ω |
| Magnatec, 10V Zener Diode 5% 1.3 W Through Hole 2-Pin DO-41Brand | Magnatec |

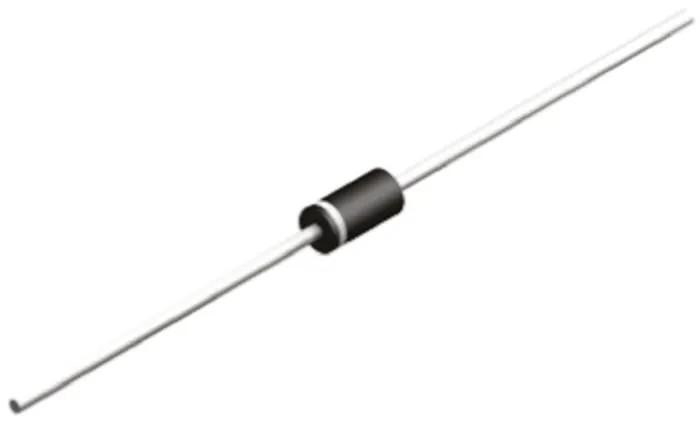

Taiwan Semiconductor BZX85C10 R0 is a high-quality 10 V Zener diode with a maximum power dissipation of 1.3 W designed for voltage regulation in various electronic and industrial applications. It features a single diode configuration encapsulated in a durable DO-41 through hole package, suitable for use in power supply circuits, protection circuits, and voltage reference designs.
The device provides a nominal Zener voltage of 10 V with a tolerance of ±5%, facilitating stable voltage regulation with minimal fluctuations. Its compact 2-pin design allows straightforward PCB mounting and circuit implementation. The maximum reverse leakage current of 500 nA and maximum Zener impedance of 7 Ω ensure efficient operation with minimal losses.
Capable of withstanding operating temperatures from -65°C to 200°C, this Zener diode is reliable for use in harsh industrial environments. The hermetically sealed glass package ensures longevity and stability, maintaining performance over time. It is ideal for use in electronic components, power management modules, and semiconductor applications across lab, manufacturing, and commercial electronics sectors.
This Zener Diode complies with industry standards for semiconductor devices but does not carry specific certifications. It belongs to the BZX55C1 series known for consistent performance in voltage regulation tasks.
Nominal Zener voltage of 10 V ensures reliable voltage regulation. Maximum power dissipation of 1.3 W allows efficient energy handling. Through hole mounting in compact DO-41 package for easy PCB integration. 2-pin configuration suited for simple circuit designs.
Zener voltage tolerance is ±5% for precise regulation. Maximum operating temperature of 200°C supports harsh environments. Test current specified at 25 mA for standard operation. Maximum reverse leakage current of 500 nA ensures minimal power loss.
Hermetically sealed glass package construction provides durability. Explore more semiconductor components and voltage regulation solutions in our Electronics & Electricals category on EnvMart.
