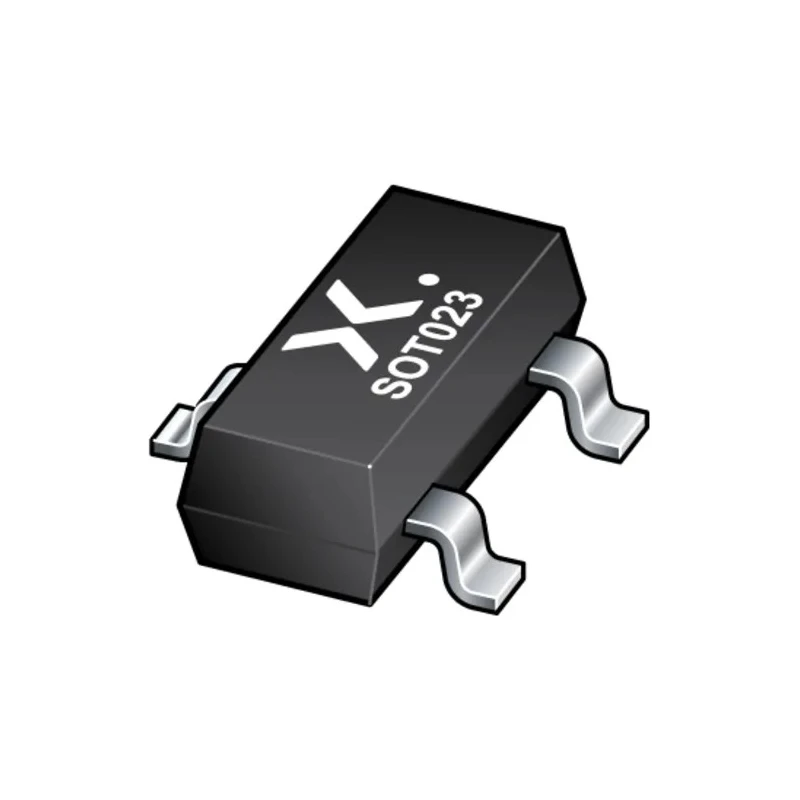

Nexperia 1, 2.4 V Zener Diode Single 250 mW ±2% Surface Mount SOT-23 BZX84-B2V4,215

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 1, 2.4 V Zener Diode Single 250 mW ±2% Surface Mount SOT-23 BZX84-B2V4,215

Name: Nexperia 1, 2.4 V Zener Diode Single 250 mW ±2% Surface Mount SOT-23 BZX84-B2V4,215
Brand: Nexperia
SKU: 414545
Price: 0.03 USD
Availability: InStock



Category Zener Diode Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.1mm
Length	3mm
Model	BZX84-B2V4,215
Mount Type	Surface
Series	BZX84B
Maximum Operating Temperature	150°C
Working voltage range	nominal 2.4 V to 75 V (E24 range)
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Pin Count	3
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	250mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	50μA
Nominal Zener Voltage Vz	2.4V
Zener Type	Voltage Regulator
Maximum Zener Impedance	100Ω
Typical Voltage Temperature Coefficient	-1.6mV/K
Total power dissipation	≤ 250 mW
Non-repetitive Peak reverse power dissipation	≤ 40 W
Three tolerance series	±1%, ±2% and approximately ±5%

Key Features

Nominal Zener voltage of 2.4 V with ±2% tolerance.
Maximum power dissipation rating of 250 mW.
Surface mount type with 3 pins in compact SOT-23 package.
Operating temperature range from -65°C to 150°C.
Typical voltage temperature coefficient of -1.6 mV/K.
Maximum Zener impedance of 100 Ω ensuring voltage regulation.
Low maximum reverse leakage current of 50 μA at test conditions.
Automotive AEC-Q101 qualification ensures reliability under automotive standards.

Product Description

Nexperia BZX84-B2V4,215 is a single Zener diode designed for low-power voltage regulation, providing a nominal Zener voltage of 2.4 V with a tight tolerance of ±2%. Packaged in a surface mount SOT-23 device with 3 pins, it supports a maximum power dissipation of 250 mW suitable for compact electronic circuits.

This diode features a maximum operating temperature of 150°C and a minimum of -65°C, making it suitable for a broad range of industrial and automotive applications. It is AEC-Q101 qualified, ensuring compliance with automotive quality requirements.

The device exhibits a maximum Zener impedance of 100 Ω and a typical voltage temperature coefficient of -1.6 mV/K, providing stable voltage regulation across temperature variations. Its low maximum reverse leakage current of 50 µA supports efficient performance in sensitive electronic systems.

The BZX84 series includes devices with normalized E24 voltage ratings and ±1%, ±2%, and ±5% tolerance options, making this diode versatile for various voltage regulation needs between 2.4 V and 75 V.

This surface mount Zener diode is ideal for use in electronic components, power connectors, semiconductor applications, automotive electronics, signal conditioning, and voltage regulation circuits within industrial, laboratory, and manufacturing environments.

Nominal voltage stability with ±2% tolerance. Compact SOT-23 package for surface mounting. Automotive standard compliant (AEC-Q101). Wide operational temperature range suitable for harsh conditions. Reliable voltage regulation for electronics devices.

Low power and space-saving solution for circuit protection. Explore more semiconductor solutions and Zener Diodes for your electronics projects at EnvMart’s comprehensive catalog.
