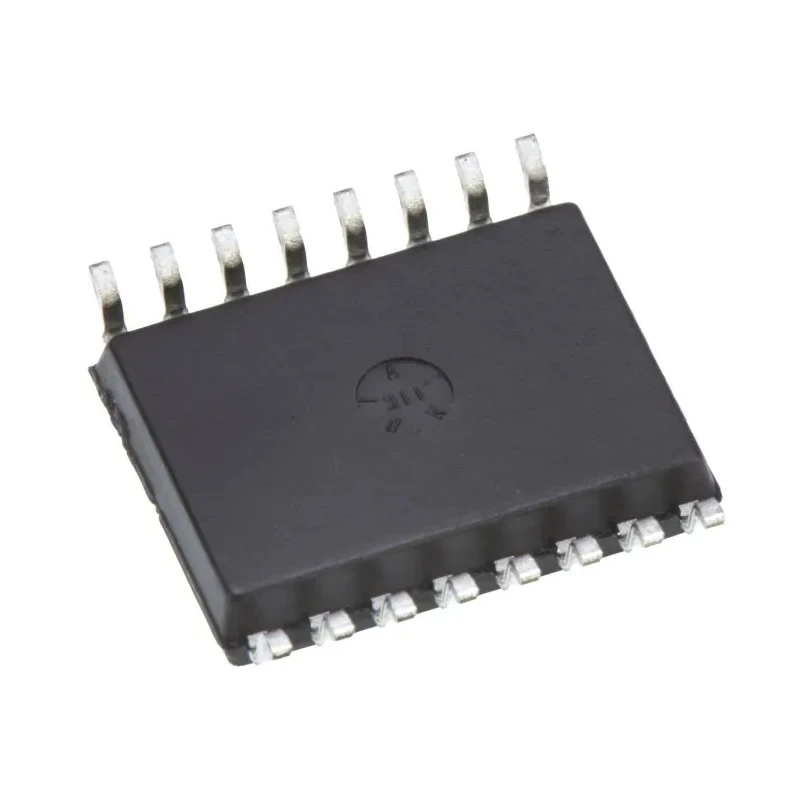

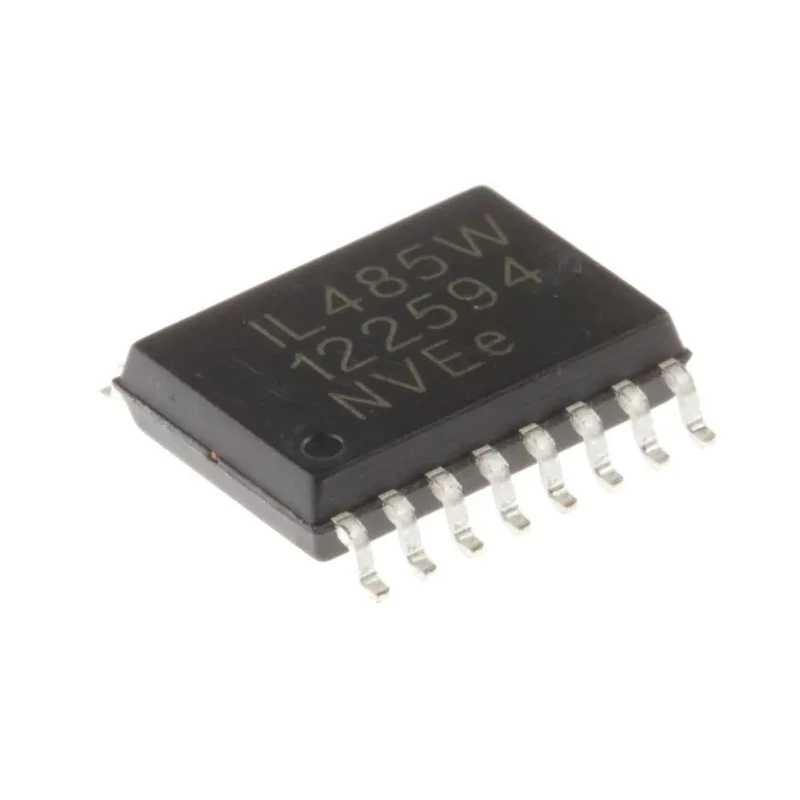

NVE Line Transceiver, Digital, Non-Inverting, 16-Pin SOIC, 4.5V-5.5V Supply, 25ns Propagation Delay IL485WE
Specifications
| Country of Origin | India |
|---|---|
| Brand | NVE |
| Height | 2.67mm |
| Length | 10.64mm |
| Model | IL485WE |
| Width | 7.42mm |
| Mount Type | Surface |
| Output type | Digital |
| Series | IL485W |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CML |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | 60mA |
| Maximum Propagation Delay Time @ CL | 25ns |
| Supply Current | 6mA |
| ISO 8482 | 1987(E) |
Key Features
- The device supports a 35Mbps data rate for high-speed communication.
- Employs patented IsoLoop spintronic giant magnetoresistance technology for galvanic isolation.
- Enables bidirectional communication on balanced transmission lines.
- Operating temperature range is from -40°C to 85°C for industrial robustness.
- Offers ±60mA driver output capability for reliable signal driving.
- Includes isolated RTSAS and DTSAS handshaking controls for enhanced interface management.
- Compatible with 3V and 5V input supplies for versatile applications.
- Features thermal shutdown protection to prevent device damage.
Product Description
The NVE IL485WE Line Transceiver is a high-performance, digital, non-inverting interface device featuring a 16-pin SOIC surface mount package. It operates with supply voltages ranging from 4.5V to 5.5V, delivering a maximum propagation delay of 25 nanoseconds, which is ideal for fast data communication needs.
Utilizing NVE's patented IsoLoop spintronic giant magnetoresistance (GMR) technology, this line transceiver provides galvanic isolation with an isolation voltage of 2.5kVRMS as per VDE V 0884-10 standards. The device supports a data rate of up to 35Mbps, enabling high-speed bidirectional communication on balanced transmission lines commonly used in PROFIBUS and RS-485 systems.
This transceiver offers ±60mA driver output capability and includes DE/ISODE and IN1/OUT1 pins for isolated RTSAS and DTSAS handshaking, enhancing control flexibility. It is compatible with both 3V and 5V input supplies, making it adaptable to varied system voltage requirements. The device also features thermal shutdown protection to prevent damage under fault conditions.
The IL485WE operates reliably in a broad temperature range from -40°C to 85°C, making it suited for demanding industrial, laboratory, or automation environments where robust performance is critical. Its small form factor (dimensions approximately 10.64mm length × 7.42mm width × 2.67mm height) allows deployment in compact assemblies.
Key technical specifications include:. Logic family: CML. Logic function: Bus transceiver. Input type: Differential. Output type: Digital. Polarity: Non-inverting. Pin count: 16. Supply current: 6mA. Operating temperature range: -40°C to 85°C.
This line transceiver is widely applicable in industrial automation, electrical systems, manufacturing control interfaces, and communications infrastructure. It supports multiple data point transmission, ensuring efficient and reliable bus isolation and signal integrity.
Set includes one IL485WE Line Transceiver IC in a 16-pin SOIC package, RoHS compliant, suitable for surface mount technology applications. Environmentally robust with no automotive certification.
Explore more high-reliability Line Interface ICs at EnvMart for advanced digital interface solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NVE IL485WE Line Transceiver supports a maximum data rate of 35Mbps, enabling high-speed communication.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial applications.
The device is compatible with supply voltages ranging from 4.5V to 5.5V, accommodating both 3V and 5V input supplies.
The maximum propagation delay for the IL485WE is 25 nanoseconds, suitable for fast data communication needs.
This line transceiver provides a digital output type, facilitating effective signal transmission.
The dimensions of this model are approximately 10.64mm in length, 7.42mm in width, and 2.67mm in height.
It employs NVE's patented IsoLoop spintronic giant magnetoresistance technology for galvanic isolation, with an isolation voltage of 2.5kVRMS.
Yes, it includes isolated RTSAS and DTSAS handshaking controls for enhanced interface management.
The IL485WE offers a driver output capability of ±60mA, ensuring reliable signal driving.
It accepts differential input, which is essential for balanced transmission lines.
The logic family for this line transceiver is CML, which is suitable for high-speed applications.
The IL485WE comes in a 16-pin SOIC package, designed for surface mount technology applications.
