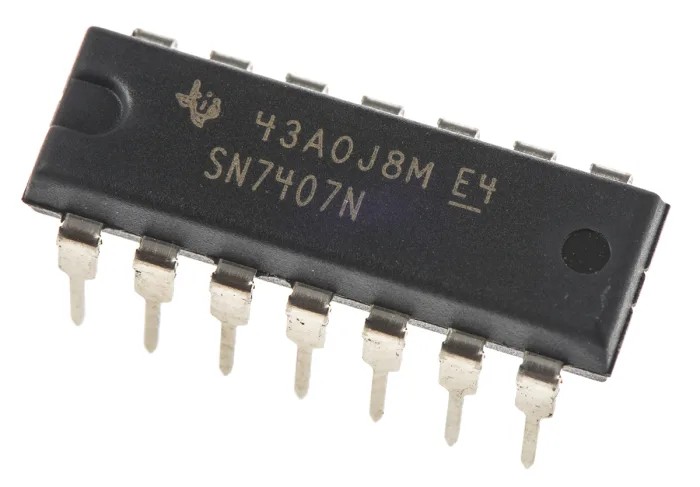

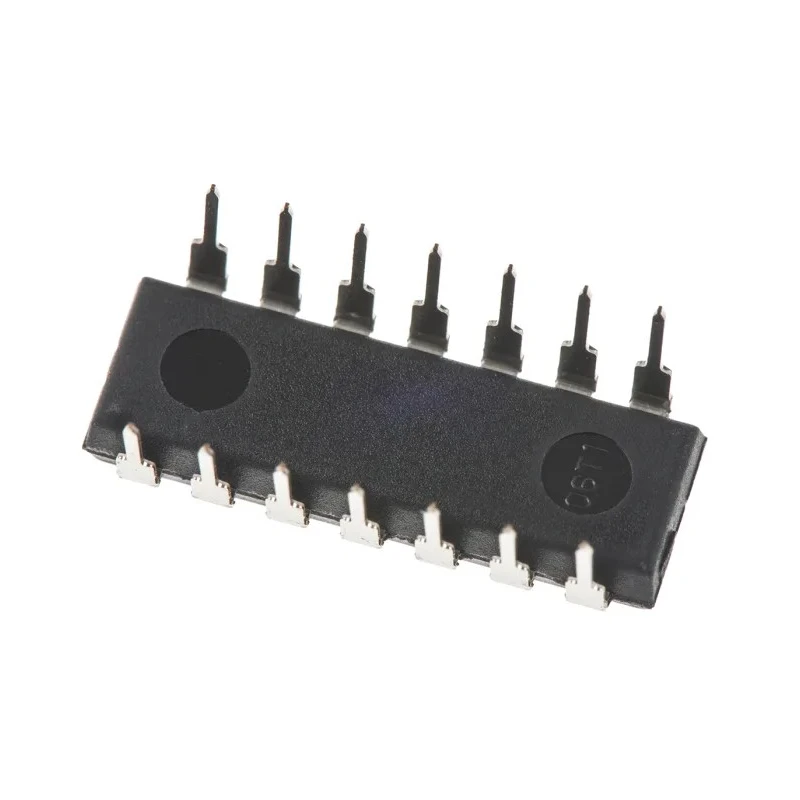

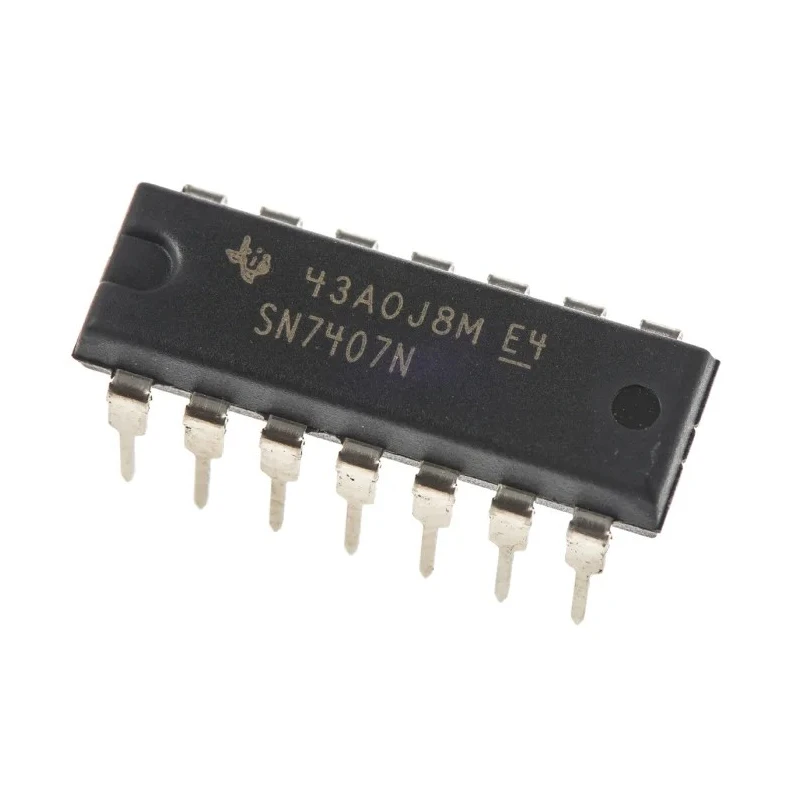

Texas Instruments 6-Channel Buffer & Line Driver Open Collector Non-Inverting 14-Pin PDIP SN7407N

Texas Instruments SN7407N is a 6-channel buffer and line driver with open collector, non-inverting outputs designed for use within standard TTL logic applications. This device is packaged in a 14-pin PDIP format and supports through-hole mounting, making it compatible with a wide range of prototyping and production circuit boards.

It functions with a minimum supply voltage of 4.75V and a maximum of 5.25V, delivering reliable performance with a supply current of 41mA. The device features six non-inverting channels, each capable of providing a maximum low-level output current of 40mA, while the maximum high-level output current is -0.25mA. The output type is open collector, which is suitable for wired-AND logic applications and level shifting.

The propagation delay time at CL is 14 nanoseconds, ensuring swift signal transmission suitable for timing-critical operations. Operating temperatures range from 0°C to 70°C, making the SN7407N suited for standard commercial electronic equipment environments.

Its compact PDIP package dimensions are 19.94mm in length, 7.19mm in width, and 5.08mm in height, facilitating easy integration into circuit assemblies. The IC belongs to the 74xx logic family, known for its widespread use in digital circuits.

This device is not designed to meet automotive standards but finds extensive use in general electronics for buffering and line driving applications. Operates with a supply voltage between 4.75V and 5.25V. Six non-inverting buffered channels with open collector outputs.

Maximum low-level output current of 40mA and high level output current of -0.25mA. Propagation delay time of 14ns suitable for timing applications. Through hole mounting in a 14-pin PDIP package with compact dimensions. Operating temperature range 0°C to 70°C ensures reliability in commercial environments.

Part of Texas Instruments 74 logic family known for robust digital signal processing.

This product is ideal for use in electronic interface applications, including line driving and buffering in industrial, laboratory, and general electronics manufacturing contexts. Browse more from Texas Instruments and explore Line Interface ICs on EnvMart for compatible electronic solutions.
