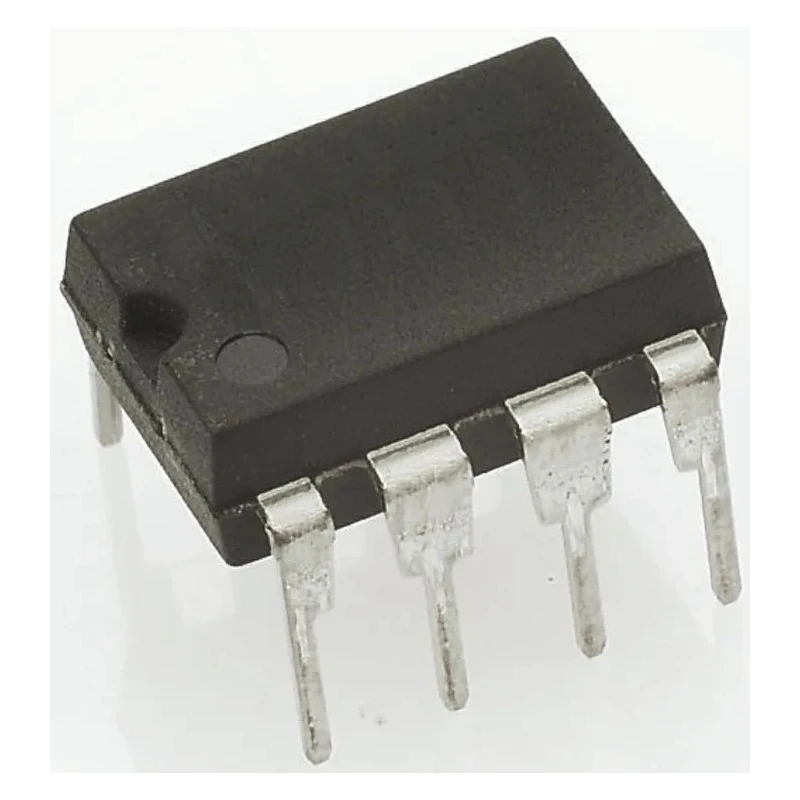

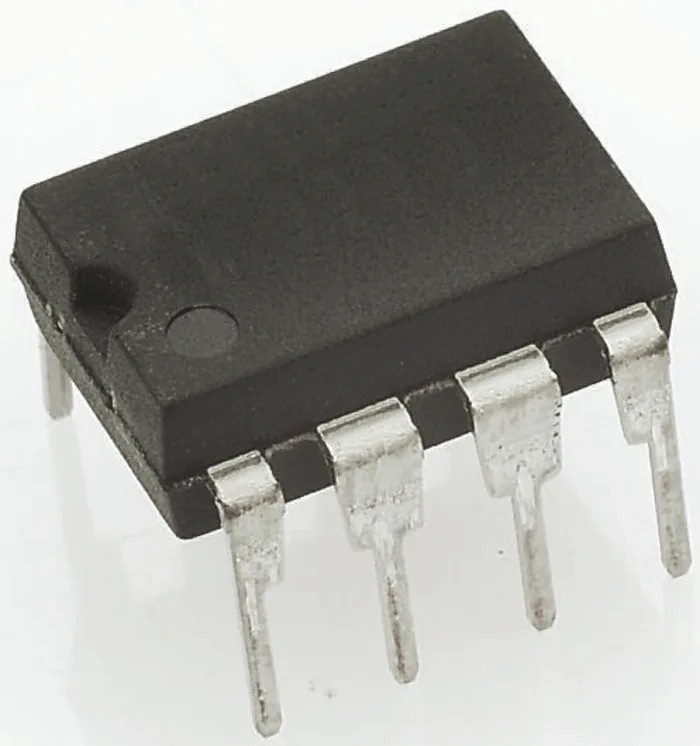

NVE 2-Channel Digital Isolator 110 Mbps, 2.5 kVrms Isolation Voltage, 5.5V Supply, 8-Pin PDIP IL711-2E
Specifications
| Country of Origin | India |
|---|---|
| Brand | NVE |
| Length | 10.2mm |
| Model | IL711-2E |
| Depth | 6.6mm |
| Width | 3.81mm |
| Mount Type | Through Hole |
| Series | IL |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 15μA |
| Number Of Channels | 2 |
| Rise Time | 4ns |
| Supply Voltage | 5.5V |
| Standards/Approvals | UL, IEC |
| Maximum Forward Voltage | 7V |
| Number of Pins | 8 |
| Maximum Data Rate | 110Mbps |
| Propagation Delay Time | 18ns |
| Package Style | PDIP |
Key Features
- Supports two digital isolation channels for robust signal transmission.
- Operating supply voltage of 5.5V ensures compatibility with varied electronic circuits.
- Comes in an 8-pin PDIP package suitable for through-hole mounting.
- Propagation delay time is 18 nanoseconds, enabling high-speed data transfer.
- Designed to operate within a temperature range of -40°C to 125°C for high reliability.
- Maximum forward voltage rating of 7V ensures stable operation under load.
- Maximum input current of 15 microamperes for low power consumption.
- Rise time of 4 nanoseconds allows for rapid signal response.
Product Description
NVE IL711-2E 2-Channel Digital Isolator is a high-speed, high-temperature digital isolator IC designed for electronic circuit applications requiring robust signal isolation. Featuring a maximum data rate of 110 Mbps and an isolation voltage of 2.5 kVrms, it provides reliable isolation between multiple circuit sections while maintaining signal integrity.
This device operates on a 5.5V supply voltage and comes packaged in an 8-pin PDIP designed for through-hole mounting. Its propagation delay of 18 nanoseconds and rise time of 4 nanoseconds make it highly suitable for high-speed digital communications requiring minimal latency.
The isolator supports temperatures ranging from -40°C to 125°C, ensuring dependable performance in harsh industrial, automotive, and laboratory environments. The maximum forward voltage rating of 7V and low input current of 15 microamperes promote energy-efficient operation.
Featuring certified compliance with UL and IEC standards and utilizing the IL711 / IL712 series, this product is ideal for electronic components, automation, and control equipment requiring isolation, noise reduction, and signal integrity enhancement.
Supports two isolated digital channels for enhanced signal safety. Compact 8-pin PDIP package for convenient through-hole PCB mounting. High isolation voltage of 2.5 kVrms provides excellent protection. Wide operating temperature range for versatile applications.
Low propagation delay and rise time enable fast data communication. Conforms to relevant UL and IEC industry standards. Low input current reduces power consumption. Suitable for industrial, automotive, laboratory, and manufacturing use cases.
EnvMart offers this NVE IL711-2E digital isolator as part of its extensive electronics components catalog. Explore further related digital isolators and electronic components under our Electronics & Electricals category to suit your industrial and product design needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 110 Mbps, allowing for high-speed digital communication.
It has a high isolation voltage rating of 2.5 kVrms, providing excellent protection between circuit sections.
This unit operates on a supply voltage of 5.5V, ensuring compatibility with various electronic circuits.
The dimensions of this model are 10.2mm in length, 6.6mm in depth, and 3.81mm in width.
This digital isolator supports two isolated digital channels for enhanced signal safety.
The rise time for the IL711-2E is 4 nanoseconds, enabling rapid signal response.
It has a maximum input current of 15 microamperes, promoting low power consumption.
The propagation delay time for this model is 18 nanoseconds, allowing for minimal latency in data transfer.
It comes in an 8-pin PDIP package, suitable for through-hole mounting on PCBs.
This product is certified compliant with UL and IEC standards, ensuring reliability in various applications.
The maximum forward voltage rating for the IL711-2E is 7V, ensuring stable operation under load conditions.
