| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | BAT54SWFILMY |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 300mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Series |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 900mV |

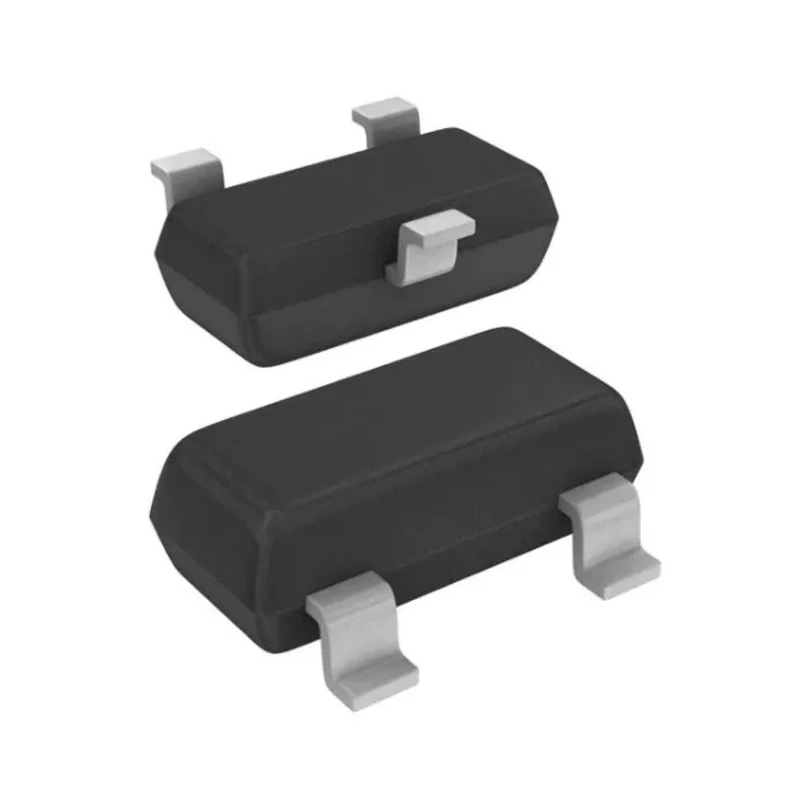

The STMicroelectronics BAT54SWFILMY is a high-quality Schottky Barrier Diode designed for demanding automotive and electronic applications requiring low forward voltage drop and fast switching capabilities. This diode is housed in a compact SOT-323 surface mount package, making it ideal for space-restricted printed circuit board layouts.
The device supports a maximum continuous forward current of 300 mA and can withstand a peak reverse repetitive voltage of 40 V. Its forward voltage drop is rated at a maximum of 900 mV, which contributes to its low power loss during operation. The diode operates reliably across a wide temperature spectrum from -40°C to 150°C, suitable for harsh automotive environments.
Equipped with negligible switching losses and extremely fast recovery times, the BAT54SWFILMY ensures efficient switching performance, minimizing energy waste and heat generation. It is AEC-Q101 qualified, certifying its suitability for automotive use, and RoHS compliant, guaranteeing environmentally friendly standards.
Key features include low conduction losses, low reverse losses, and low capacitance, making it perfect for switching power supplies, protection circuits, and high-frequency applications. The diode is PPAP capable, supporting quality assurance protocols in automotive manufacturing.
Low conduction and reverse losses ensure high efficiency. Negligible switching losses with extremely fast switching speed. AEC-Q101 qualified for automotive reliability. Wide ambient temperature range of -40°C to 150°C. SOT-323 surface mount package for compact PCB design.
Maximum continuous forward current of 300 mA. Peak reverse repetitive voltage of 40 V. RoHS compliant for environmental safety. PPAP capable for automotive manufacturing standards.
This diode is suitable for use in automotive electronics, consumer electronic devices, power management circuits, switching power supplies, and general-purpose rectification. It supports compact and efficient electronic designs by combining low power loss with robust performance.
Explore more Schottky Barrier Diodes and related semiconductor products at EnvMart for reliable solutions in your electronic and automotive projects.
