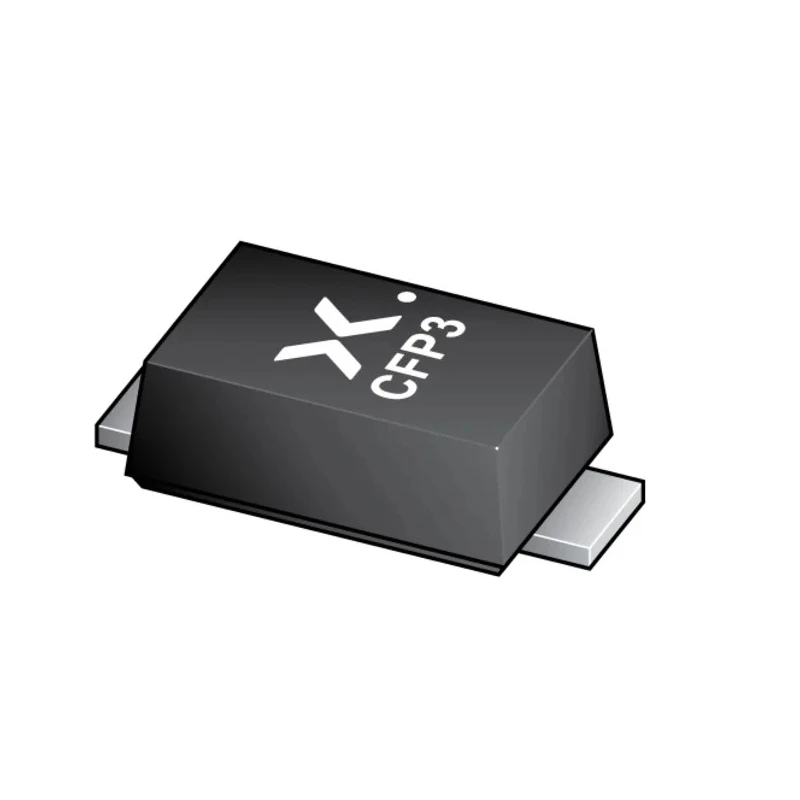

Nexperia Schottky Barrier Rectifier Diode 100 V 2 A Surface Mount CFP3 Package PMEG100T20ELRX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PMEG100T20ELRX |
| Mount Type | Surface |
| Series | PMEG100T20ELR |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 800mV |
Key Features
- Low forward voltage of 800 mV ensures high efficiency operation.
- Peak non-repetitive forward surge current up to 50 A enables robust transient performance.
- Operates reliably between -55°C and 175°C for demanding environments.
- Compact surface mount CFP3 package supports high power density applications.
- Compliant with RoHS and automotive AEC-Q101 standards for quality and reliability.
- Features low leakage current and low reverse recovery charge for improved switching.
- Ideal for power management and rectification in industrial and automotive electronics.
Product Description
The Nexperia PMEG100T20ELRX is a high-efficiency Schottky barrier rectifier diode designed for surface mount applications. Encapsulated in a CFP3 (SOD123W) small and flat lead plastic package, this diode offers a compact footprint suitable for modern PCBs where space saving is crucial.
This diode supports a maximum continuous forward current of 2 A and can withstand a peak reverse repetitive voltage of 100 V, making it suitable for a range of power management applications including voltage clamping, rectification, and protection circuits.
With a low forward voltage drop of 800 mV, the device improves energy efficiency, while the peak non-repetitive forward surge current rating of 50 A enables it to handle temporary overloads effectively.
The operating temperature range from -55°C up to 175°C ensures reliable performance in harsh industrial, automotive, and commercial environments. It complies with the RoHS directive and meets the automaker quality requirements under AEC-Q101 standard.
Other benefits include low reverse leakage current and reduced reverse recovery charge, minimizing power loss and electromagnetic interference in high-speed switching circuits. Low forward voltage drop enhances power efficiency.
High surge current tolerance for transient robustness. Wide operating temperature for versatile application conditions. Small surface mount CFP3 package for compact design. Complies with RoHS and automotive quality standards.
Typical applications encompass automotive power supplies, DC/DC converters, solar inverters, and general-purpose rectification in industrial electronics. Choose the Nexperia PMEG100T20ELRX diode from EnvMart for dependable, efficient Schottky diode performance in your electronics manufacturing.
Explore more products in our Schottky Barrier Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Nexperia PMEG100T20ELRX has a maximum continuous forward current of 2 A.
This model can withstand a peak reverse repetitive voltage of 100 V.
The maximum forward voltage drop for this diode is 800 mV.
It has a peak non-repetitive forward surge current rating of 50 A.
The diode operates reliably between -55°C and 175°C.
This model is encapsulated in a CFP3 package, which is suitable for surface mount applications.
Yes, it complies with RoHS and meets the automotive quality requirements under AEC-Q101 standard.
Typical applications include automotive power supplies, DC/DC converters, solar inverters, and general-purpose rectification in industrial electronics.
Low reverse leakage current helps minimize power loss and electromagnetic interference in high-speed switching circuits.
The diode configuration is single, designed for efficient rectification.
The country of origin for this diode is India.
