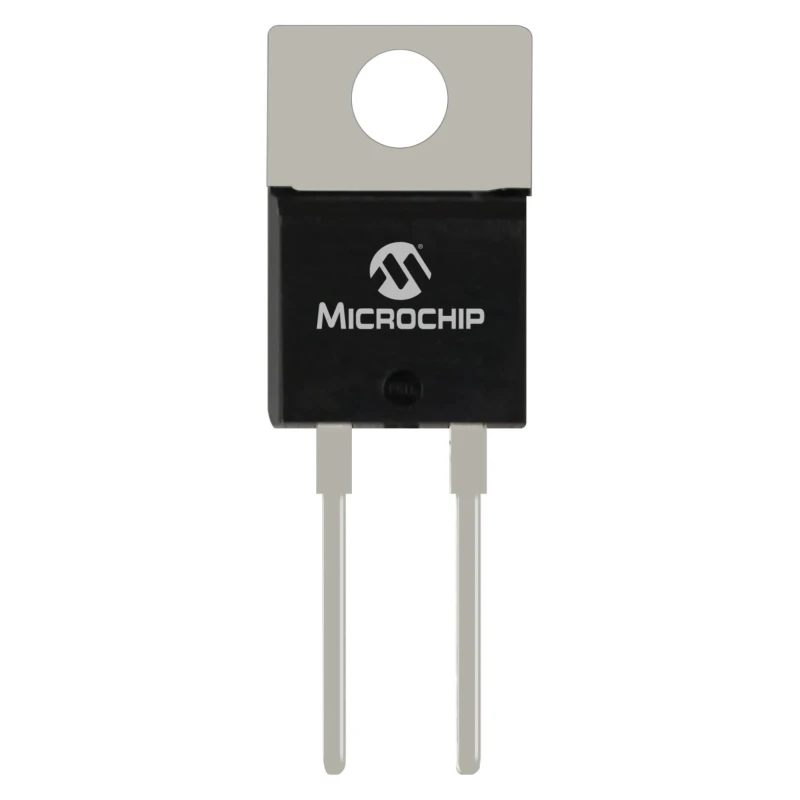

Microchip 700 V 10 A Schottky Barrier Schottky Diode TO-220 MSC010SDA070K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC010SDA070K |
| Mount Type | Through Hole |
| Series | MSC0 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 700V |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 58A |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- Features through hole mount type for easy PCB assembly.
- Supports maximum continuous forward current of 10 A.
- Operates with peak reverse repetitive voltage of 700 V.
- Maximum forward voltage drop is 1.8 V, ensuring low power losses.
- Wide operating temperature range from -55°C to 175°C.
- High surge current capacity rated at 58 A peak non-repetitive.
- Complies with RoHS standards for environmental safety.
- Designed primarily for power factor correction, freewheeling, and anti-parallel diode applications.
Product Description
Microchip MSC010SDA070K is a Schottky Barrier Diode featuring a 700 V peak reverse voltage and 10 A maximum continuous forward current. Packaged in TO-220 and designed for through hole mount, this semiconductor device supports high frequency switching applications such as power factor correction and freewheeling diode roles.
This diode offers low forward voltage drop of 1.8 V with negligible reverse recovery, which makes it highly efficient for switching power supplies and other industrial electronic applications. Its robust temperature range from -55°C to 175°C allows reliable operation in harsh conditions.
With a surge current capability of 58 A, it can handle transient power spikes without damage. The device is fully RoHS compliant, ensuring it meets environmental protection directives.
Typical use cases include industrial power conversion, automotive electronics (non-automotive standard compliant), and other power electronics systems requiring fast switching and low loss diodes.
Through hole mounting for easy installation. TO-220 package enhances heat dissipation. Low leakage current and no reverse recovery losses. High avalanche energy rating for durability. Suitable for industrial, manufacturing, and electronic circuit applications.
Microchip offers this diode as part of their MSC0 series, representing reliability and performance in discrete semiconductor components. Find more semiconductor and diode solutions in the relevant categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 10 A.
This model has a peak reverse repetitive voltage rating of 700 V.
The maximum forward voltage drop is 1.8 V, which helps in minimizing power losses.
It has a peak non-repetitive forward surge current capacity rated at 58 A.
The operating temperature range is from -55°C to 175°C.
This model supports through hole mounting for easy PCB assembly.
It is packaged in a TO-220 configuration, which enhances heat dissipation.
Yes, it complies with RoHS standards for environmental safety.
It is suitable for power factor correction, freewheeling, and other industrial electronic applications.
This diode is part of the MSC0 series from Microchip.
This model is a Schottky rectifier, known for its low forward voltage drop and fast switching capabilities.
The country of origin for this diode is India.
