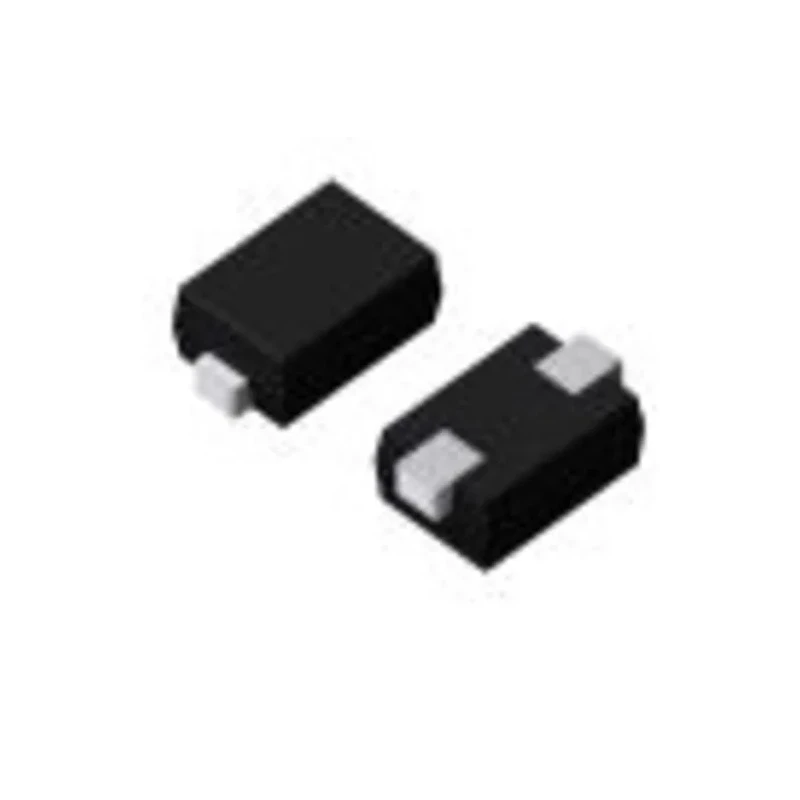

ROHM Schottky Diode 30 V 100 mA Surface Mount 2-Pin Low Forward Voltage RB530CM-30T2R

The ROHM RB530CM-30T2R is a high reliability Schottky Barrier Diode designed for surface mount applications requiring low forward voltage and efficient rectification. It supports a maximum continuous forward current of 100 mA and a peak reverse repetitive voltage of 30 V, making it suitable for compact power conversion and voltage clamping circuits.

With its ultra-small mold type (VMN2M), the diode offers exceptional space saving on printed circuit boards. The device features a low forward voltage drop of 460 mV which reduces conduction losses and enhances efficiency in power-sensitive applications.

Its peak non-repetitive forward surge current rating of 500 mA allows it to handle transient current spikes reliably. The extremely low peak reverse current of 300 nA minimizes leakage currents, beneficial for precision circuitry and low power designs.

The RB530CM-30T2R can operate continuously at temperatures up to 150°C, suitable for demanding industrial, automotive, and high-temperature environments. Its 2-pin surface mount package supports automated PCB assembly workflows, increasing manufacturing throughput and reliability.

Low forward voltage of 460 mV ensures high efficiency. Maximum continuous forward current of 100 mA for reliable operation. Peak reverse repetitive voltage of 30 V provides robust blocking capability. Compact dimensions of 0.91 mm length, 0.65 mm width, and 0.4 mm height allow for space-saving PCB designs.

Surface mount type enhances mounting efficiency and reliability. Maximum operating temperature up to 150°C supports harsh environments. Peak non-repetitive forward surge current of 500 mA for transient conditions. Extremely low peak reverse current of 300 nA minimizes leakage losses.

Single diode configuration ideal for rectification purposes. Schottky rectifier type ensures fast switching and low losses.

This diode is commonly used in electronic components and semiconductor assemblies across power electronics, automotive, industrial automation, and telecommunications sectors where efficient rectification and low voltage drop are critical.
