| Country of Origin | Malaysia |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 2.2mm |
| Model | BAT54AW,115 |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | BAT54 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Common Anode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 800mV |
| Peak Reverse Recovery Time trr | 5ns |

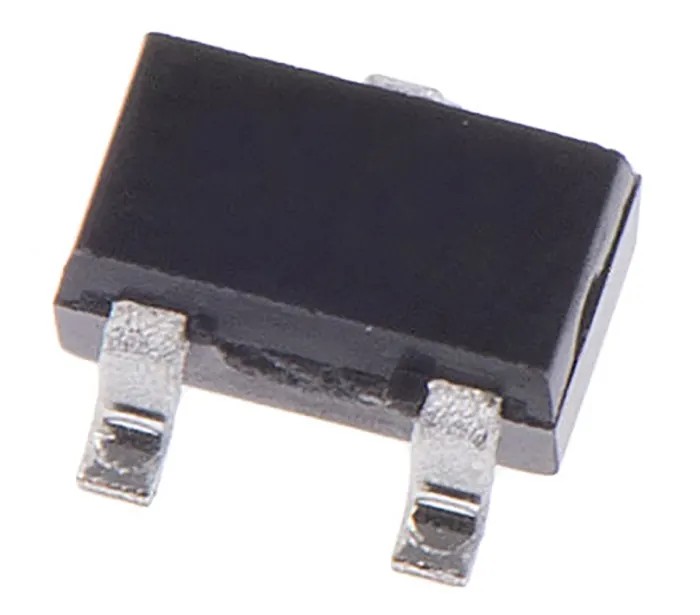

Nexperia BAT54AW,115 is a high-efficiency Schottky Barrier Diode in a compact 3-pin SC-70 surface mount package. Rated for a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V, this diode features a low forward voltage drop and negligible power switching losses making it ideal for low voltage rectification and high frequency applications.
This diode exhibits excellent performance with a peak reverse current of only 2 μA and a fast reverse recovery time of 5 ns. It supports operation in temperatures ranging from -65°C up to 125°C, thereby ensuring durability in industrial, automotive, and consumer electronics environments. The common anode diode configuration and compliance with AEC-Q101 automotive standards make it a reliable choice for vehicle and high-reliability electronic circuits.
The SC-70 package measures 2.2 mm in length, 1.35 mm in width, and 1.0 mm in height, offering an ultra-compact footprint suitable for space-limited circuit designs. Manufactured in Malaysia, it meets stringent quality and performance criteria required for semiconductor applications.
Key advantages of this diode include low capacitance, minimal leakage current, and high junction temperature tolerance, which combine to optimize overall circuit efficiency and thermal management. This product is commonly utilized in power management, signal rectification, and protection circuits within industrial, automotive, and consumer electronics sectors.
Compact 3-pin SC-70 surface mount package. 200 mA continuous forward current rating. 30 V peak reverse voltage specification. Fast 5 ns peak reverse recovery time. Wide temperature operating range from -65°C to 125°C. Meets automotive AEC-Q101 standard for automotive applications.
Low forward voltage and power losses for efficient circuit operation.
This Schottky Diode is available for efficient assembly and integration, meeting high-volume production demands. Explore EnvMart’s extensive Schottky Diodes & Rectifiers category for compatible components and solutions.
