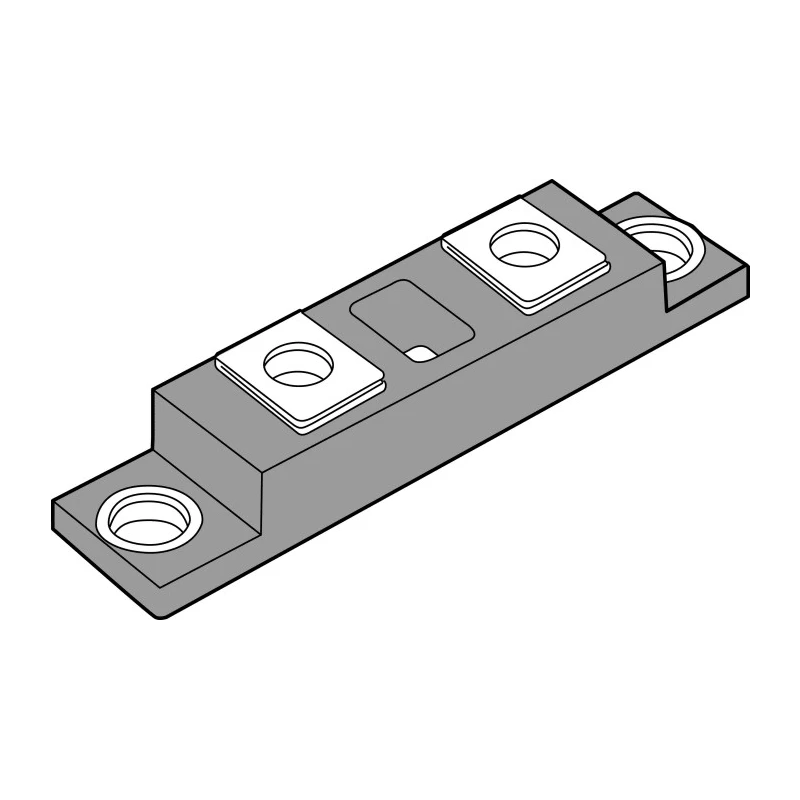

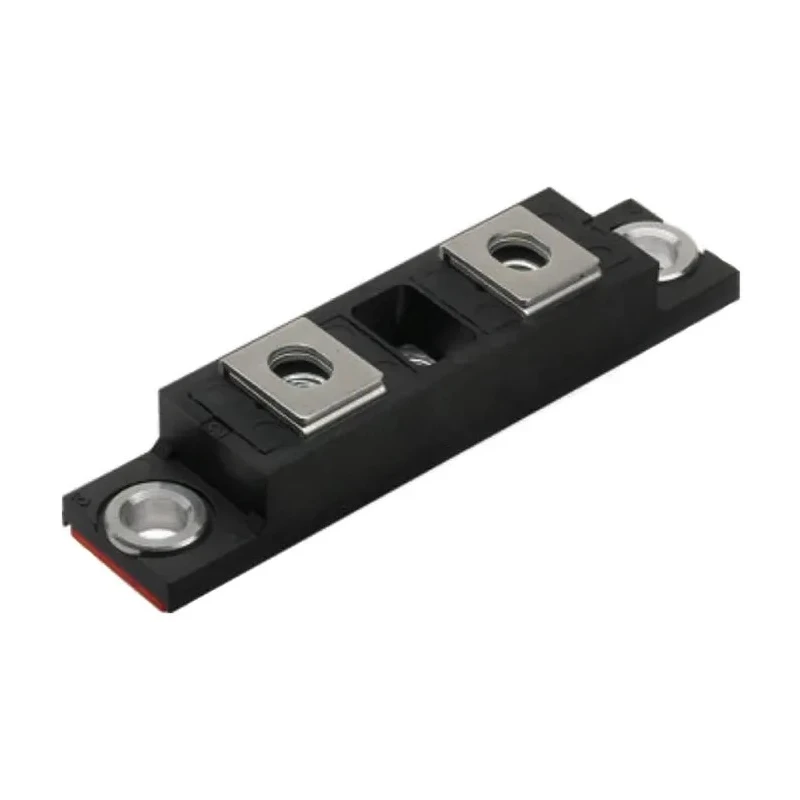

Vishay 45 V 200 A Schottky Diode 3-Pin TO-244 VS-200CNQ045PBF

Vishay VS-200CNQ045PBF is a high-performance Schottky diode designed for demanding electronic applications requiring fast switching and low forward voltage drop. Packaged in a TO-244 casing, this 3-pin diode supports a maximum continuous forward current of 200 A and a peak reverse repetitive voltage of 45 V. The robust design ensures reliable operation within a wide temperature range from -55°C to 150°C, making it suited for harsh industrial environments.

Schottky diodes offer extremely fast recovery times and low voltage conduction drops, significantly improving efficiency in power rectification circuits. This diode, part of the VS series, features a common cathode configuration and supports surge currents up to 26 kiloamperes, providing resilience to transient electrical stresses.

The compact physical dimensions (93 mm length, 21 mm width, 17.5 mm height) enable integration into panel-mounted assemblies with limited space. Its low forward voltage drop of 0.73 V reduces thermal losses, enhancing overall system performance in industrial power supplies, automotive electronics, and fast-switching power converters.

Applications include industrial power rectification, power supplies, renewable energy systems, automotive electronics, and other high-current electronic circuits demanding high reliability and efficiency. The diode is free from automotive-specific certifications but conforms to Vishay’s stringent semiconductor quality standards.

Choose Vishay’s VS-200CNQ045PBF Schottky diode for stable, high-current switching with minimal power loss in industrial and commercial electronic designs. The diode features a common cathode configuration with 3 pins for panel mounting.

Maximum continuous forward current is 200 A ensuring high power handling. Peak reverse repetitive voltage rated at 45 V provides robust voltage tolerance. Maximum forward voltage drop is 0.73 V, minimizing power loss during conduction.

Designed for operation from -55°C to 150°C ensuring reliability in harsh environments. Peak non-repetitive forward surge current capability is 26 kA allowing transient overload handling. Compact dimensions: 93 mm length, 21 mm width, and 17.5 mm height suitable for dense PCB layouts.

Low thermal resistance and fast recovery characteristics enable efficient high-frequency switching. Ideal for industrial power rectification and electronic conversion uses. Explore more Vishay semiconductor components and Schottky Diode rectifiers in our catalog for your industrial and laboratory power electronics applications.
