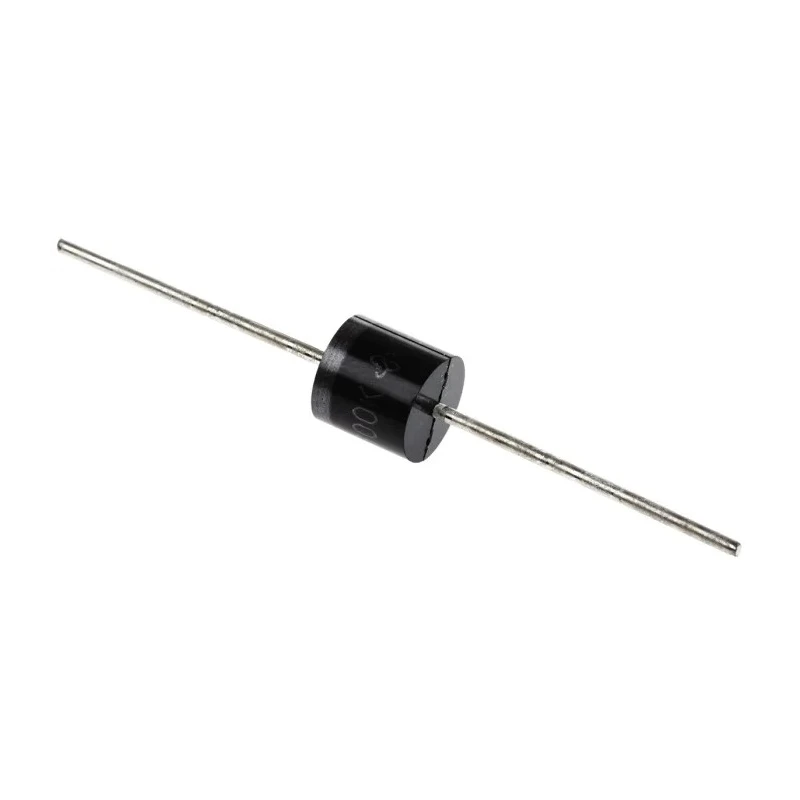

Vishay General Purpose Diode 800 V 6 A 2-Pin Through Hole P600K-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 9.1mm |
| Brand | Vishay |
| Height | 9.1mm |
| Length | 9.1mm |
| Model | P600K-E3/54 |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | P600K |
| Maximum Operating Temperature | 150°C |
| Case | P600, void-free molded epoxy body |
| Package Type | P600 |
| Minimum Operating Temperature | -50°C |
| Polarity | Color band denotes cathode end |
| Terminals | Matte tin plated leads, solderable per |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 6A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 2.5μs |
Key Features
- Low forward voltage drop enhances efficiency in power applications.
- High forward current capability supports demanding electrical loads.
- Robust solder dip rating of 275 °C max for 10 seconds ensures reliable assembly.
- Compact P600 plastic package with molded epoxy body for durability.
- Wide operating junction temperature range from -50°C to 150°C.
- Matte tin plated leads provide excellent solderability.
- Color band indicates cathode polarity for easy identification.
- Compliance with RoHS standards ensures environmental safety.
Product Description
Vishay P600K-E3/54 is a new general purpose diode designed for reliable rectification in power supplies, inverters, converters, and freewheeling diode applications. Featuring a single diode configuration in a compact 2-pin P600 through hole package, this diode delivers 6 A maximum continuous forward current and a peak reverse repetitive voltage of 800 V.
The device offers a low forward voltage drop of 1.3 V and low leakage current, improving overall circuit efficiency. It withstands a peak non-repetitive forward surge current of up to 400 A and exhibits a fast peak reverse recovery time of 2.5 μs, making it suitable for high-speed switching environments.
The molded epoxy body is void-free and meets UL 94 V-0 flammability requirements, ensuring safety and robustness in industrial and commercial applications. The leads are matte tin plated for ease of soldering per J-STD-002 and JESD 22-B102 standards. The diode operates reliably in extreme temperature ranges from -50°C to +150°C and includes a color band for clear cathode identification.
This Vishay diode series is compliant with RoHS directives, reflecting its environmental friendliness. Its typical applications span industrial electronics, power management systems, HVAC units, manufacturing machinery, and general electronic assemblies requiring dependable rectifier solutions.
Low forward voltage drop enhances efficiency in power applications. High forward current capability supports demanding electrical loads. Robust solder dip rating of 275 °C max for 10 seconds ensures reliable assembly. Compact P600 plastic package with molded epoxy body for durability.
Wide operating junction temperature range from -50°C to 150°C. Matte tin plated leads provide excellent solderability. Color band indicates cathode polarity for easy identification. Compliance with RoHS standards ensures environmental safety.
Set contains one Vishay P600K-E3/54 general purpose diode in a 2-pin through hole configuration. Ideal for electronic components assemblies, offering consistent performance and longevity. Explore more electronic semiconductors and Diodes available in the Vishay range on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay P600K-E3/54 diode is 6 A.
This model has a peak reverse repetitive voltage rating of 800 V.
The maximum forward voltage drop for the P600K-E3/54 is 1.3 V.
The diode operates reliably in a temperature range from -50°C to +150°C.
It can withstand a peak non-repetitive forward surge current of up to 400 A.
The Vishay P600K-E3/54 diode comes in a compact 2-pin P600 through hole package.
The peak reverse recovery time for this diode is 2.5 μs.
The leads are matte tin plated, which provides excellent solderability.
This unit features a single diode configuration.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
The dimensions of the diode are 9.1 mm in diameter, height, and length.
This diode is suitable for applications such as power supplies, inverters, converters, and freewheeling diode applications.
