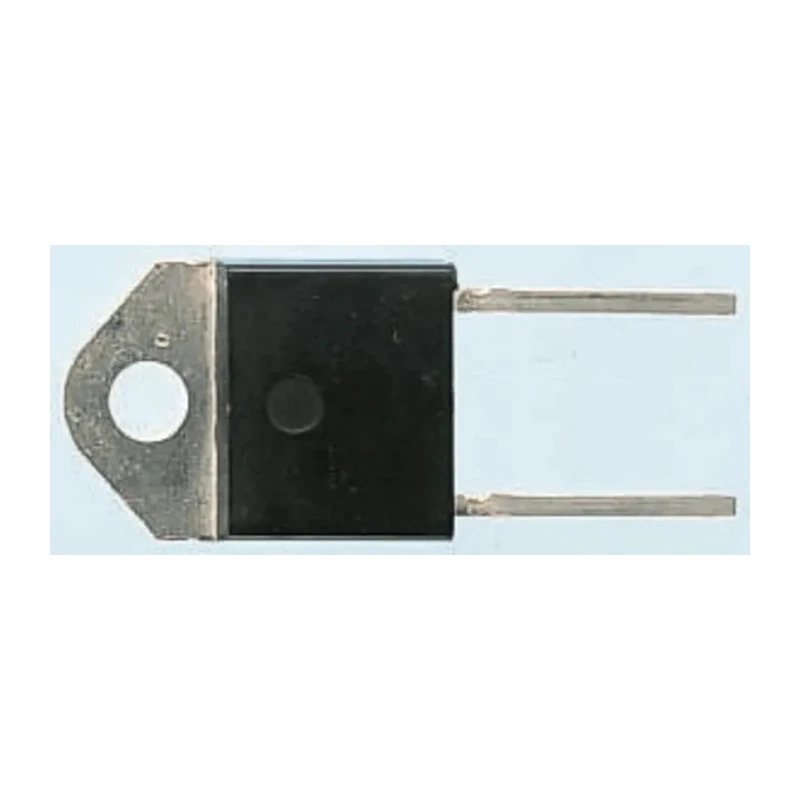

STMicroelectronics 600 V 30 A Switching Diode Through Hole 2-Pin DOP3I STTH3006PI

STMicroelectronics STTH3006PI is a high-performance switching diode designed for power electronic applications requiring high voltage and current ratings. This diode features a maximum continuous forward current of 30 amperes and a peak reverse repetitive voltage rating of 600 volts. Packaged in a 2-pin DOP3I through hole format, it integrates seamlessly into electronic circuits requiring reliable rectification capabilities.

The diode provides a peak non-repetitive forward surge current of 160 amperes and a maximum forward voltage drop of 1.85 volts, balancing power efficiency and thermal management. Fast switching is supported by a peak reverse recovery time of 70 nanoseconds, making it suitable for power switching and rectifier circuits in industrial, laboratory, and electronic manufacturing environments.

Operating temperatures range broadly from -65°C to 175°C, ensuring stable performance under demanding thermal conditions. The single diode configuration supports versatile use in discrete semiconductor applications. Its physical dimensions - height 12.85 mm, length 15.5 mm, width 4.6 mm - enable compact and robust PCB integration.

The STTH3006PI diode is ideal for use in power supplies, rectification tasks, and switching circuits requiring fast recovery times and high current handling capabilities. It supports various electronic and industrial systems, including power management, manufacturing automation, and control equipment. The through hole mounting facilitates easy assembly and replacement in electronic component systems.

This diode is supplied in a package designed for improved mechanical durability and thermal dissipation, making it suitable for demanding electronic and electrical engineering applications.

This diode features a maximum continuous forward current of 30 amperes. It supports a peak reverse repetitive voltage of 600 volts. The package type is DOP3I with a through hole mount. The peak non-repetitive forward surge current is rated at 160 amperes.

Maximum forward voltage drop is 1.85 volts ensuring efficient rectification. The peak reverse recovery time is fast at 70 nanoseconds for high switching performance. Operates reliably over a temperature range from -65°C to 175°C.

The diode configuration is single and designed for switching applications. Physical dimensions are 12.85 mm height, 15.5 mm length, and 4.6 mm width. Ideal for industrial and electronic components applications requiring robust diode performance.
