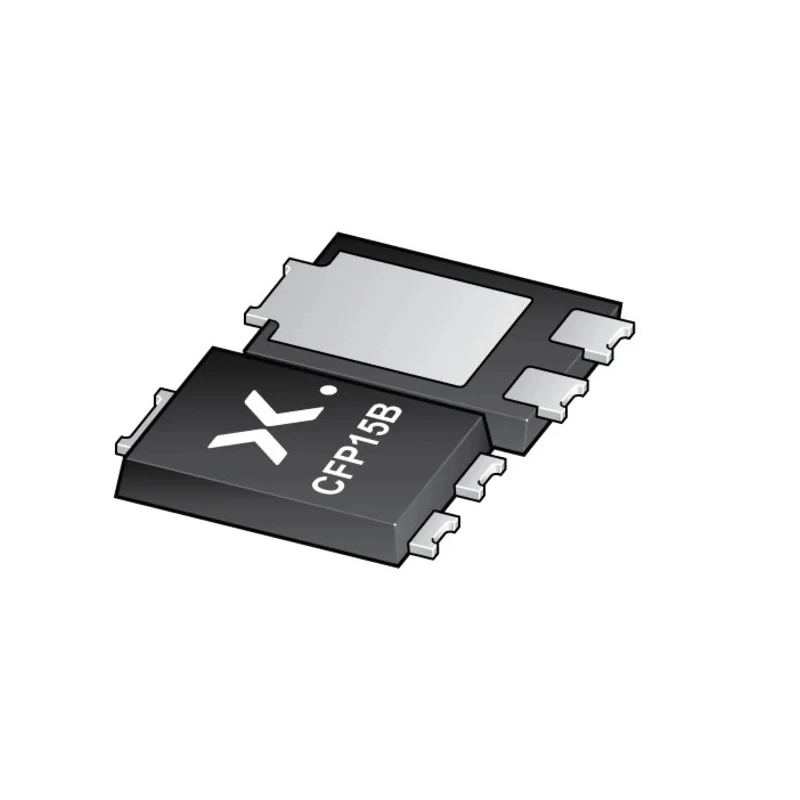

Nexperia Schottky Barrier Rectifier Diode 60 V 2 A Surface Mount CFP15B Package PMEG060T040CLPEZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PMEG060T040CLPEZ |
| Mount Type | Surface |
| Series | PMEG060T040CLPE |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Peak Non-Repetitive Forward Surge Current Ifsm | 110A |
| Maximum Forward Voltage Vf | 620mV |
Key Features
- Maximum continuous forward current of 2 A per diode.
- Peak reverse repetitive voltage up to 60 V.
- Low forward voltage of 620 mV ensures minimal power loss.
- Wide operating temperature range from -55°C to 175°C.
- High surge current capability up to 110 A peak non-repetitive forward surge current.
- RoHS compliant and meets Automotive AEC-Q101 standard.
- Encapsulated in a CFP15B power and flat lead SMD plastic package.
- Clip-bond technology for enhanced power capability.
Product Description
Nexperia PMEG060T040CLPEZ is a high-efficiency Schottky Barrier Rectifier Diode designed for surface mount applications requiring fast switching and low forward voltage drop. Packaged in a CFP15B (SOT1289B) power and flat lead plastic package, it provides excellent thermal performance and high reliability.
This diode supports a maximum continuous forward current of 2 A per diode and a peak repetitive reverse voltage of 60 V, making it suitable for general application power rectification and protection circuits. The low forward voltage of 620 mV reduces conduction losses, improving energy efficiency in power electronics.
Operating temperature ranges from -55°C to 175°C allow deployment in demanding industrial and automotive environments. Its peak non-repetitive forward surge current capability of 110 A enables handling of transient overloads safely.
The device is RoHS compliant and conforms to the automotive standard AEC-Q101, ensuring compatibility with automotive-grade specifications.
The compact CFP15B surface mount package features clip-bond technology for enhanced power handling and flat leads for easy PCB assembly. This diode is ideal for industrial, automotive, and consumer electronics requiring reliable low voltage rectification and switching.
Maximum continuous forward current of 2 A per diode. Peak reverse repetitive voltage up to 60 V. Low forward voltage of 620 mV reduces power losses. Wide temperature range from -55°C to 175°C. High surge current rating of 110 A ensures reliability.
RoHS compliant and meets automotive AEC-Q101 standard. Compact CFP15B surface mount package. Ideal for industrial and automotive power applications. Explore the comprehensive range of Nexperia Schottky Diodes & Rectifiers on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 2 A per diode.
This model has a peak reverse repetitive voltage rating of 60 V.
The forward voltage drop is 620 mV, which helps to minimize power losses.
It operates within a temperature range from -55°C to 175°C.
The diode can handle a peak non-repetitive forward surge current of up to 110 A.
It is encapsulated in a CFP15B power and flat lead surface mount package.
Yes, it is RoHS compliant and meets the automotive standard AEC-Q101.
This diode is suitable for general application power rectification and protection circuits in industrial and automotive environments.
The package features clip-bond technology for enhanced power handling capabilities.
The brand is Nexperia, and the model is PMEG060T040CLPEZ.
The low forward voltage of 620 mV reduces conduction losses, improving energy efficiency in power electronics.
The country of origin for this diode is India.
