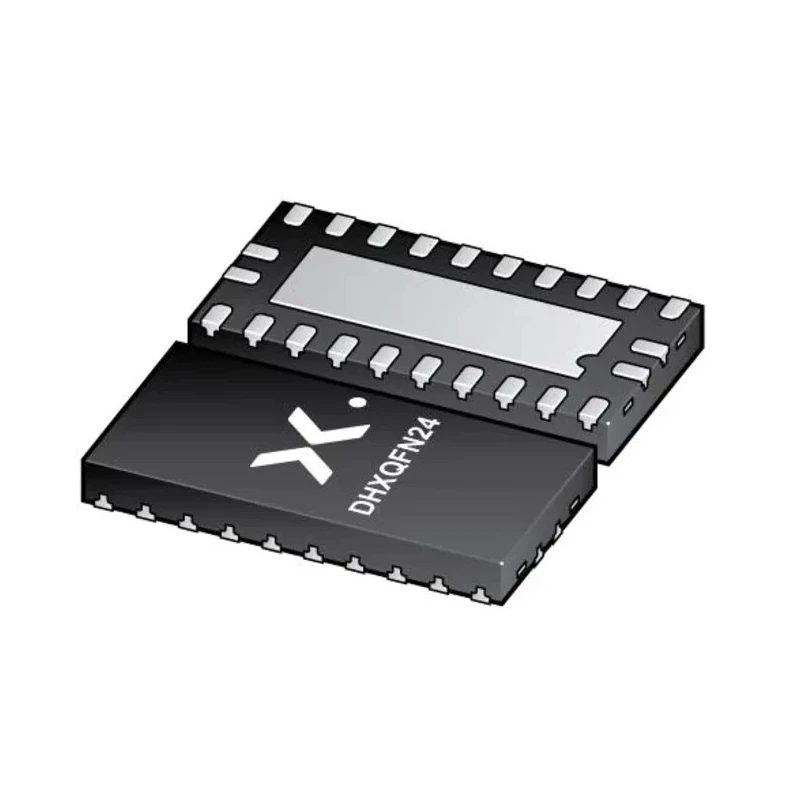

Nexperia Voltage Level Translator 18-Element 4-Pin Surface Mount DHXQFN24 0.8-3.6 V 74AVC8T245BZX

The Nexperia 74AVC8T245BZX is a high-performance voltage level translator designed to enable seamless bidirectional voltage translation between differing low voltage systems. This model features 18 elements distributed across two 8-bit input-output ports, complemented by direction control (DIR) and output enable (OE) inputs, allowing flexible signal routing. Both supply pins VCC(A) and VCC(B) accommodate voltages between 0.8 V and 3.6 V, enabling compatibility with a wide spectrum of voltage nodes such as 0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V.

This device supports CMOS and LVTTL output logic types and provides a maximum low-level output current of 50 mA, catering to robust drive requirements. The circuit includes IOFF functionality supporting partial power-down mode, thereby minimizing power consumption during inactive states. Robust latch-up immunity exceeding 100 mA per JESD 78 Class II standards ensures reliable operation under electrical stress conditions.

The package type is DHXQFN24 with a compact footprint of 7.9 mm length, 150 μm width, and 4.5 mm height, optimized for high-density PCB layouts via surface mount technology. Its operating temperature range from -40°C to 125°C makes it suitable for various industrial and automotive environments.

Its primary application includes electronic systems requiring voltage level shifting between logic devices of different voltage standards, power management modules, and semiconductor control systems. Its compliance with IEC61000-4-2 and RoHS ensures quality and environmental safety.

Supports dual regulated supply voltages for versatile translation. Bidirectional data ports with robust direction and enable controls. Partial power-down operation reduces energy consumption. High latch-up immunity for reliable industrial applications.

Compact DHXQFN24 surface mount package for efficient PCB integration. Wide temperature range suitable for automotive and industrial use. Compliant with IEC61000-4-2 and RoHS standards.

This voltage level translator is ideal for use in semiconductor logic interfacing, power management systems, and other electronic applications requiring regulated voltage level shifting. For a broad selection of semiconductor components including voltage level translators, visit EnvMart’s electronics section.
