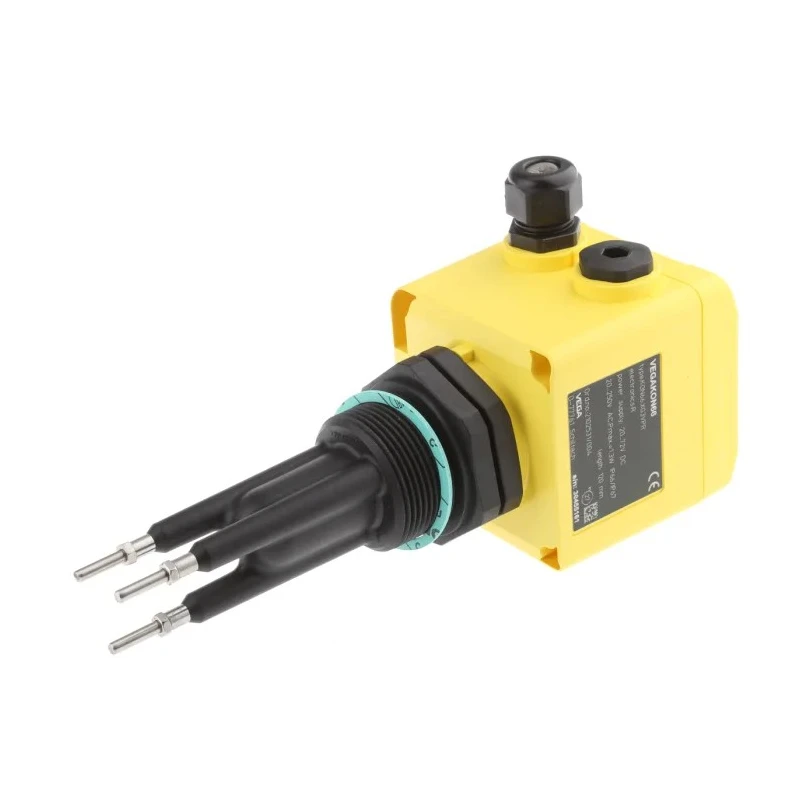

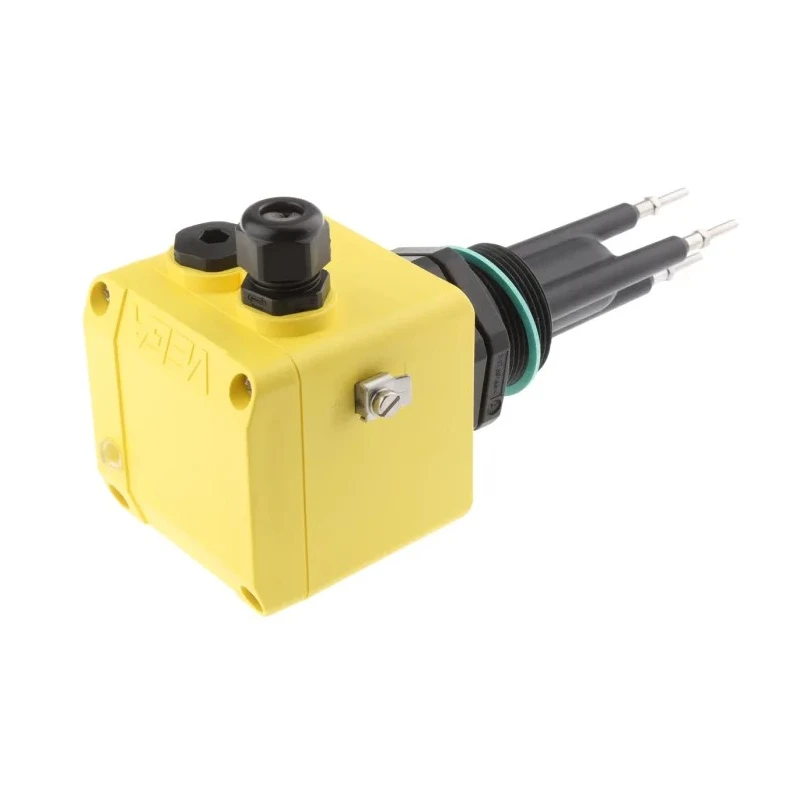

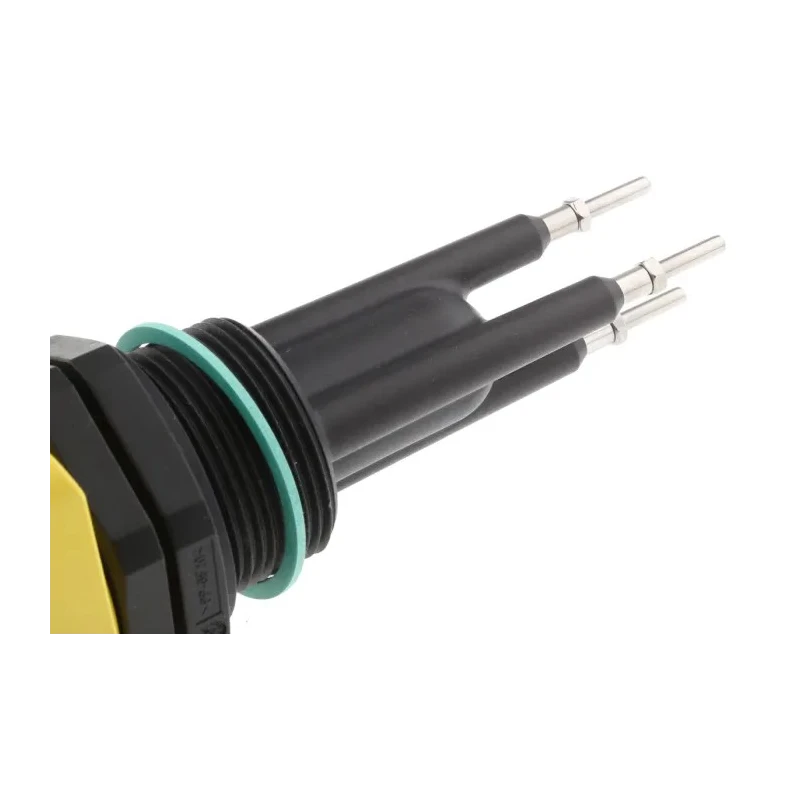

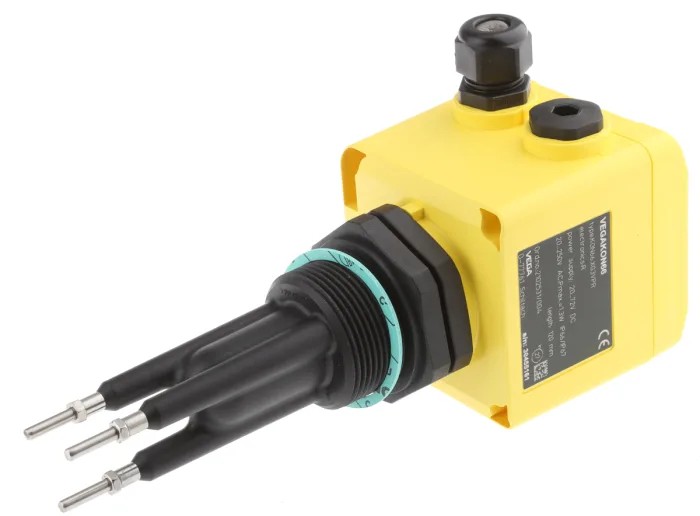

Vega Conductive Level Switch Vertical Plastic Housing VEGACON 66 Series KON66.XG3VPR

Free Delivery in India | Lowest Global Shipping Charges

Vega Conductive Level Switch Vertical Plastic Housing VEGACON 66 Series KON66.XG3VPR

Name: Vega Conductive Level Switch Vertical Plastic Housing VEGACON 66 Series KON66.XG3VPR
Brand: Vega
SKU: 424768
Price: 858.64 USD
Availability: InStock



Category Level Switch Brand Vega Condition New

Specifications

Country of Origin	India
Brand	Vega
Model	KON66.XG3VPR
Mount Type	Vertical
Housing Material	Plastic
Series	VEGACON 66
Maximum Operating Temperature	100°C
Maximum Pressure	6bar
Minimum Operating Temperature	-40°C
Maximum Current	3A
Modes	maximum detection, overfill (A) or min detection dry running protection (B)
Device Type	Conductive
Maximum dc Voltage	72V dc
Standards/Approvals	CE
Maximum AC Voltage	250V ac
Housing/Protection	Plastic

Key Features

Equipped with a relay (SPDT) output for reliable control.
Designed specifically for monitoring full or empty pipelines with multiple rods for pump control.
Supply voltage ranges from 24VAC to 250VAC and 20VDC to 72VDC.
Process fitting is thread G1½, DIN3852-A/PPN for secure installation.
Features selectable sensitivity between 100ohm and 300kohm and an external LED for switch status indication.
Adjustable integration time up to 20 seconds enhances flexibility in measurements.
Constructed of high-quality plastic-coated aluminium for durability and protection.
Suitable for applications involving almost all bulk solids and conductive liquids.

Product Description

Vega KON66.XG3VPR conductive level switch is engineered with precision to measure conductive liquids in vertical mounting configurations. It features a robust plastic housing that offers excellent protection and durability in industrial environments. This level switch is ideal for controlling pump operations by using multiple rods designed to ensure reliable measurements in full or empty pipelines.

The device supports a broad supply voltage range from 24VAC to 250VAC and 20VDC to 72VDC, offering versatile integration possibilities. The process fitting uses thread G1½, DIN3852-A/PPN standards providing secure and standardized installation for various industrial setups.

Key benefits include selectable sensitivity settings between 100ohm and 300kohm, an external LED for clear switch status visibility, and an adjustable integration time up to 20 seconds. Constructed from high-quality plastic-coated aluminium, the switch combines durability with corrosion resistance, making it suitable for a wide range of conductive liquid measurement applications.

This switch is applicable across multiple industrial sectors, including bulk solids processes and fluid monitoring systems, supporting efficient and safe operation compliance with CE certification.

Relay (SPDT) output ensures reliable pump or alarm control. Multiple rods allow for effective level monitoring. Wide voltage compatibility enhances installation flexibility. Standardized process fitting for industry compliance.

Selectable sensitivity and adjustable integration time offer operational adaptability. Durable plastic-coated aluminium construction for extended service life. External LED switch status indicator for easy monitoring. Capable of operating under temperatures from -40°C to 100°C.

Maximum operating pressure of 6 bar supports robust industrial conditions. CE certified for quality assurance.

This level switch is ideal for industrial, manufacturing, water treatment, and automation use cases that require accurate conductive liquid level detection. Explore our comprehensive range of sensors and Level Switches at EnvMart for enhanced process control and reliability.
