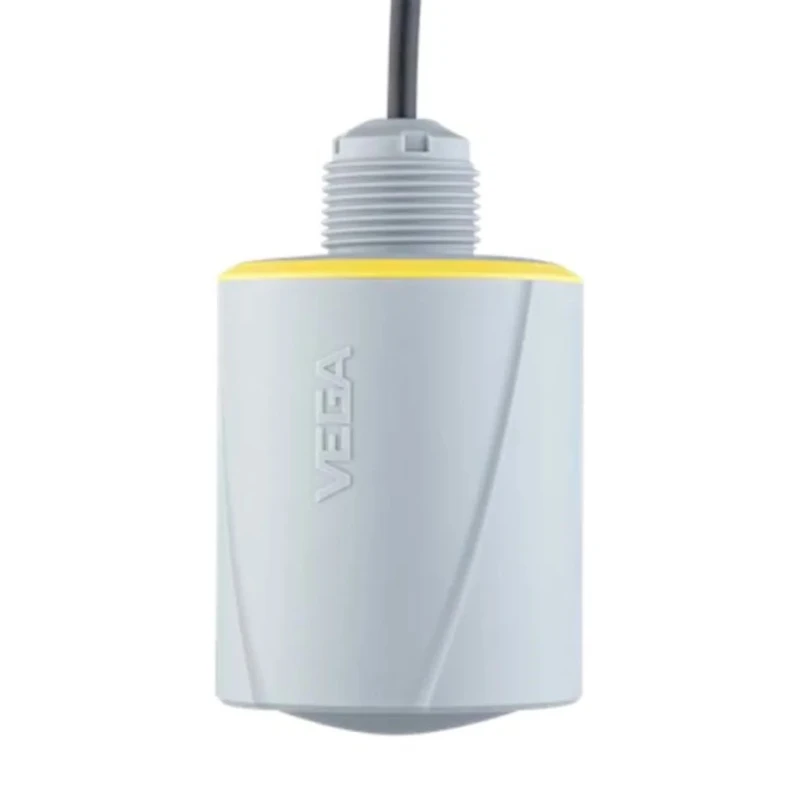

Vega VEGAPULS C23 Series Radar Level Sensor Threaded Mount Polyvinyl Fluoride Housing Fluorelastomer Gasket RA - 222 22R

Vega RA - 222 22R VEGAPULS C23 Series Radar Level Sensor is engineered for precise, non-contact level measurement using advanced 80 GHz radar technology. Its robust design with threaded mounting, polyvinyl fluoride housing, and fluorelastomer gasket materials provides exceptional resistance to harsh chemical environments and weather conditions.

Operating reliably over a wide temperature range from -40°C to 120°C, this radar sensor is ideal for industrial applications requiring high protection, such as water treatment facilities, pumping stations, rain overflow basins, and flow measurement in narrow channels. The sensor ensures maintenance-free, continuous operation with superior focusing of radar signals, delivering reliable level data in diverse liquid applications.

The integrated Bluetooth 5.0 standard interface facilitates seamless wireless communication and configuration, enhancing operational flexibility. Rated for maximum pressures up to 3 bar and operating at a maximum DC voltage of 35 V with 20 mA current consumption, the sensor balances performance with efficient power management.

Built to meet stringent IP68 (3 bar) and UL 50 Type 6P standards, it guarantees robust protection against dust ingress and water immersion, ensuring durability in demanding industrial environments.

The sensor utilizes 80 GHz radar technology for accurate and maintenance-free level measurement. Threaded mount construction with chemical-resistant polyvinyl fluoride housing and fluorelastomer gasket. Wide operating temperature range between -40°C and 120°C suitable for extreme conditions.

Bluetooth 5.0 interface enables easy wireless setup and data access. Rated for pressure conditions up to 3 bar supporting various industrial fluids. Power specifications include 35 V DC maximum voltage and 20 mA maximum current.

Compliant with IP68 and UL 50 Type 6P for dust and water protection. Applications include water treatment, pumping stations, river and lake monitoring, and industrial fluid level control.

This sensor represents a reliable choice for industrial, environmental, and municipal level sensing tasks, providing accuracy and rugged durability in a compact, easy-to-install form factor. Explore more products in our Level Sensor category for additional solutions.
