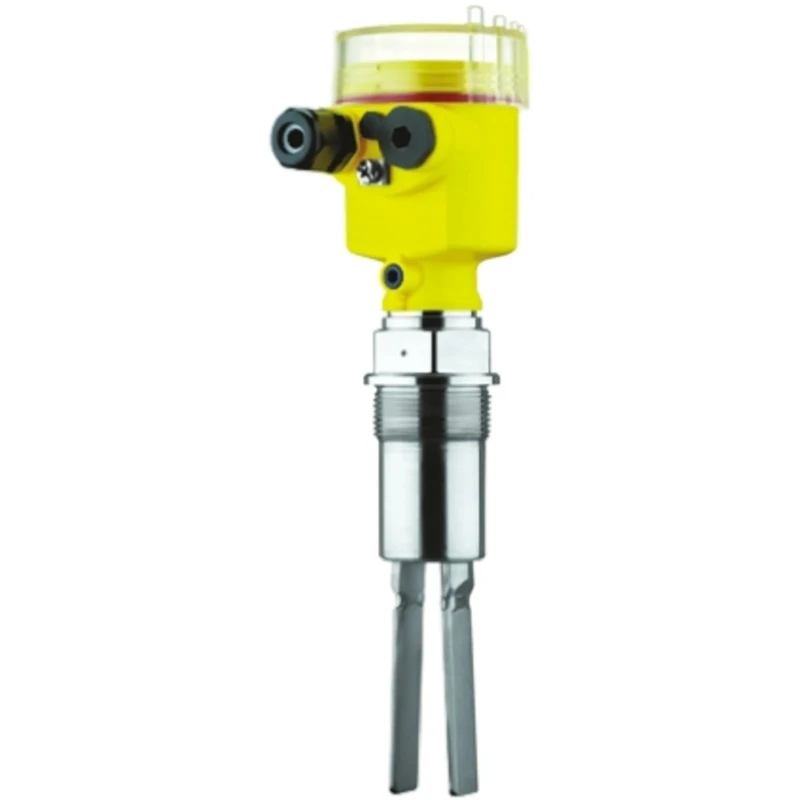

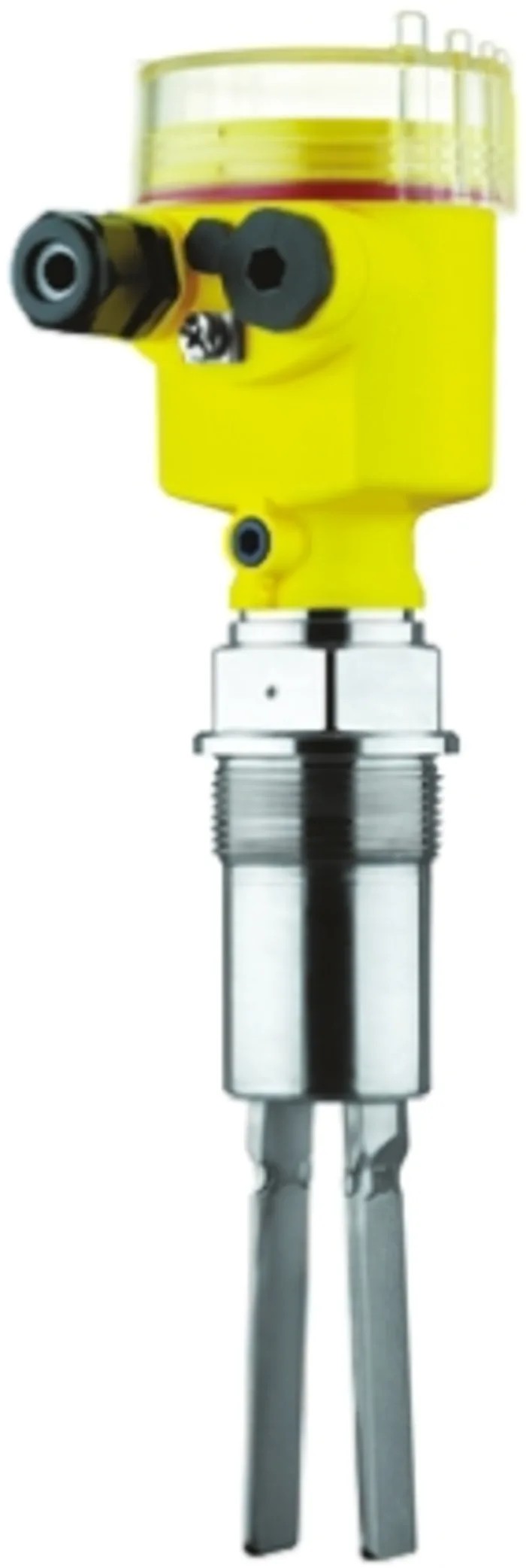

Vega VEGAWAVE 61 Series Vibrating Level Switch Cable Mount with Plastic Polybutylene Terephthalate Housing WAVES61.EEJ2RA

Vega WAVES61.EEJ2RA is a vibrating level switch designed for cable mounting applications in bulk solids and powder level detection. It incorporates a piezo crystal energized relay output (DPDT) which vibrates at a fixed amplitude. When the vibrating rod is covered by material, changes in amplitude are processed by integral electronics to convert into reliable switch signals. The device housing is constructed from plastic polybutylene terephthalate (PBT) with a Klingersil C-4400 gasket to ensure durability and compatibility with harsh environments.

The switch supports supply voltages ranging from 20VAC to 253VAC and 20VDC to 72VDC, accommodating a wide variety of industrial power conditions. It operates reliably between -40°C and 150°C, making it suitable for both low and high temperature processes. This model has a maximum pressure rating of 1.1 bar and supports a maximum current of 3A.

The VEGAWAVE 61 series is ATEX-certified for hazardous areas (ATEX II 1/3 D IP6X T), making it compatible with dust environments requiring explosion protection. The device includes an external two-colour LED indicator for easy operational status monitoring without disassembly or intrusive testing.

This vibrating level switch is particularly suited for overfill and low-level detection in bulk solid media such as grain, fine aggregates, sand, cement, and metal oxides. The device excels in industrial sectors including manufacturing, material handling, agricultural processing, and chemical processing where robust, maintenance-free level detection is critical.

Its rugged and maintenance-free design ensures longevity and reliability even in challenging operating conditions that involve static charges or build-up on the sensor. The device offers a product-independent switching point and detects solid densities starting from 8 g/l. This ensures versatility across various granular and powdered materials.

The plastic PBT housing and Klingersil C-4400 gasket enhance device resilience against mechanical and chemical stress. The switch's breaking capacity is up to 750 VA and 54 W, suitable for demanding industrial switch applications.

The Vega VEGAWAVE 61 series vibrating level switch thus provides a dependable solution for level detection in hazardous, dusty industrial environments. Set contains the vibrating level switch with cable mount and the specified housing and gasket materials.

EnvMart offers a comprehensive range of Vega sensors and level switches suitable for electrical, automation, and process control industries. Explore related products and accessories for enhanced system integration and performance.

The switch operates via a piezo crystal vibrating at a fixed amplitude for product detection. It features a two-colour LED indicator showing the switching condition externally. Supports supply voltages from 20VAC to 253VAC and 20VDC to 72VDC.

Constructed with a durable Klingersil C-4400 gasket and offers ATEX certification. Operates in temperatures ranging from -40°C up to 150°C. Rated for a maximum pressure of 1.1 bar and 3A maximum current. Its rugged design is insensitive to build-up, static charge, and detects solid densities from 8g/l reliably.

Ideal for overfill and low-level detection in grains, aggregates, sand, cement, and metal oxides. Maintenance-free operation reduces downtime in industrial applications.
