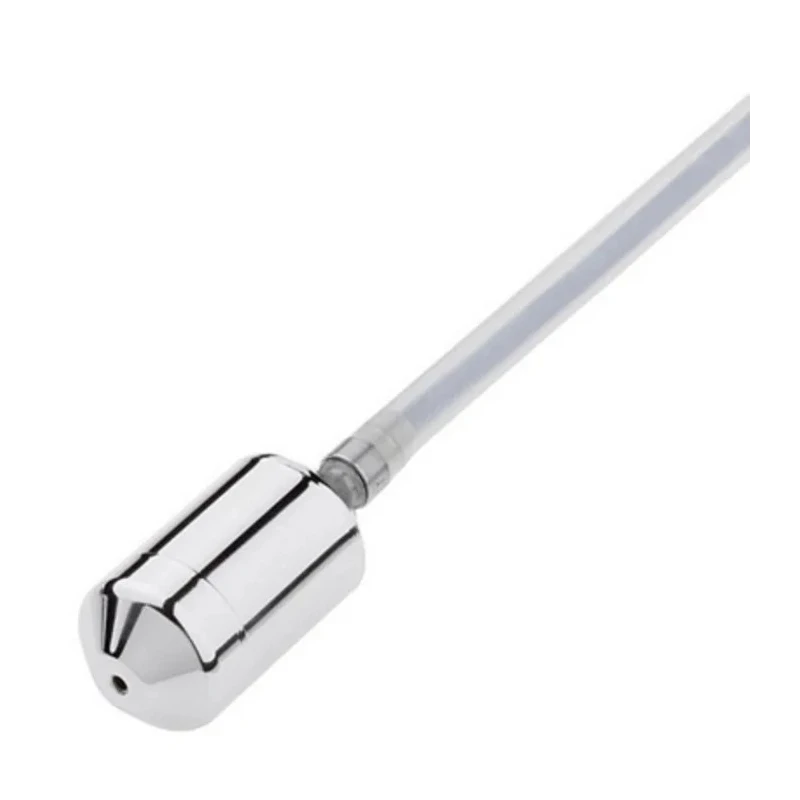

Jumo Series 401015 Column Level Indicator Level Probe, Cable Mount, 304 Stainless 401015/000-453-405-567-20-11-1-010/000

Jumo 401015/000-453-405-567-20-11-1-010/000 is a column level indicator level probe engineered for continuous hydrostatic level measurement of liquids in industrial and automation processes. It incorporates a durable 304 stainless steel housing and a 10 meter cable for cable-type mounting, providing robust mechanical and chemical resistance suitable for harsh environments.

The probe operates within a temperature range from -30°C to 125°C, enabling use in a variety of industrial applications including chemical processing, water treatment, food and beverage, and pharmaceutical industries.

The sensing element is a piezo resistive silicon sensor delivering a high accuracy of 0.3% using proven MSP2 sensor technology, ensuring precise level measurement critical for process control. The output current signal ranges between 4 mA to 20 mA through a two-wire system, compatible with standard industrial control systems.

The device measures input relative pressure from 0 to 0.6 bar and supports measuring ranges between 0.25 bar and 1 bar. It has a G 1/4 internal process thread for straightforward integration into piping systems.

Additional features include reverse-polarity protection to guard against incorrect wiring and compliance with EHEDG and EAC standards assuring hygienic design and regulatory acceptance.

The device features a robust 304 stainless steel housing with a 10 meter cable length. Designed for cable mounting with a process connection of G 1/4 inside thread. Suitable for operating temperatures from -30°C up to 125°C for versatile applications.

Measures liquid level using a piezo resistive silicon sensor with 0.3% accuracy based on MSP2 sensor technology. Outputs a 4 - 20 mA two-wire current signal for reliable level monitoring. Measures relative pressure inputs ranging from 0 to 0.6 bar with measuring ranges from 0.25 bar to 1 bar.

Includes reverse-polarity protection for device safety during installation. Conforms to industry standards such as EHEDG and EAC for hygienic and quality assurance. No hazardous area certification, designed for safe zone applications.

This level probe is ideal for industrial applications requiring continuous, accurate liquid level measurement and reliable output integration with control systems. It supports use in sectors like chemical processing, food and beverage, water treatment, and pharmaceutical manufacturing.
