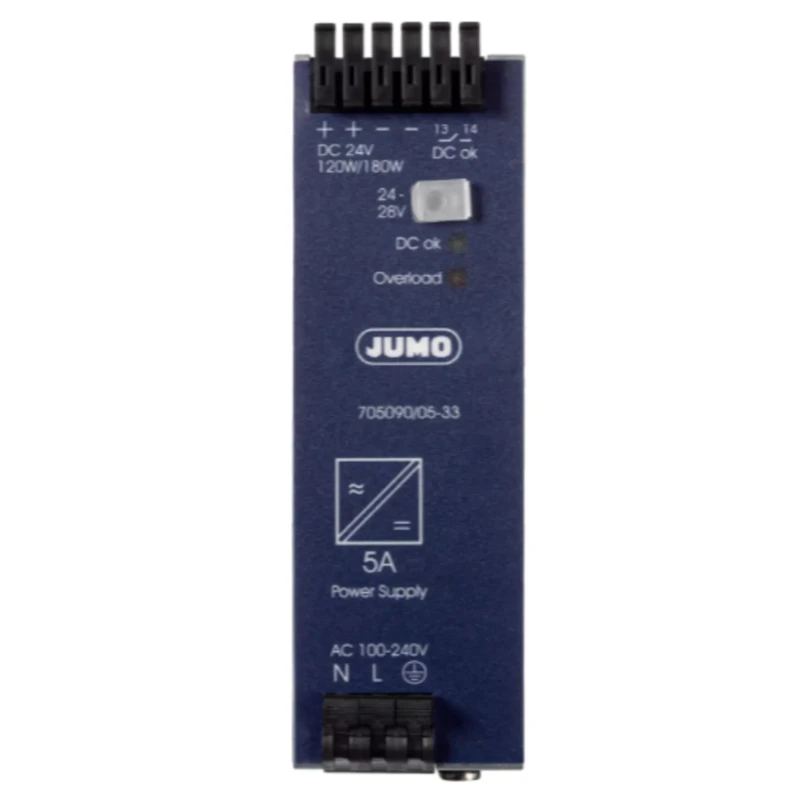

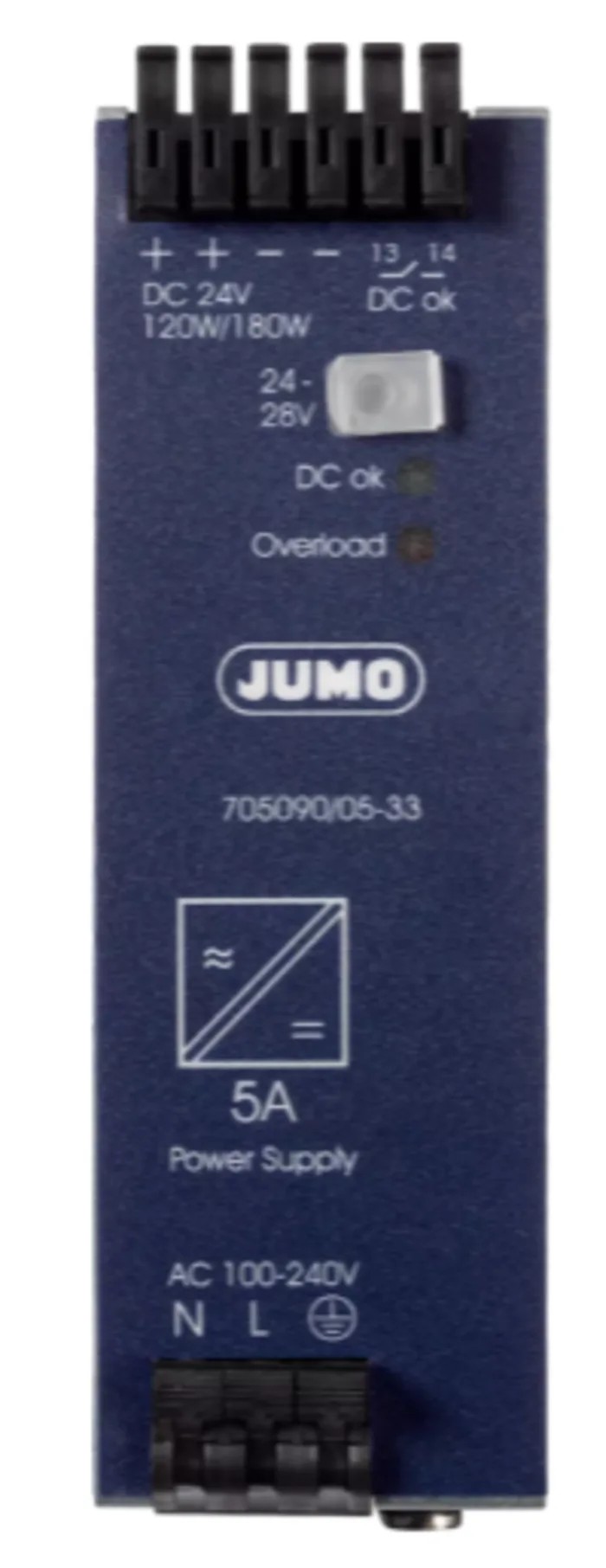

Jumo variTRON DIN Rail Power Supply 200V AC Input 24V DC, 5A Output 120W 705090/05-33

Free Delivery in India | Lowest Global Shipping Charges

Jumo variTRON DIN Rail Power Supply 200V AC Input 24V DC, 5A Output 120W 705090/05-33

Name: Jumo variTRON DIN Rail Power Supply 200V AC Input 24V DC, 5A Output 120W 705090/05-33
Brand: JUMO
SKU: 424573
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand JUMO Condition New

Specifications

Country of Origin	Germany
Brand	Jumo
Power	120W
Height	130.5mm
Model	705090/05-33
Depth	106.5mm
Width	32mm
Series	variTRON
Output Current	5A
Maximum Operating Temperature	70°C
Sub Type	DIN Rail
Minimum Operating Temperature	-25°C
Maximum Input Voltage	200V ac
Standards/Approvals	RoHS
Maximum Output Voltage	24V dc
Minimum Input Voltage	100V ac

Key Features

Wide AC input voltage range from 100V to 240V for versatile use.
Compact metal casing with dimensions 130.5mm height, 32mm width, and 106.5mm depth.
High efficiency up to 93.5% reduces energy loss.
Active Power Factor Correction ensures electrical efficiency and power quality.
Supports operating temperature from -25°C to 70°C for harsh environments.
Quick-connect spring-clamp terminals enable easy wiring.
Peak load capability up to 150% ensures robust performance under transient loads.
Complies with RoHS standards and has approvals including UL and DNV GL EMC class A.

Product Description

Jumo 705090/05-33 variTRON DIN Rail Power Supply is a high-efficiency 120W power supply unit designed for industrial and commercial electronic applications. It accepts a wide AC input voltage ranging from 100V to 240V AC and outputs a stable 24V DC with a maximum current output of 5 amps.

The device features a robust metal housing measuring 130.5mm in height, 32mm in width, and 106.5mm in depth, making it compact and suitable for fitting onto DIN rails in electrical control panels.

This power supply incorporates active Power Factor Correction (PFC) to improve power quality and efficiency, achieving up to 93.5% efficiency which reduces energy consumption and heat generation. It offers excellent immunity to transients and overvoltages, minimizing electromagnetic interference, thereby complying with strict RoHS standards and certifications such as UL and DNV GL EMC class A.

The operating temperature range of -25°C to 70°C allows for reliable operation in a variety of industrial environments. The quick-connect spring-clamp terminals simplify installation and maintenance. It also offers 150% peak load capability ensuring stable operation during short-term overcurrent conditions.

Wide AC input voltage range for flexibility in diverse applications. Compact and durable metal casing for DIN rail mounting. High conversion efficiency reduces power wastage. Active PFC enhances power factor and reduces harmonics.

Robust performance in harsh temperature conditions. Easy and secure wiring with spring-clamp terminals. High peak load tolerance for transient protection. Certified to RoHS, UL, and DNV GL EMC A standards. Low electromagnetic emissions ensure compliance in sensitive environments.

Manufactured in Germany ensuring quality and reliability.

This DIN rail power supply is ideal for use in electrical panels, automation systems, manufacturing controls, laboratory equipment, and HVAC systems. It is engineered to offer reliable power conversion with minimal downtime for a wide range of industrial processes.
