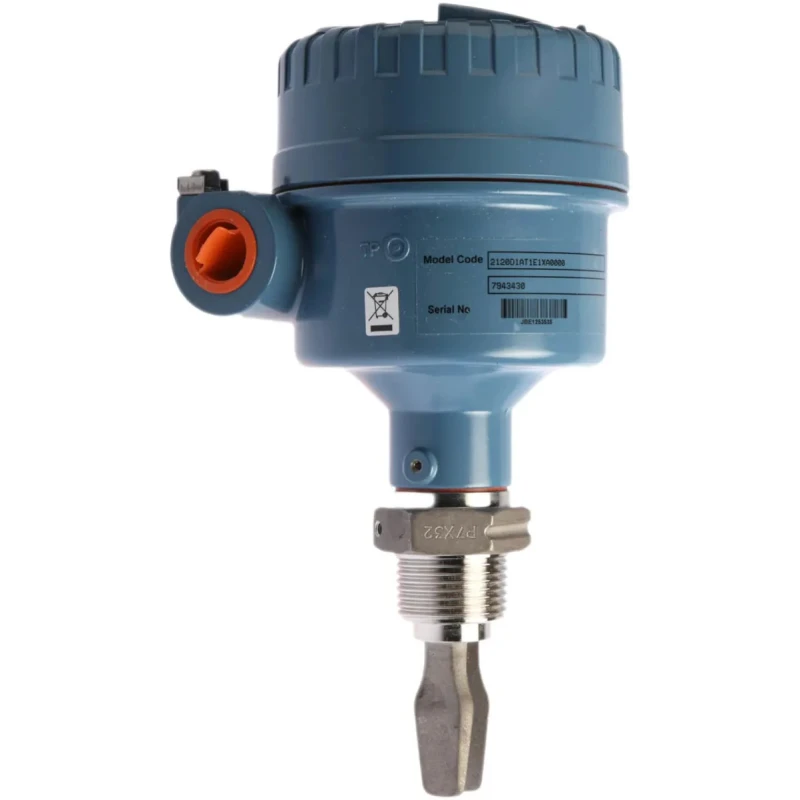

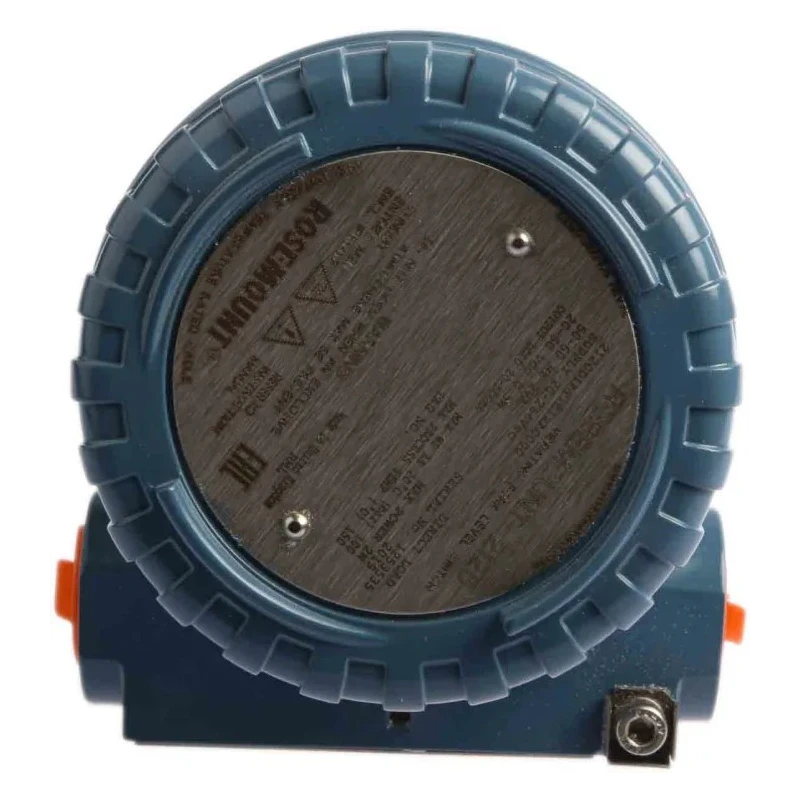

Mobrey 2120 Series Fork Level Switch Vibrating Level Switch Side Top Mount Aluminium Housing 2120D1AT1E1XA0000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Mobrey |
| Model | 2120D1AT1E1XA0000 |
| Cable Length | 44mm |
| Mount Type | Side, Top Mount |
| Housing Material | Aluminium |
| Series | 2120 |
| Maximum Operating Temperature | 150°C |
| Maximum Pressure | 100bar |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 500mA |
| Device Type | Fork Level Switch |
| Interface Type | PLC |
| Maximum dc Voltage | 12V dc |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | EAC, CSA |
| Gasket Material | Non-Asbestos Sheet |
Key Features
- This device features side and top mounting options for versatile installation.
- Constructed with aluminium housing and non-asbestos sheet gasket for durability.
- Operates efficiently between -40°C and 150°C temperature range.
- Supports a maximum pressure rating of 100 bar suitable for high-pressure environments.
- Equipped with cable length of 44mm and interface configured for PLC integration.
- Includes magnetic test point for easy functional testing and selectable Dry 'On' or Wet 'On' modes.
- Certified with ATEX hazardous area rating ensuring safe use in explosive atmospheres.
- Output electronics support 8/16 mA, Direct Load, PNP, Relay or NAMUR depending on version.
Product Description
Rosemount 2120D1AT1E1XA0000 Fork Level Switch Vibrating Level Switch combines simplicity, ease of use and reliable operation for high and low level alarms in liquids. The vibrating fork technology detects changes in natural frequency caused by liquid levels, switching output states appropriately for industrial control systems.
Its aluminium housing with non-asbestos gasket ensures durability under harsh conditions across operating temperatures from -40°C up to 150°C and pressures up to 100 bar. The switch supports side and top mounting with threaded process connections, and includes two M20 conduit entries for cable gland installation (cable not supplied).
The device interfaces with PLCs and offers versatile output electronics options including 8/16 mA, Direct Load, PNP, Relay, and NAMUR to suit varied control requirements. This level sensor features selectable Dry 'On' or Wet 'On' operation modes and an adjustable switching delay.
Magnetic test point allows functional verification without removal from the system. ATEX certification makes this product suitable for hazardous atmospheres in chemical, petrochemical, and process industries.
Industrial use cases include level detection in tanks, pipelines, and vessels within manufacturing, water treatment, HVAC, and other automation sectors requiring reliable liquid level control.
The package includes the Rosemount series 2120 fork level switch with aluminium housing and non-asbestos gasket for enhanced safety and longevity. Explore Rosemount and other Level Sensors categories on EnvMart for comprehensive automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently between -40°C and 150°C, making it suitable for a wide range of industrial applications.
It supports a maximum pressure rating of 100 bar, which is suitable for high-pressure environments.
This unit features both side and top mounting options, allowing for versatile installation in various setups.
It offers versatile output electronics options including 8/16 mA, Direct Load, PNP, Relay, and NAMUR depending on the version.
Yes, it is certified with ATEX hazardous area rating, ensuring safe use in explosive atmospheres.
The housing is made of aluminium and features a non-asbestos sheet gasket for enhanced durability.
The cable length is 44mm, which is suitable for connecting to the system.
It is configured for PLC integration, allowing for seamless connection to industrial control systems.
It is suitable for level detection in tanks, pipelines, and vessels within manufacturing, water treatment, HVAC, and other automation sectors.
The maximum current rating for this model is 500mA, which is important for ensuring compatibility with various control systems.
It meets EAC and CSA standards, ensuring compliance with relevant safety and performance regulations.
