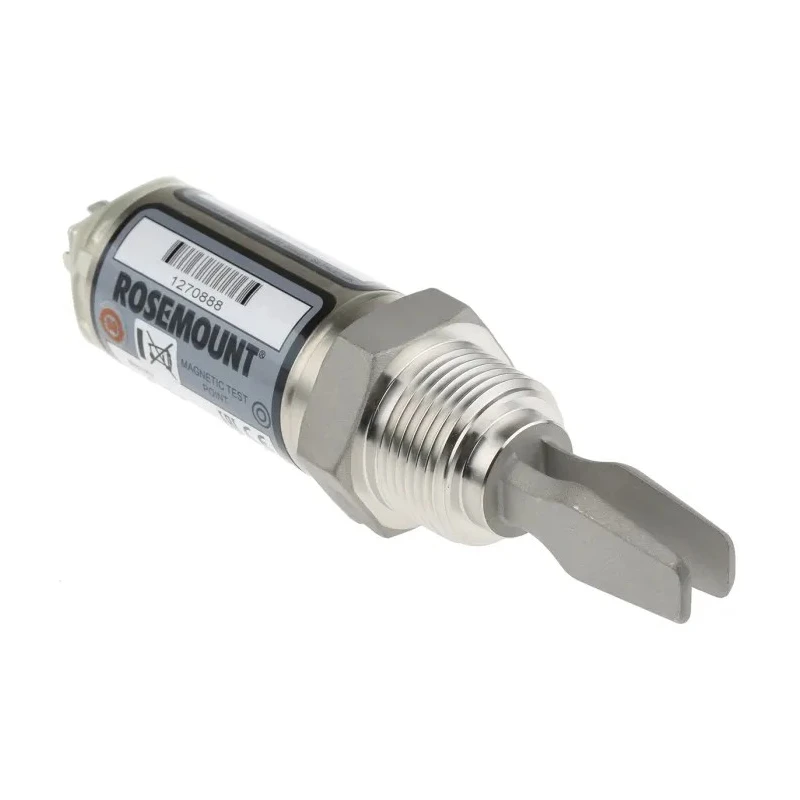

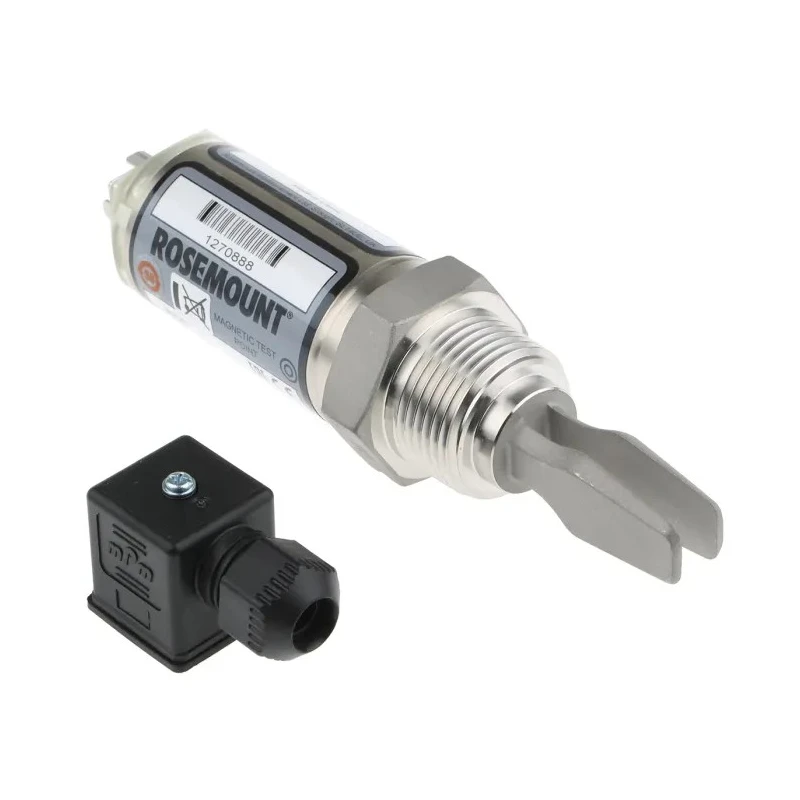

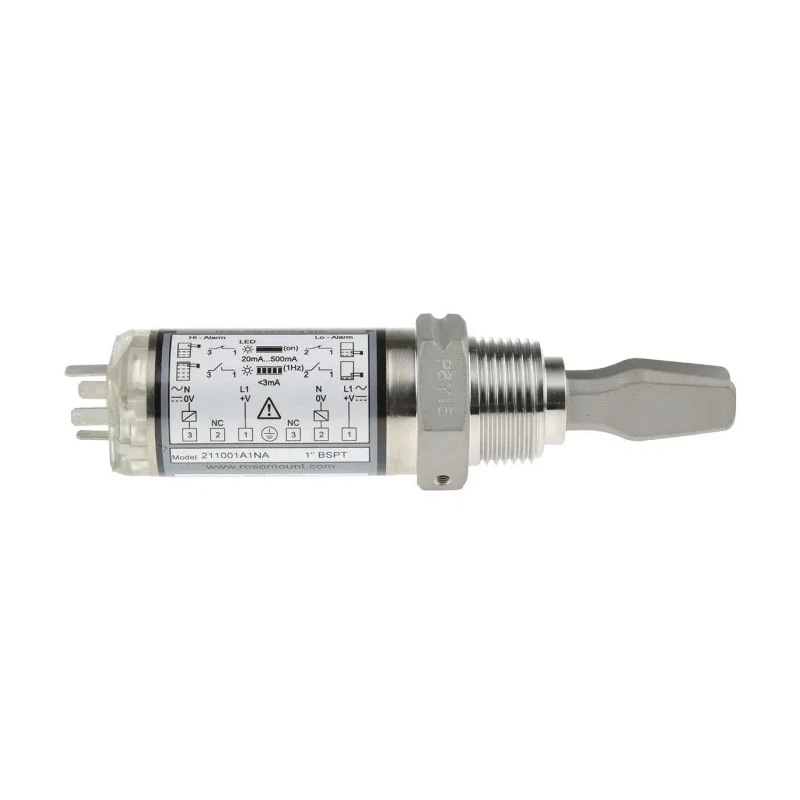

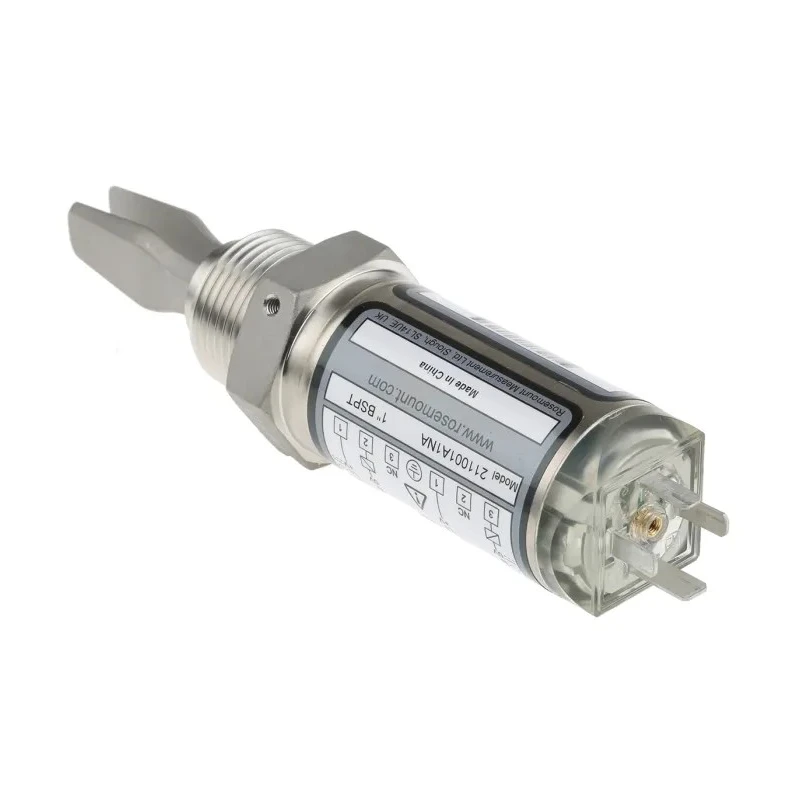

Rosemount 2110 Series Vibrating Fork Level Switch Side Top Mount Stainless Steel Housing 211001A1NA
Specifications
| Country of Origin | China |
|---|---|
| Brand | Rosemount |
| Model | 211001A1NA |
| Mount Type | Side, Top Mount |
| Housing Material | Stainless Steel |
| Series | 2110 |
| Maximum Operating Temperature | 150°C |
| Maximum Pressure | 100bar |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 500mA |
| Device Type | Fork Level Switch |
| Maximum dc Voltage | 60V dc |
| Standards/Approvals | EHEDG |
| Maximum AC Voltage | 264V ac |
Key Features
- Utilizes tuning fork principle with piezo-electric crystal for accurate level sensing.
- Suitable for side or top mounting with 1-inch BSPT (R) threaded connection.
- Operates reliably between -40°C and 150°C temperature range.
- Supports maximum pressure of up to 100 bar for industrial liquids.
- Compatible with AC voltages up to 264 V and DC voltages up to 60 V.
- Direct load switching with 2-wire plug connection for easy installation.
- Features magnetic test point for simple on-site functional testing.
- Compact and lightweight design suitable for small vessels or pipes.
Product Description
Rosemount 211001A1NA vibrating fork level switch is engineered for reliable and precise liquid level measurement in industrial applications. It employs a tuning fork design using a piezo-electric crystal that oscillates the forks at their natural frequency. When immersed in liquid, the fork's natural frequency changes depending on the density, allowing accurate level detection.
It operates efficiently within a temperature range of -40°C to 150°C and can withstand process pressures up to 100 bar.
Designed for direct load switching, the unit supports 2-wire plug connections with voltages ranging from 21 to 264 Vac or Vdc. Additional features include a magnetic test point enabling quick functional verification on-site and a heartbeat LED indicator confirming operational status.
This compact and lightweight level switch is ideal for installations on small vessels or piping systems, offering IP66/67 protection for demanding environments. The fast drip fork design improves response times particularly with viscous liquids.
Employs tuning fork principle with piezo-electric oscillation for accurate liquid level sensing. Side and top mounting options with threaded 1-inch BSPT (R) process connection. Constructed with stainless steel housing and fork for durability and hygienic compliance.
Operating temperature ranges from -40°C to 150°C with pressure resistance up to 100 bar. Electrical interface supports direct load switching with 2-wire plug connection. Magnetic test point simplifies on-site functional testing and maintenance.
Heartbeat LED provides clear operational feedback. Compact, lightweight design suitable for small vessels and piping installations. IP66/67 ingress protection ensures robust performance in harsh industrial environments. Optimized fork design delivers faster response, particularly for viscous fluids.
This Rosemount vibrating fork level switch is commonly used in overfill protection, high and low level alarms, leak detection, pump control, run-dry prevention, and hygienic fluid applications within industrial, manufacturing, water treatment, and agricultural sectors. It is a reliable component for ensuring process safety and efficiency.
Discover more products in the Level Switch category at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates efficiently within a temperature range of -40°C to 150°C.
The maximum pressure it can withstand is up to 100 bar.
This model supports both side and top mounting options.
It is compatible with AC voltages up to 264 V and DC voltages up to 60 V.
The housing is constructed from stainless steel, ensuring durability and hygienic compliance.
Yes, it features a magnetic test point for simple on-site functional testing.
The maximum current it can handle is 500 mA.
It has an IP66/67 ingress protection rating, ensuring robust performance in harsh environments.
It is commonly used for overfill protection, high and low level alarms, leak detection, and pump control.
It uses a 2-wire plug connection for easy installation and direct load switching.
It complies with EHEDG standards, indicating suitability for hygienic applications.
The fast drip fork design optimizes response times, particularly with viscous liquids.
