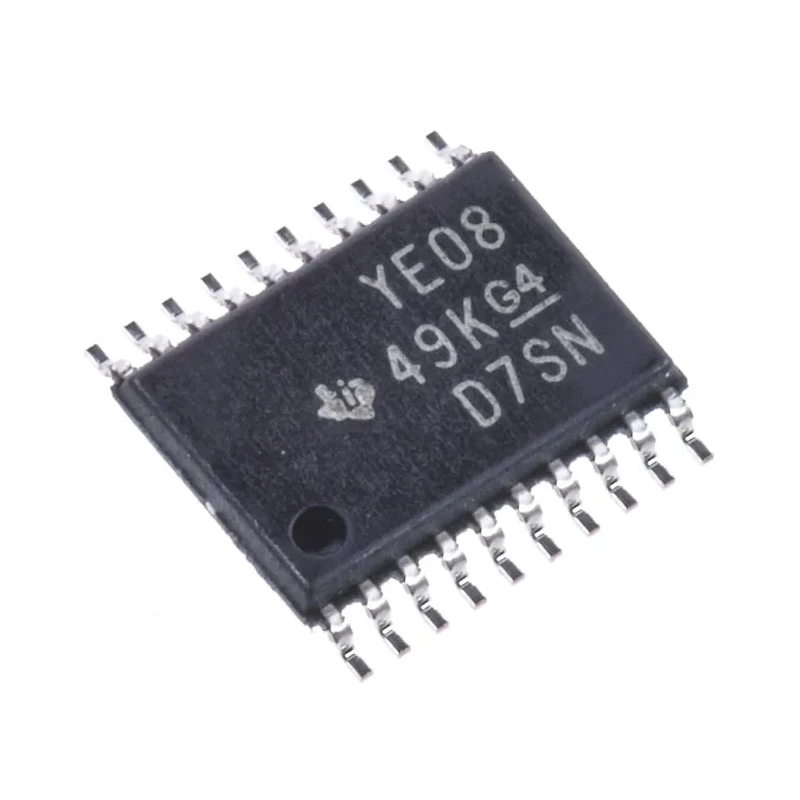

Texas Instruments Voltage Level Shifter Voltage Level Translator Bi-Directional 8 Elements 20-Pin TSSOP TXB0108PWR

The Texas Instruments TXB0108PWR is a voltage level shifter designed to provide efficient and accurate voltage level translation for logic signals. This device features 8 translator elements, enabling multiple signals to be managed simultaneously. Its bi-directional capability allows voltage translation in both directions without additional circuitry, making it versatile for various digital systems.

This logic IC comes in a 20-pin TSSOP surface mount package, with a height of 1.15 mm and length of 6.5 mm, ensuring minimal space consumption on PCB assemblies. The translator safely operates with supply voltages from 1.2 V up to a maximum of 5.5 V, accommodating a wide range of low voltage digital logic standards.

Key performance attributes include a maximum propagation delay time of 6.5 nanoseconds at the specified load capacitance, supporting high-speed data transfer requirements. The device output is three-state, allowing it to interface cleanly on shared communication lines. The maximum low-level output current is 20 microamperes, and the maximum high-level output current is -0.02 milliamperes, ensuring stable signal integrity.

With an operating temperature range from -40°C to +85°C, this voltage level translator is applicable for industrial and commercial environments, supporting reliable function under temperature stress. It is not certified for automotive use but enjoys general semiconductor logic IC applicability.

This product is ideal for industrial electronic, embedded systems, computer, and communication equipment applications requiring voltage compatibility between different logic families.

Supports bi-directional voltage level shifting for reliable signal communication. Contains 8 voltage level translator elements per chip. Compact 20-pin TSSOP package suitable for surface mounting. Operates with supply voltages ranging from 1.2 V to 5.5 V.

Low propagation delay time of 6.5 ns optimizes signal timing. Wide operating temperature range from -40°C to 85°C for harsh environments. Three-state output type enhances bus sharing capabilities. Designed for use in semiconductor logic applications needing voltage translation.

Height of 1.15 mm and length of 6.5 mm enables compact PCB footprint. Explore more semiconductor logic ICs and voltage level shifters on EnvMart for varied industrial and electronic component needs.
