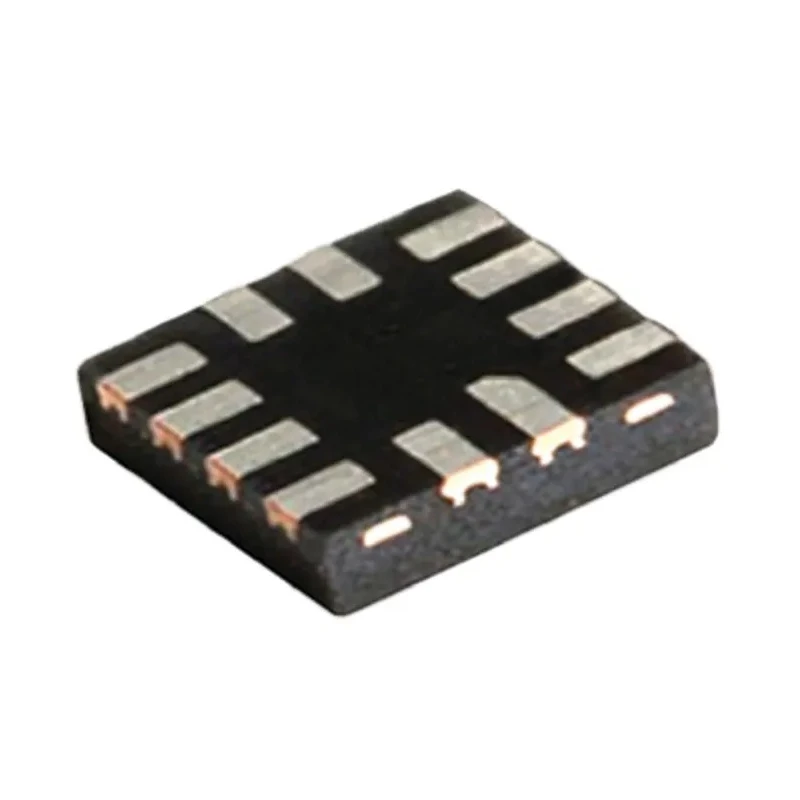

onsemi Voltage Level Shifter Voltage Level Translator 1 Voltage 12-Pin UMLP FXMAR2104UMX

Free Delivery in India | Lowest Global Shipping Charges

onsemi Voltage Level Shifter Voltage Level Translator 1 Voltage 12-Pin UMLP FXMAR2104UMX

Name: onsemi Voltage Level Shifter Voltage Level Translator 1 Voltage 12-Pin UMLP FXMAR2104UMX
Brand: onsemi
SKU: 374632
Price: 0.36 USD
Availability: InStock



Category Translator ICs Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	500μm
Length	1.8mm
Model	FXMAR2104UMX
Mount Type	Surface
Output type	3 State
Series	FXMAR2104
Maximum Operating Temperature	85°C
Package Type	UMLP
Minimum Operating Temperature	-40°C
Pin Count	12
Number of Elements per Chip	1
Maximum Supply Voltage	5.5V
Logic Family	FXMA
Logic Function	Voltage Level Translator
Minimum Supply Voltage	1.65V
Maximum High Level Output Current	-50mA
Maximum Propagation Delay Time @ CL	7ns
Direction Type	Bi-Directional
Maximum Low Level Output Current	50mA
Translation	Voltage

Key Features

Operates with minimum supply voltage of 1.65V and maximum of 5.5V.
Features a maximum propagation delay time of 7ns at capacitive load.
Provides 50mA maximum low level output current and -50mA maximum high level output current.
Compatible with surface mount technology for efficient PCB integration.
Designed to operate over temperature range from -40°C to 85°C.
Compact dimensions with 1.8mm length and 500μm height.
Implements three-state output type for flexible logic control.
Complies with FXMA logic family standards, without automotive certification.

Product Description

onsemi FXMAR2104UMX Voltage Level Shifter Voltage Level Translator is an advanced semiconductor component designed for reliable voltage level translation in electronic circuits. It is packaged in a 12-pin UMLP surface mount package facilitating compact and efficient PCB designs.

This device supports bi-directional voltage shifting with a minimum supply voltage of 1.65V and a maximum supply voltage of 5.5V, making it suitable for interfacing between logic systems of varying voltage levels.

The maximum propagation delay time of 7ns at capacitive load ensures fast signal translation suitable for high-speed applications including industrial automation, computer hardware, communication equipment, and embedded systems.

The product delivers a maximum low level output current of 50mA and a maximum high level output current of -50mA, supporting robust signal integrity. It utilizes a three-state output configuration allowing flexible control in complex logic circuits.

Engineered to withstand operating temperatures from -40°C up to 85°C, the FXMAR2104UMX device provides reliability in harsh environments including industrial, automotive (non-certified), and commercial electronics systems.

Its compact physical dimensions of 1.8mm length and 500μm height contribute to space-saving PCB layout in modern electronics design. Operates with a supply voltage range of 1.65V to 5.5V. Maximum propagation delay of 7ns supports fast switching.

Supports 12 pin UMLP surface mount package. Bi-directional voltage level shifting functionality. Temperature operating range: -40°C to 85°C. Three-state output for enhanced logic flexibility. Complies with FXMA logic family specifications.

This voltage level translator is essential for applications requiring seamless interfacing between different voltage logic levels in semiconductor devices. It is widely applied in industrial electronics, consumer electronics, and embedded systems leveraging onsemi’s technology.
