4D Systems 1.5 in Passive Matrix White OLED Display Starter Kit Serial Interface SK-128G2
Specifications
| Country of Origin | India |
|---|---|
| Brand | 4D Systems |
| Dimensions | 26 mm x 21 mm x 13.2 mm |
| Model | SK-128G2 |
| Maximum Operating Temperature | 70°C |
| Display colour | White |
| Minimum Operating Temperature | -30°C |
| External Width | 36mm |
| External Depth | 7mm |
| External Height | 35.8mm |
| Power Dissipation | 1W |
| Interface Type | Serial |
| Screen Resolution | 128 x 128 pixel |
| Standards/Approvals | RoHS |
| Forward Voltage | 5V dc |
| Forward Current | 200mA |
| Viewing Area Dimensions | 27 x 27 mm |
| Diagonal Display Size | 1.5in |
| Contrast Ratio | 5000:1 |
| Matrix Type | Passive |
| Driver Mounting | Matrix |
| •Viewing area | 20.1 mm x 13.4 mm |
| Contrast Ratio5000 | 1 |
| 5000 | 1 |
Key Features
- Viewing area measures 27 x 27 mm with external dimensions 36 mm width, 35.8 mm height, and 7 mm depth.
- Suitable for operation in temperature range from -30°C to 70°C, allowing use in varied environments.
- Forward voltage requirement is 5V DC with power dissipation of 1W and forward current of 200mA.
- The starter kit includes a microSD card adaptor, programming connection, and jumper cables for easy integration.
- Compliant with RoHS standards ensuring environmental and safety compliance.
Product Description

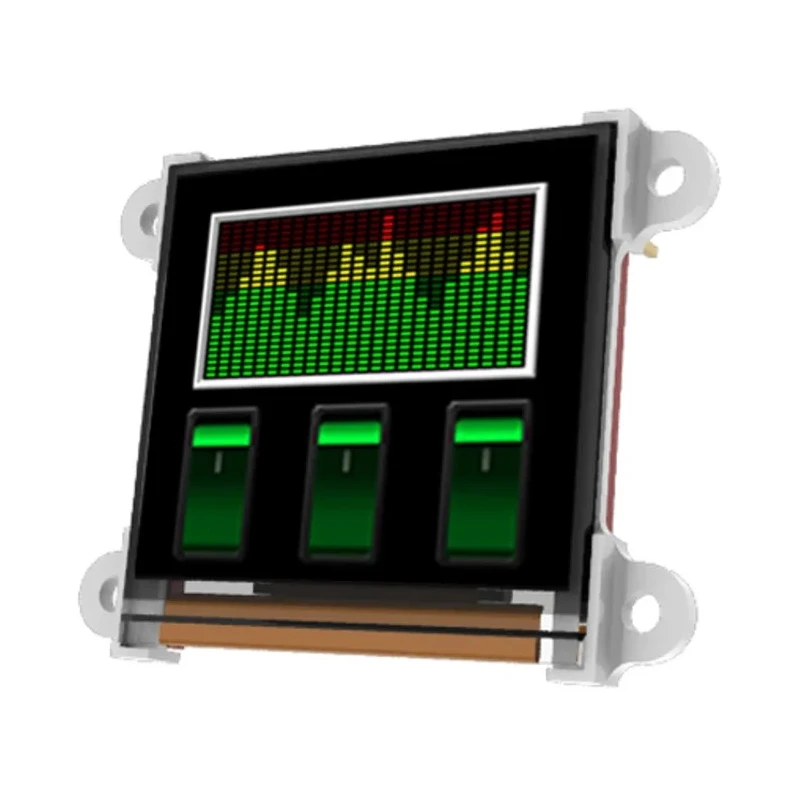

4D Systems SK-128G2 is a passive matrix white OLED display starter kit with a 1.5 inch diagonal screen size and 128 x 128 pixel resolution, designed for embedded graphics applications requiring clear, high-contrast displays.
This OLED display features a compact form factor with external dimensions of 36 mm width, 35.8 mm height, and 7 mm thickness. The active viewing area measures 27 x 27 mm, delivering bright white visuals with a contrast ratio of 5000:1 for excellent clarity and sharpness.
Built for robust performance, the SK-128G2 operates reliably within a wide temperature range of -30°C to 70°C. It uses a serial interface for communication and requires a forward voltage of 5V DC, drawing 200mA current and dissipating 1 watt of power.

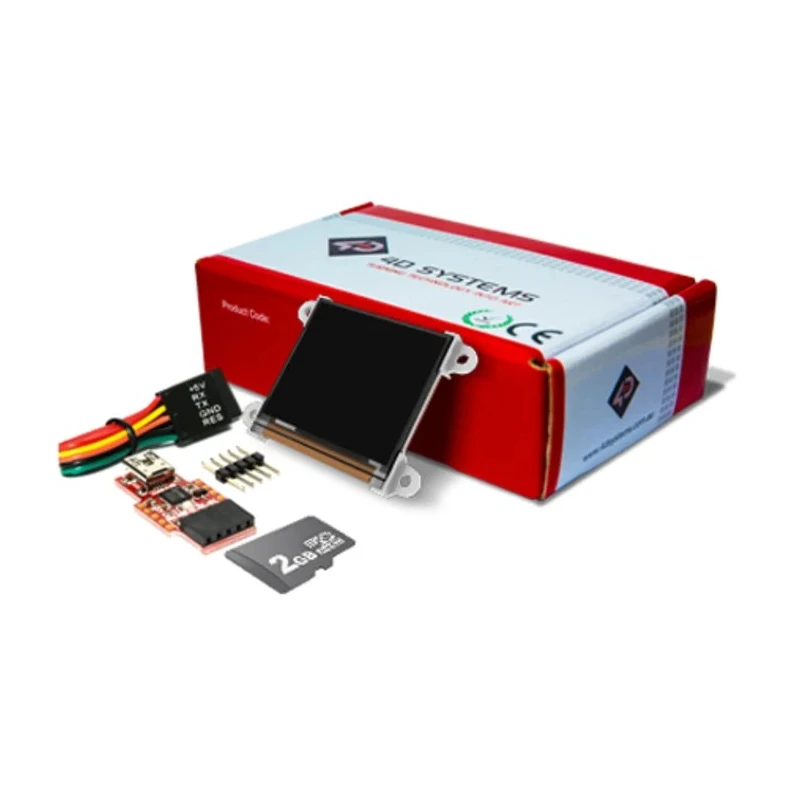

The starter kit includes essential accessories to facilitate development, such as a microSD memory card adaptor, a uUSB-PA5 programming adaptor, a 150 mm 5-way female-to-female jumper cable, a 5-way male-to-male adaptor, and a quick start user guide for easy setup.

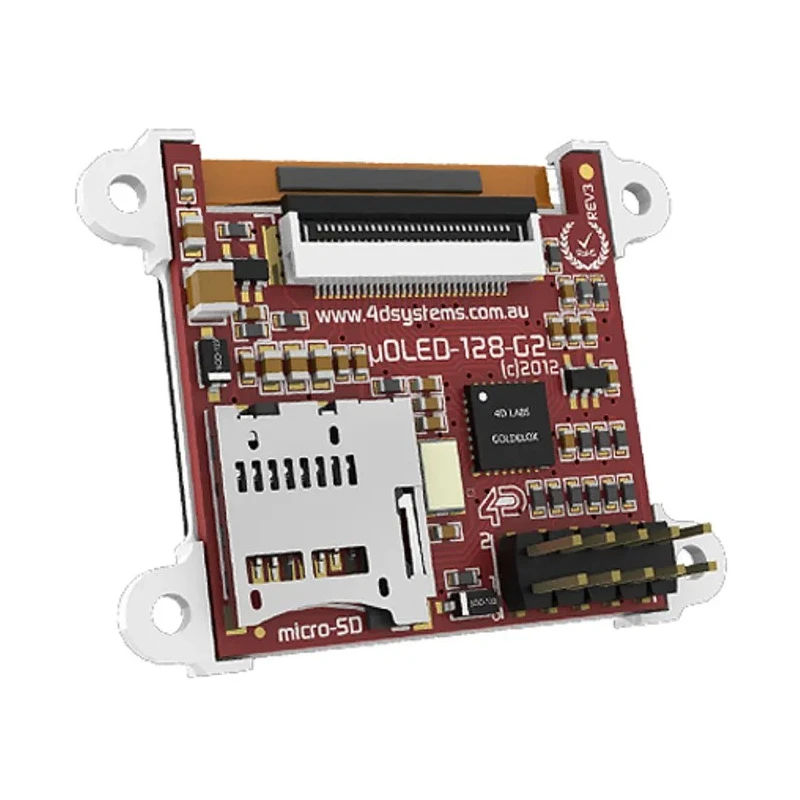

This display leverages the GOLDELOX graphics controller enabling display of images, animations, icons, and videos with support for Workshop4 IDE and 4DGL graphics language coding. It is suitable for a power supply range of 4.0 V to 5.5 V and features mounting back plate with holes for secure installation.
The display provides up to 65k colors and 10 KB of flash memory with 510 Bytes of RAM. Ideal for embedded systems, industrial control panels, instrumentation, and IoT device graphical interfaces. Complies with RoHS environmental directives ensuring product safety and sustainability.
Designed for easy integration with existing systems via serial interface and accessory kit. The compact size makes it suitable for space-constrained applications requiring high-quality OLED display technology.
The 4D Systems 1.5 in passive matrix white OLED display starter kit SK-128G2 is a versatile solution for developers, engineers, and designers in electronics, industrial automation, instrumentation, and embedded graphics industries.
Explore more OLED Displays and development kits from 4D Systems and other leading brands in the EnvMart catalog for your projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SK-128G2 display has a resolution of 128 x 128 pixels, providing clear visuals for embedded graphics applications.
This OLED display operates reliably within a temperature range of -30°C to 70°C, making it suitable for varied environments.
The SK-128G2 requires a forward voltage of 5V DC for operation.
The starter kit includes a microSD card adaptor, a programming connection, jumper cables, and a quick start user guide for easy integration.
The active viewing area of the SK-128G2 measures 27 x 27 mm.
This model dissipates 1 watt of power during operation.
The contrast ratio of this display is 5000:1, providing excellent clarity and sharpness.
The SK-128G2 uses a serial interface for communication with other devices.
The external dimensions of this display are 36 mm in width, 35.8 mm in height, and 7 mm in depth.
This display leverages the GOLDELOX graphics controller, enabling the display of images, animations, icons, and videos.
Yes, the SK-128G2 is compliant with RoHS standards, ensuring environmental and safety compliance.
The maximum operating temperature for this model is 70°C.
