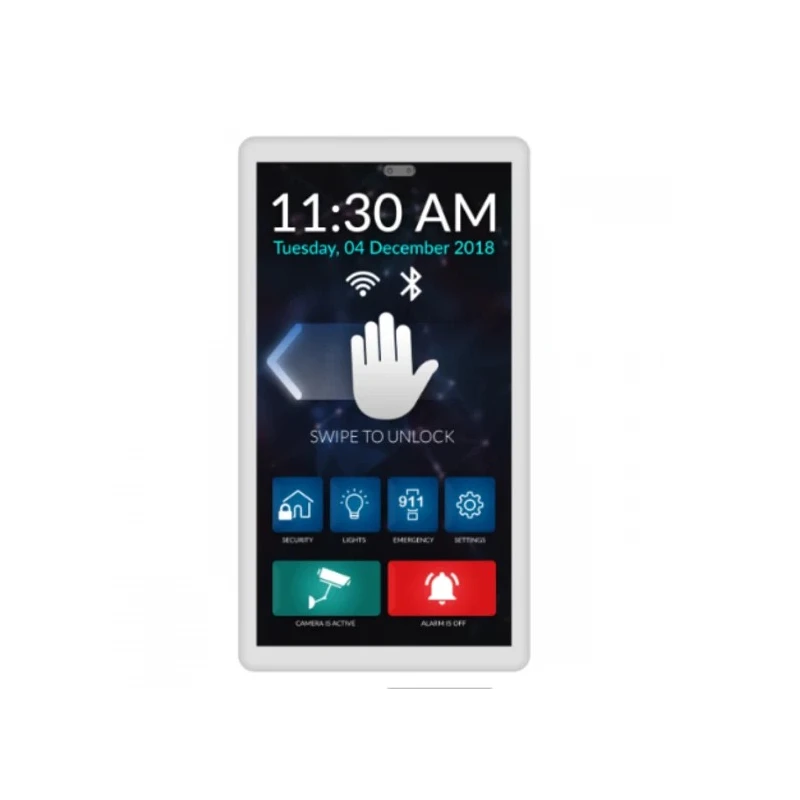

4D Systems 4.95 Inch TFT LCD Display Touch Screen, 480 x 854 Pixel, Capacitive Touch, LED Backlight 4Discovery-50
Specifications
| Country of Origin | Australia |
|---|---|
| Display Type | LCD, TFT |
| Display | Screen |
| Brand | 4D Systems |
| Current | 125mA |
| Height | 139.4mm |
| Model | 4Discovery-50 |
| Depth | 24.8mm |
| Width | 76.2mm |
| Series | 4Discovery |
| Maximum Operating Temperature | 60°C |
| Brightness | 500cd/m² |
| Minimum Operating Temperature | -10°C |
| Screen Resolution | 480 x 854 pixel |
| Standards/Approvals | RoHS, CE |
| Touch Screen Type | Capacitive |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Viewing Area Dimensions | 62.56 x 110.53 mm |
| Backlight Type | LED |
| Diagonal Display Size | 4.95in |
Key Features
- The display features an LED backlight for bright and clear visuals.
- Viewing area dimensions of 62.56 x 110.53 mm provide ample interactive space.
- Operates within voltage range 3.3 to 3.6 V for stable power supply.
- Supports operation between -10°C and 60°C for diverse environments.
- Compact dimensions with height 139.4 mm, width 76.2 mm, and depth 24.8 mm enable flexible mounting.
- IPS TFT technology ensures wide viewing angles and true-to-life 65K RGB colors.
- Programmed via RS485 interface with 6 banks of Flash memory and 32Kb SRAM for user applications.
- Includes on-board micro-SD card slot for multimedia storage and data logging.
Product Description
4D Systems 4Discovery-50 is a new generation 4.95 inch TFT LCD Display Touch Screen designed for versatile industrial and home automation applications requiring interactive graphical interface modules.
Featuring an IPS TFT LCD with 480 x 854 pixel FWVGA resolution, it delivers sharp and vibrant visuals with RGB 65,000 colors and a capacitive touch panel integrating LED backlighting for excellent brightness of 500 cd/m².
The device operates on a supply voltage range of 3.3 V to 3.6 V and supports operating temperatures from -10°C up to 60°C, ensuring reliability in various environments.
Its compact dimensions of 139.4 mm height, 76.2 mm width, and 24.8 mm depth make it suitable for wall or panel mounting in industrial, laboratory, building automation, and manufacturing contexts.
The 4Discovery series includes 6 banks of 32,750 bytes Flash memory for user application code and data, 32Kb SRAM for user operations, and an onboard micro-SD card slot supporting multimedia content and data logging capabilities. Programming is via RS485 interface using a dedicated programmer designed for this module.
This product conforms to RoHS and CE standards, reflecting high environmental and safety compliance. The display supports capacitive touch technology for responsive and precise user inputs. Wide viewing angles offered by IPS technology improve user experience in industrial control and monitoring.
Onboard memory facilitates complex graphical user interfaces and local data storage. LED backlight ensures visibility under diverse lighting conditions. Compact and universal mounting options allow easy installation in diverse settings.
Robust operating voltage and temperature tolerance ensure dependable field use.
This display module is ideal for industrial automation systems, embedded system development, electronic product integration, and other applications requiring a durable and feature-rich touch display interface.
Explore additional 4D Systems display modules and accessories at EnvMart for comprehensive electronic visual solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display has a resolution of 480 x 854 pixels, providing clear and vibrant visuals.
It features capacitive touch technology, allowing for responsive and precise user inputs.
The display has a brightness level of 500 cd/m², ensuring visibility under various lighting conditions.
This model has dimensions of 139.4 mm in height, 76.2 mm in width, and 24.8 mm in depth.
It operates within a temperature range of -10°C to 60°C, making it suitable for diverse environments.
The display operates on a supply voltage range of 3.3 V to 3.6 V.
It utilizes an LED backlight, which enhances brightness and visual clarity.
Yes, it includes 6 banks of Flash memory for user applications and 32Kb SRAM for operations.
This display conforms to RoHS and CE standards, indicating compliance with environmental and safety regulations.
The viewing area dimensions are 62.56 mm by 110.53 mm, providing ample interactive space.
Programming is done via an RS485 interface using a dedicated programmer designed for this module.
The display is manufactured in Australia.
