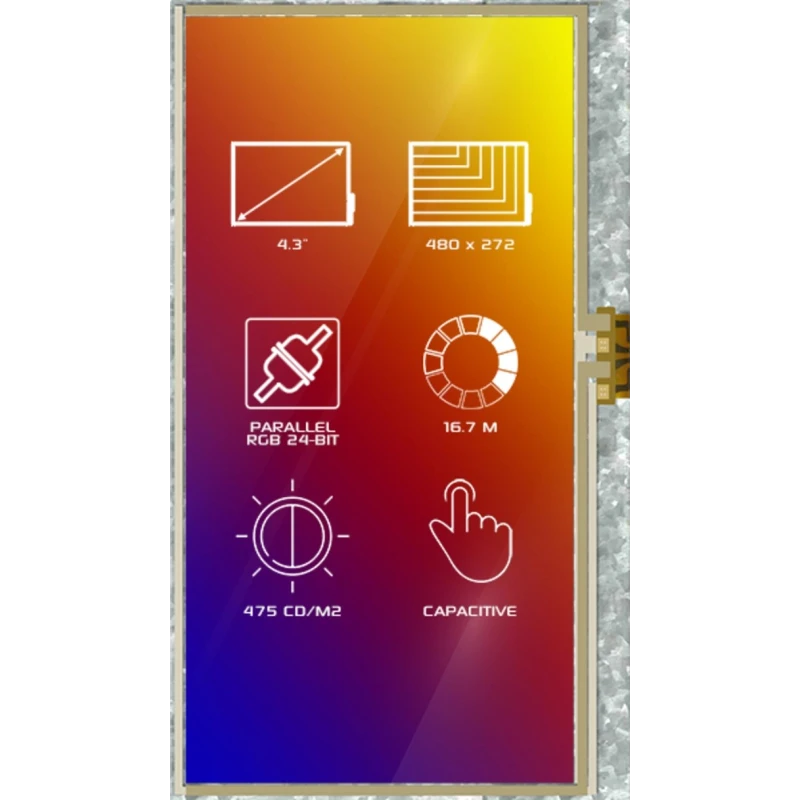

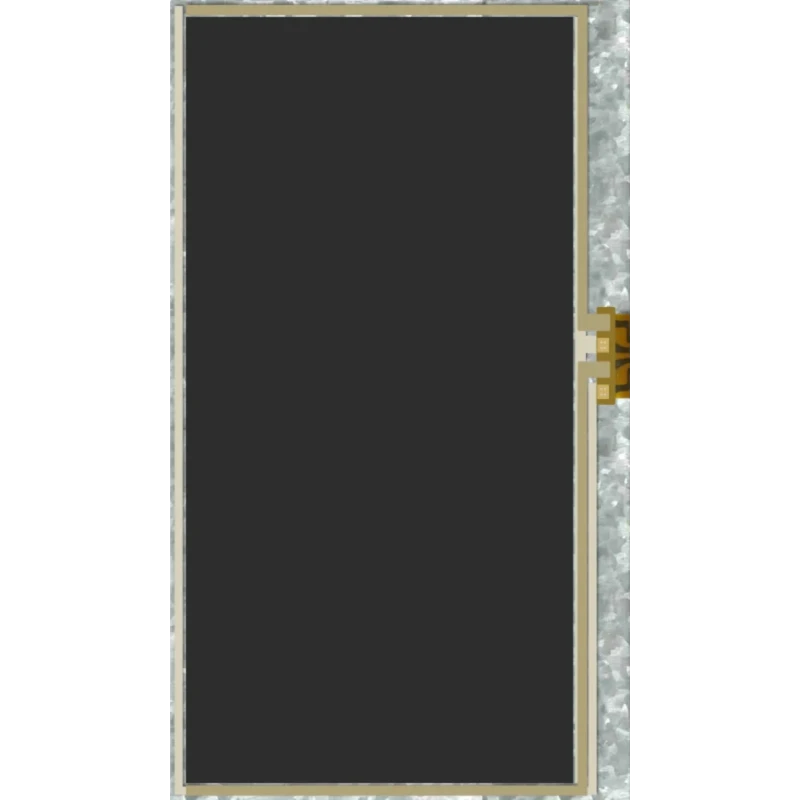

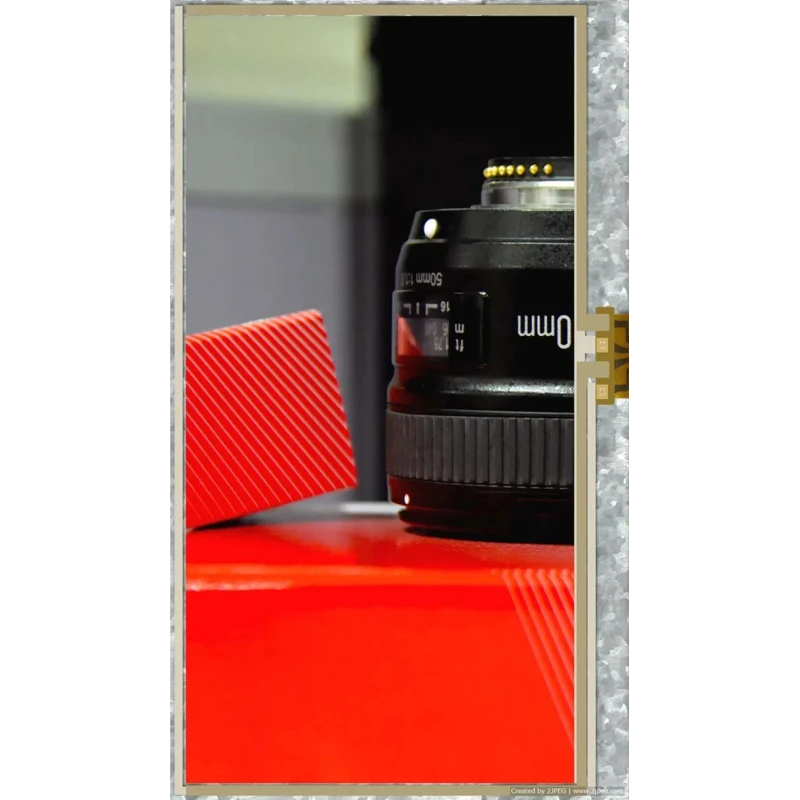

4D Systems LCD Colour Display 4.3 in 480 x 272 pixel Parallel RGB 24-Bit TFT Backlight 10 LEDs 4DLCD-43480272-IPS
Specifications
| Country of Origin | Australia |
|---|---|
| Display Type | TFT |
| Brand | 4D Systems |
| Current | 25mA |
| Height | 67.2mm |
| Model | 4DLCD-43480272-IPS |
| Depth | 53.86mm |
| Width | 105.5mm |
| Series | 4DLCD |
| Maximum Operating Temperature | 70°C |
| Brightness | 500cd/m² |
| Minimum Operating Temperature | -20°C |
| Interface Type | Parallel RGB 24-Bit |
| Screen Resolution | 480 x 272 pixel |
| Standards/Approvals | RoHS |
| Touch Screen Type | Resistive/Capacitive |
| Maximum Supply Voltage | 4.6V |
| Minimum Supply Voltage | 2.6V |
| Viewing Area Dimensions | 95.04 x 53.86 mm |
| Backlight Type | 10 LEDs |
| Diagonal Display Size | 4.3in |
| Contrast Ratio | 800:1 |
| Contrast Ratio800 | 1 |
| 800 | 1 |
Key Features
- Display features a 4.3 inch diagonal TFT LCD panel with 480 x 272 pixel resolution.
- Operates with a parallel RGB 24-Bit interface ensuring vivid color representation.
- Wide operating voltage range from 2.6V to 4.6V with minimal current consumption of 25mA.
- Designed for reliable operation within -20°C to 70°C temperature range.
- Viewing area measures 95.04 x 53.86 mm providing ample display surface.
- Features TFT thin-film transistor technology for sharp image quality and fast response.
- The module comes without an included power supply and supports resistive/capacitive touch options separately.
- Measuring 105.5 mm width, 67.2 mm height, and 53.86 mm depth, it is compact for embedded system applications.
Product Description
4D Systems 4DLCD-43480272-IPS is a high-performance LCD Colour Display module featuring a 4.3 inch diagonal TFT LCD panel with a resolution of 480 x 272 pixels. It offers a 24-bit Parallel RGB interface to support vivid and detailed color output suitable for embedded electronics, industrial control systems, and instrumentation panels.
The display module integrates a thin-film transistor (TFT) technology ensuring excellent image sharpness and fast response times. The built-in backlight unit with 10 LEDs provides high brightness of 500 cd/m² and a contrast ratio of 800:1, making it visible under various lighting conditions. It requires a power input between 2.6V and 4.6V and draws a low current of approximately 25mA.
With a viewing area of 95.04 x 53.86 mm, this compact module has dimensions of 105.5 mm width, 67.2 mm height, and 53.86 mm depth. It is designed to operate reliably over a wide temperature range from -20°C to 70°C. The module does not include a power supply unit and does not come with a touch screen pre-installed; however, it supports interfacing with resistive or capacitive touch panels, allowing customization for user input.
The 4DLCD-43480272-IPS complies with RoHS environmental standards and is manufactured in Australia, assuring quality and regulatory compliance. This reliable display module is suited to a variety of industrial, laboratory, manufacturing control panels, and embedded system applications.
4.3 inch TFT LCD panel with 480 x 272 pixel resolution. Parallel RGB 24-Bit color interface for high fidelity display. Power efficient design with 25mA typical current consumption. Robust operating range from -20°C to 70°C for versatile deployment.
High brightness (500 cd/m²) and contrast ratio (800:1) for clear visuals. Compact module dimensions fitting embedded system requirements. Supports resistive and capacitive touch screen integration. RoHS compliant manufacturing from Australia.
Explore more high-quality LCD Colour Displays by 4D Systems and related electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display has a resolution of 480 x 272 pixels, providing clear and detailed visuals.
It utilizes a Parallel RGB 24-Bit interface, ensuring vivid color representation.
The display operates within a voltage range of 2.6V to 4.6V.
The typical current consumption is approximately 25mA, making it power efficient.
The display measures 105.5 mm in width, 67.2 mm in height, and 53.86 mm in depth.
It has a maximum brightness of 500 cd/m², allowing for visibility in various lighting conditions.
The unit is designed to operate reliably within a temperature range of -20°C to 70°C.
This model supports interfacing with resistive or capacitive touch panels, allowing for customization.
The display features a contrast ratio of 800:1, enhancing visual clarity.
Yes, it complies with RoHS environmental standards, ensuring regulatory compliance.
This display is manufactured in Australia, assuring quality and compliance with local standards.
The viewing area measures 95.04 mm by 53.86 mm, providing ample space for content display.
