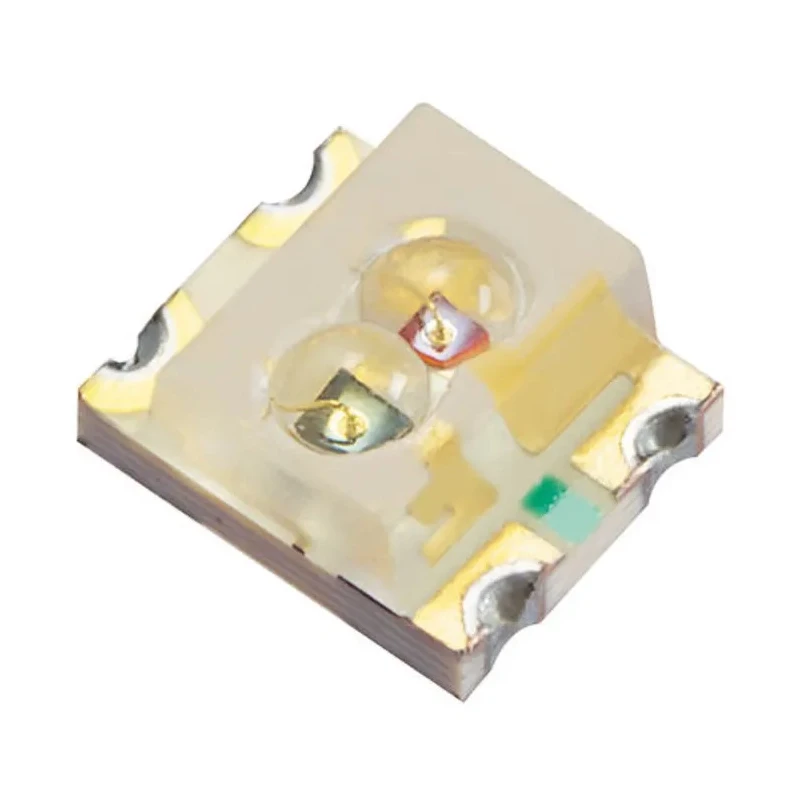

Kingbright 2.5 V Red, Green Surface Mount LED, 1109 Package KPBL-3025SURKZGC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Dimensions | 3.0 x 2.5 mm |
| Model | KPBL-3025SURKZGC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Number Of Leds | 2 |
| Maximum forward current | 20mA |
| Viewing angle | 100 ° |
| Standards/Approvals | RoHS |
| LED Colour | Red, Green |
| Dominant Wavelength | 630nm |
| Forward Voltage | 2.5V |
| Number of Pins | 4 |
| LED Luminosity | 600 mcd, 800 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 3 x 2.5 x 1.4 mm |
| Lens Shape | Rectangular |
Key Features
- Features dual red and green LEDs in a single rectangular SMT package.
- Operates at a forward voltage of 2.5 V with maximum forward current of 20 mA.
- Provides high brightness with LED luminosity levels of 600 mcd and 800 mcd.
- Wide viewing angle of 100° suitable for visibility in indicator and backlight applications.
- Compact dimensions of 3.0 x 2.5 x 1.4 mm ensure space-saving surface mount installation.
- RoHS compliant and manufactured in China maintaining quality and environmental standards.
Product Description
Kingbright KPBL-3025SURKZGC is a bi-color red and green surface mount LED designed with the standard 1109 package offering efficient illumination for electronic and industrial devices. It operates at a forward voltage of 2.5 V and supports a maximum forward current of 20 mA, ensuring low power consumption suitable for prolonged use.
The LED features a rectangular lens shape with clear finish and compact dimensions of 3 x 2.5 x 1.4 mm, allowing easy integration on PCBs in compact spaces. Its wide viewing angle of 100° provides excellent visibility, making it ideal for use as indicators, backlights, status signals, and displays in electronics and power connectors.
The LED luminance ranges between 600 mcd for red and 800 mcd for green, offering high brightness and clarity. It is packaged on tape and reel to facilitate automated assembly, enhancing production efficiency in manufacturing environments. RoHS compliance ensures it meets environmental safety standards.
Manufactured in China under stringent quality control, this Kingbright bi-color LED is suitable for applications in industrial machinery, consumer electronics, automotive dashboards (non-automotive standard compliant), and other commercial electronics requiring reliable visual indicators.
The product includes 2 LEDs with 4 pins, supporting dual color indication in a single compact surface mount device. This makes it an excellent option for designers and engineers seeking a versatile LED component for multi-color signaling without increasing PCB footprint.
Features dual red and green LEDs in a single rectangular SMT package. Operates at a forward voltage of 2.5 V with maximum forward current of 20 mA. Provides high brightness with LED luminosity levels of 600 mcd and 800 mcd.
Wide viewing angle of 100° suitable for visibility in indicator and backlight applications. Compact dimensions of 3.0 x 2.5 x 1.4 mm ensure space-saving surface mount installation. RoHS compliant and manufactured in China maintaining quality and environmental standards.
Explore more in the Electronics Components > LEDs category at EnvMart for a wide range of LED solutions tailored for industrial, commercial, and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED is 2.5 V.
The maximum forward current for the KPBL-3025SURKZGC is 20 mA.
The red LED has a luminosity level of 600 mcd, while the green LED has a luminosity level of 800 mcd.
This model has a wide viewing angle of 100°.
The dimensions of the KPBL-3025SURKZGC are 3.0 x 2.5 x 1.4 mm.
It is packaged on tape and reel, which facilitates automated assembly.
This LED supports surface mounting.
This model includes 2 LEDs in a single package.
The maximum power dissipation for the KPBL-3025SURKZGC is 75 mW.
Yes, this LED is RoHS compliant, meeting environmental safety standards.
The lens shape of this LED is rectangular.
This LED is suitable for use in indicators, backlights, status signals, and displays in various electronic devices.
