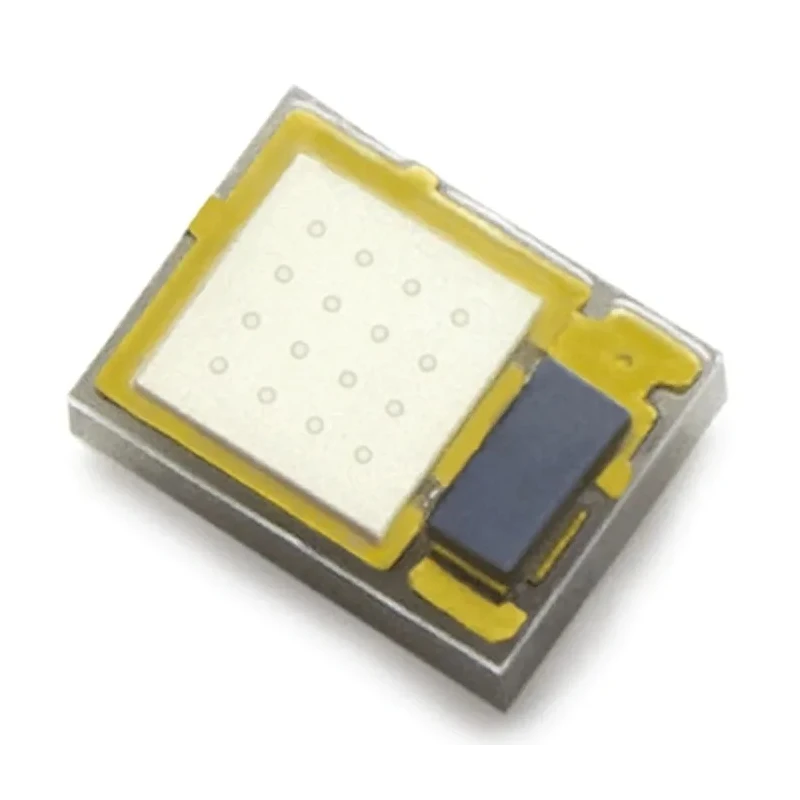

Lumileds 3 V Cyan LED 0705 Surface Mount LUXEON Z LXZ1-PE01
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Lumileds |
| Model | LXZ1-PE01 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | LUXEON Z |
| Maximum forward current | 1000mA |
| Viewing angle | 125 ° |
| Package Type | 0705 |
| Lens Colour | Colourless |
| Standards/Approvals | RoHS |
| LED Colour | Cyan |
| Dominant Wavelength | 505nm |
| Forward Voltage | 3V |
| Number of Pins | 2 |
| Lens Dimensions | 1.3 x 1.7 x 0.66 mm |
| Lens Shape | Round |
| LED Luminous Flux | 82 lm |
| High drive current | 1A (InGaN) and 0.7A (AlInGaP) |
| Enables customisable light sources | linear, rectangular, circular, etc. and therefore smaller/unique luminaire designs |
Key Features
- The LED has a maximum forward current of 1000mA ensuring high performance.
- The forward voltage is 3 volts with a package dimension of 1.3 x 1.7 x 0.66 mm.
- It features a round, colourless lens with a viewing angle of 125 degrees for broad light dispersion.
- The LED luminous flux is rated at 82 lumens delivering bright illumination.
- Designed as part of the LUXEON Z series, it supports customizable linear, rectangular, and circular light sources.
- It is RoHS compliant and produced in Malaysia, guaranteeing quality and regulatory adherence.
- Suitable for entertainment, architectural, and specialty lighting applications requiring high flux density and compact size.
Product Description
Lumileds LXZ1-PE01 is a cutting-edge 3 V Cyan LED in a compact 0705 surface mount package belonging to the LUXEON Z series. This ultra-compact LED measures 1.3 x 1.7 x 0.66 mm with a round and colourless lens offering a wide 125° beam angle, making it highly versatile for intricate lighting designs.
With a maximum forward current of 1000 mA and a luminous flux of 82 lumens, this LED delivers superior brightness and reliability. The design enables mounting up to 250 LEDs per square inch, facilitating high flux densities for innovative lighting arrays.
The LUXEON Z series is ideal for applications such as entertainment and stage lighting, indoor and outdoor architectural illumination, emergency vehicle lighting, remote phosphor setups, and diverse specialty lighting projects seeking custom color and beam control.
This LED features high drive current capabilities (1 A InGaN and 0.7 A AlInGaP variants) and offers superior colour mixing and beam control through multiple optic choices. Its un-encapsulated form factor enables flexibility in linear, rectangular, and circular configurations to create unique, smaller luminaire designs.
Maximum forward current: 1000 mA. Viewing angle: 125° for broad light distribution. Package type: 0705 surface mount with dimensions 1.3 x 1.7 x 0.66 mm. Luminous flux: 82 lumens. Lens shape: round and colourless. RoHS compliant, manufactured in Malaysia.
This LED is designed for industrial use in electronics and lighting manufacturing sectors. It supports innovative light source customization and is suitable for demanding applications in entertainment, architecture, and emergency lighting.
Explore more products from Lumileds and the LUXEON Z series in EnvMart's electronics components section to meet all your lighting needs with high-quality, reliable LEDs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for the Lumileds LXZ1-PE01 is 1000 mA.
This model has a luminous flux rating of 82 lumens, providing bright illumination.
The package dimensions for this surface mount LED are 1.3 x 1.7 x 0.66 mm.
The viewing angle of this LED is 125 degrees, allowing for broad light dispersion.
It features a round, colourless lens that contributes to its light distribution capabilities.
Yes, the Lumileds LXZ1-PE01 is RoHS compliant, ensuring it meets environmental standards.
The forward voltage for this LED is 3 volts.
This model is part of the LUXEON Z series, which is designed for high performance and customization.
It is suitable for entertainment, architectural, and specialty lighting applications that require high flux density.
This LED has 2 pins.
The Lumileds LXZ1-PE01 is packaged in tape and reel format, facilitating easy handling and assembly.
This LED supports customizable light sources in linear, rectangular, and circular configurations, allowing for unique luminaire designs.
